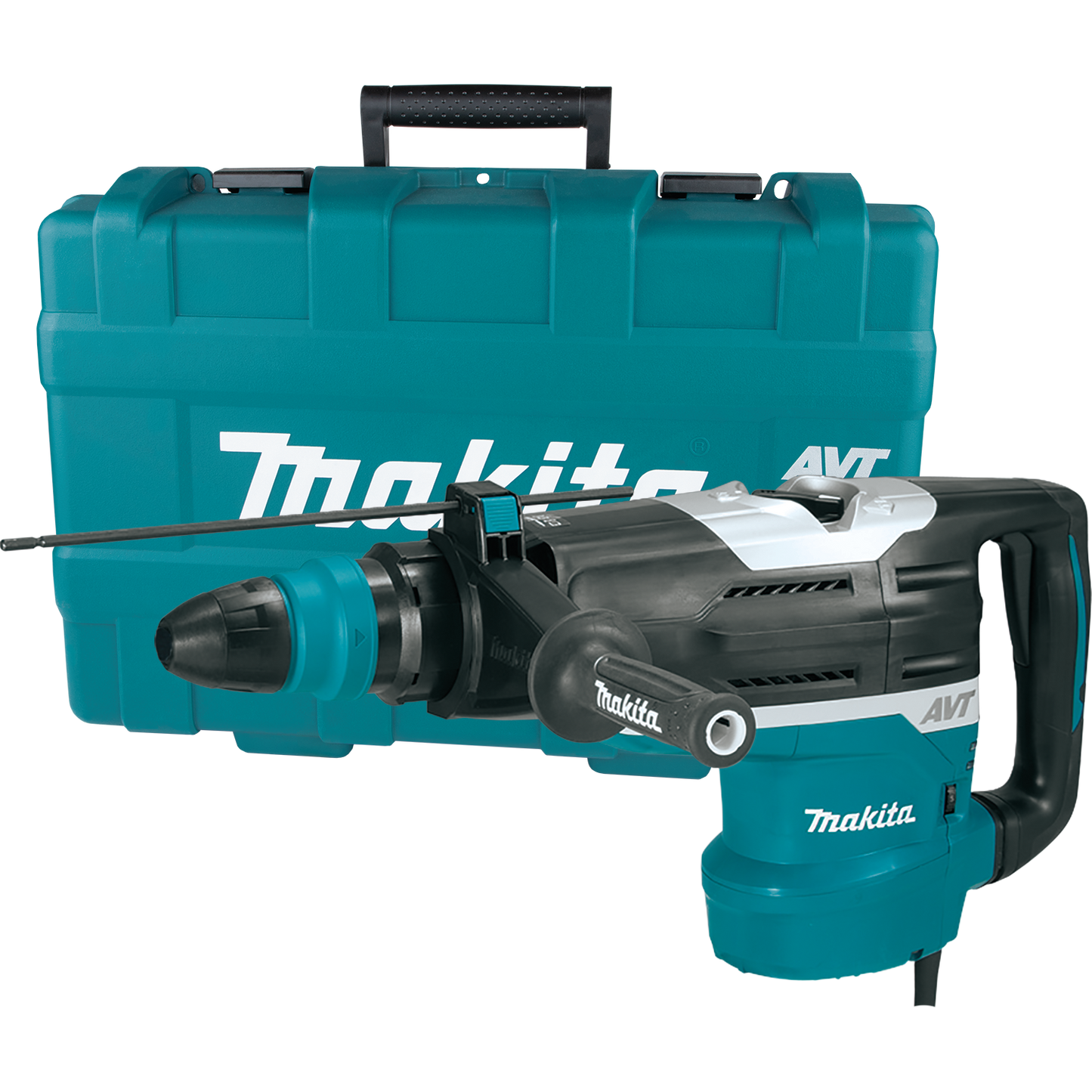

Marteau perforateur SDS-MAX de 2 po pour un enlèvement de matière de précision

Marteau perforateur SDS-MAX de 2 po pour un enlèvement de matière de précision

N° de modèle

HR5212C

|

N° de l'article

10975531

|

UNSPSC #

88381676182

Votre prix

Prix habituel

Finalisez votre compte pour voir vos prix.
Remplir le formulaire.

Prix habituel 0.00 $ Prix promotionnel 0.00 $
En vente Épuisé

Merci de contacter votre conseiller JRV pour plus de détails

Les délais d’expédition sont basés sur les informations disponibles au moment de la commande et sont susceptibles d’être modifiés.

Détails du produit

Cote d'énergie d'impact la plus élevée (21 J) de sa catégorie ! Tige SDS-Max Caractéristiques principales : • Faible niveau de bruit et de vibration pour un confort et une sécurité maximum de l'opérateur • Le système de technologie anti-vibration avancée (avt tm ) intègre un boîtier absorbant les vibrations, un amortisseur de vibrations dynamique actif et un ressort amortisseur pour contrer activement les vibrations de l'outil pour une transmission considérablement réduite à  l'opérateur • Intègre des interrupteurs de déclenchement et de verrouillage pour une utilisation facile dans les applications de forage intermittent et de démolition prolongée • Le limiteur de couple arràªte l'embout en cas de blocage de l'embout pour une sécurité accrue de l'opérateur et une protection accrue de l'outil • La fonction de démarrage progressif augmente progressivement la vitesse pour éliminer les chocs au démarrage • La suppression du moteur à  vide limite les vibrations et la déflexion des embouts au ralenti • Le cadran à  vitesse variable permet à  l'opérateur de régler la vitesse en fonction des matériaux ou de l'application • 24 positions d'embouts angulaires permettent de positionner les burins à  l'angle de fonctionnement optimal • Mandrin coulissant à  une touche pour une installation et un retrait faciles des embouts • Le voyant de service à  LED indique le moment opportun pour changer les balais de charbon • Le voyant d'alimentation à  LED indique l'alimentation électrique active • Conception ergonomique de la poignée en caoutchouc souple pour l'absorption des vibrations et une utilisation confortable Capacités maximales : • Type de foret : Sds-max • Capacités maximales : • Béton (tct) : 2-1/16" (52 mm) • Béton (trépan) : 6-5/16" (160 mm) • Vitesse à  vide : 150 - 310 tr/min • Coups par minute : 1 100 - 2 250 bpm • Énergie d'impact : 21 J (15,5 pi-lb) • Ampères (120 V) : 15,0 A • Niveau de vibration : 9,0 M/s 2 • Niveau sonore : 98 dB(a) • Longueur totale : 23-1/2" (599 mm) • Poids net : 26,2 lb (11,9 kg) Accessoires inclus : • Graisse pour embouts (194683-7) • Poignée latérale de style D (135283-4) • Poignée latérale droite (135629-4) • Chiffon de nettoyage (443122-7) • Jauge de profondeur (331955-1) • Mallette de transport en plastique (142296-8)

Features

  • L.E.D. service light notifies the user approximately 8 hours before the brushes need to be replaced
  • Advanced Anti-Vibration Technology (AVT®) is a synchronized, three-component system that more effectively reduces vibration resulting in a low 5m/s2
  • 2-mode operation for "Chipping Only" or "Hammering with Rotation"
  • Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
  • Electronic Controller is a feature package that provides constant speed control, soft start, soft no-load and variable speed
  • INCLUDES - Side handle, D-handle, depth rod, grease and case
  • L.E.D. light indicates electrical failure or notifies the user when brushes need to be replaced
  • Lock-on or trigger activation in "Chipping Only" mode with a push button start/stop control for more convenient operation
  • Advanced AVT® is an air actuated counterbalance, vibration absorving housing and impact bolt damper spring that more effectively reduces vibration
  • "Soft no-load" function automatically reduces the speed of the motor when idling to help increase tool life and performance
  • Powerful 15 AMP motor delivers 14 ft.lbs. / 19 J. of impact energy
  • PERFORMANCE - Vibration absorbing housing moves independently of the motor and drive mechanism
  • Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
  • Automatic brush cut-off protects commutator from damage for longer tool life
  • Torque limiting clutch engineered to prevent gear damage
  • Advanced AVT® includes an integrated damper spring at the base of the impact bolt engineered to absorb impact vibrations from the drill bit
  • Includes a 16.4 ft. power cord for user convenience
  • CONVENIENCE - Lock-on or trigger activation in "Chipping Only" mode with a push button start/stop control
  • Powerful 15 AMP motor delivers 14 ft.lbs. / 19 J. of impact energy to handle the most demanding applications
  • Soft start suppresses start-up reaction for more precision and better accuracy
  • COMFORT - Air actuated counterbalance actively reduces vibration
  • One-touch sliding chuck for quick bit changes
  • 24 bit angle settings allow the bit to be set at different positions for operating convenience
  • ERGONOMICS - Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations
  • Advanced AVT® includes an air actuated counterbalance that directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the hammer mechanism to effectively reduce vibration
  • L.E.D. power light indicates switch failure or cord damage
  • Advanced AVT® includes a vibration absorbing housing with a spring loaded back handle and housing which moves independently of the motor and hammer mechanism effectively isolating more vibration away from the user
  • Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
  • Variable speed control dial enables user to match the speed to the application for greater versatility

Includes

  • CLOTH F/WIPING OIL (443122-7)
  • Hammer Bit Grease (194683-7)
  • Tool Case
  • SIDE GRIP ASSEMBLY (135629-4)
  • Side Handle (135283-4)
  • Depth Gauge (331955-1)

Prop 65

  • WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, • crystalline silica from bricks and cement and other masonry products, and • arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.

Spécifications

Specifications

Power Type
Corded
Shipping Weight
42 lbs.
Overall Length
23-1/2"
Country of Origin
Japan
Vibration (m/s²)
9
Net Weight
26.2 lbs.
Max. Capacity (concrete drilling)
2"
No Load Speed (variable speed)
130 - 260 RPM
Cord Length (ft)
16.4'
Bit Type
Accepts SDS-MAX
Bind-Up Control
No
Vibration Control
Yes
UPC Code
088381-676182
Impact Energy (Joules)
19 J
Impact Energy (ft.lbs.)
14
Blows Per Minute (variable speed)
1,100 - 2,250 BPM
Max. Capacity (concrete drilling w/ core bit)
6-1/4"
AMPS
15
Optimum Range (concrete drilling)
3/4" - 1-9/16"
