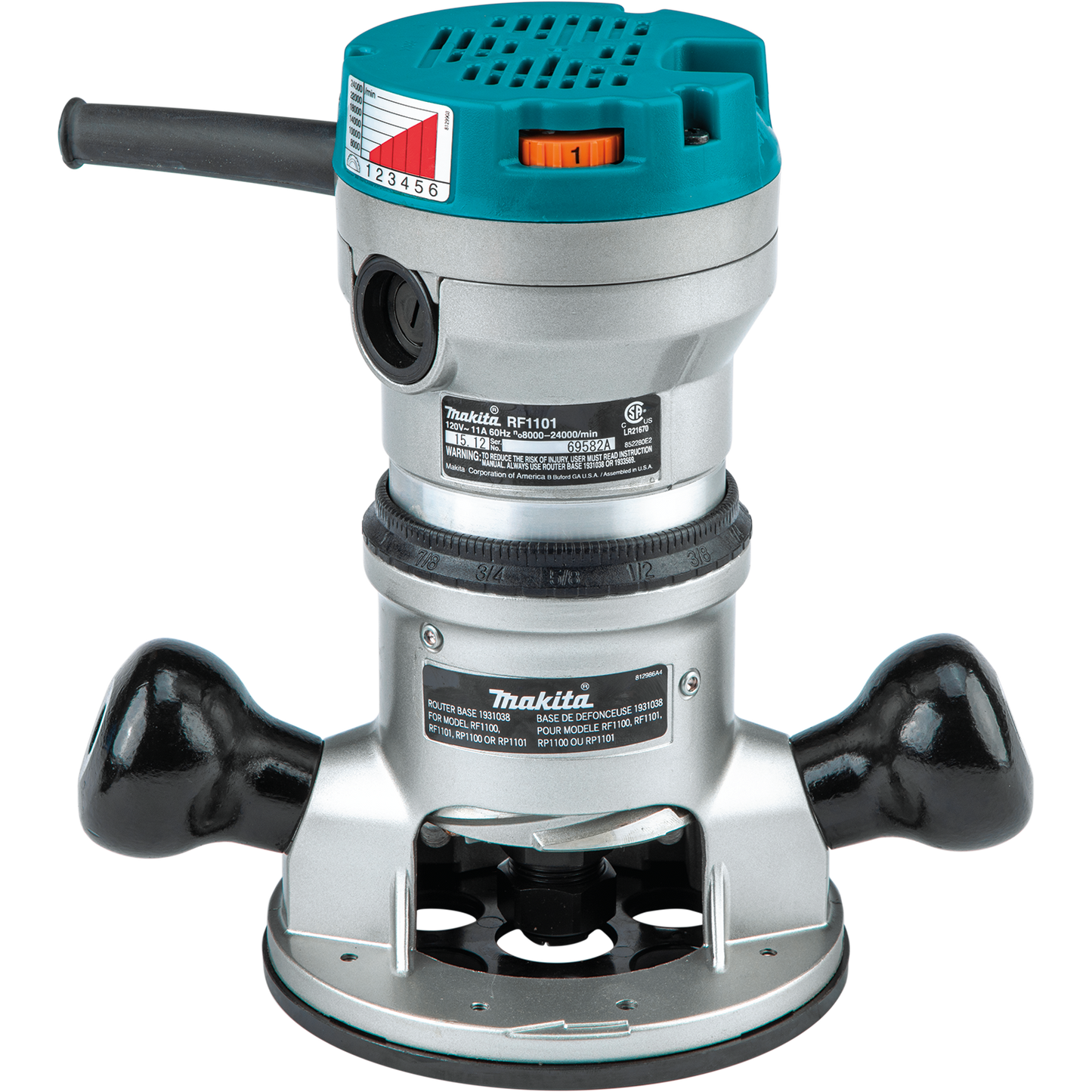

Routeur de 2-1/4 CV pour l'enlèvement de matière de précision

Caractéristiques principales :

• Le contrôle électronique de la vitesse maintient une vitesse constante sous une charge importante

• Le cadran à  vitesse variable ajuste la vitesse du moteur en fonction des matériaux ou de l'application

• La fonction de démarrage progressif augmente progressivement la vitesse pour éliminer les chocs au démarrage

• Conception à  dessus plat pour une stabilité accrue lors du changement d'embouts

• Le verrouillage à  came industriel permet un réglage et un retrait rapides et faciles de la profondeur du moteur

• La sous-base accepte les guides de modèles standard de l'industrie

Capacités maximales :

• Capacités des pinces : 1/4" et 1/2" (6,35 mm et 12,7 mm)

• Vitesse à  vide : 8 000 à  24 000 tr/min

• Ampère (120 V) : 11,0 A

• Niveau de vibration : (indisponible)

• Niveau de bruit : (indisponible)

• Diamètre de la base : 5-3/4" (146 mm)

• Hauteur totale : 8-3/4" (223 mm)

• Poids net : 7,3 lb (3,3 kg)

Accessoires inclus :

• Cône de serrage 1/4' (193214-9)

• Cône de serrage 1/2' (193215-7)

• Deux clés 27 (781031-5)

MFR RF1101

Features

• Sub base accepts industry standard template guides for convenience
• Sub-base accepts industry standard template guides
• Rugged aluminum motor housing with small 3-1/4" diameter for easy handling
• Accepts 1/2" and 1/4" shank bits
• Low noise (81dB) and low vibration for operator comfort
• ACCURACY - Variable speed dial matches the speed to the application; 8,000 - 24,000 RPM
• Variable speed control dial enables user to match the speed to the application
• Electronic speed control maintains constant speed under load
• Bits are installed/removed with two identical size wrenches
• Soft start feature for smooth start-ups
• *Maximum horsepower
• Variable speed control dial to match the speed to the application
• Durable flat top design for stability when changing bits
• EFFICIENCY - Industrial cam-lock lever for fast, easy depth adjustment and removal of motor
• Durable flat top for stability when changing bits
• Large calibrated depth control ring for easy depth adjustment
• INCLUDES - 1/4" collet, 1/2" collet, wrenches; RF1101KIT2 - Includes plunge base
• Externally accessible brushes for greater serviceability
• Industrial cam-lock for fast and easy depth adjustment and removal of motor
• Powerful 11 AMP motor delivers 8,000-24,000 RPM for the most demanding applications
• CONTROL - Electronic speed control maintains constant speed under load; 11 AMP 2-1/4* HP motor (*maximum)
• All-ball bearing construction for longer tool life
• Rugged aluminum motor housing with small 3-1/4" diameter
• VERSATILITY - Sub-base accepts industry standard template guides

Includes

• Wrench 27 (193234-3)
• 1/4" Collet with Nut (193214-9)
• 1/2" Collet (763643-6)
