• 3M™ Scotchlok™ Electrical Insulation Displacement Connector
1 1

The color, size, or style shown in some images may differ from the description. Please carefully check the product description before placing your order.

3M

3M™ Scotchlok™ Electrical Insulation Displacement Connector

3M™ Scotchlok™ Electrical Insulation Displacement Connector

Mfr. Model #

314-POUCH

|

Item #

11342036

Your price

Complete your account to see your prices.
Please fill out the form.

$0.00 $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

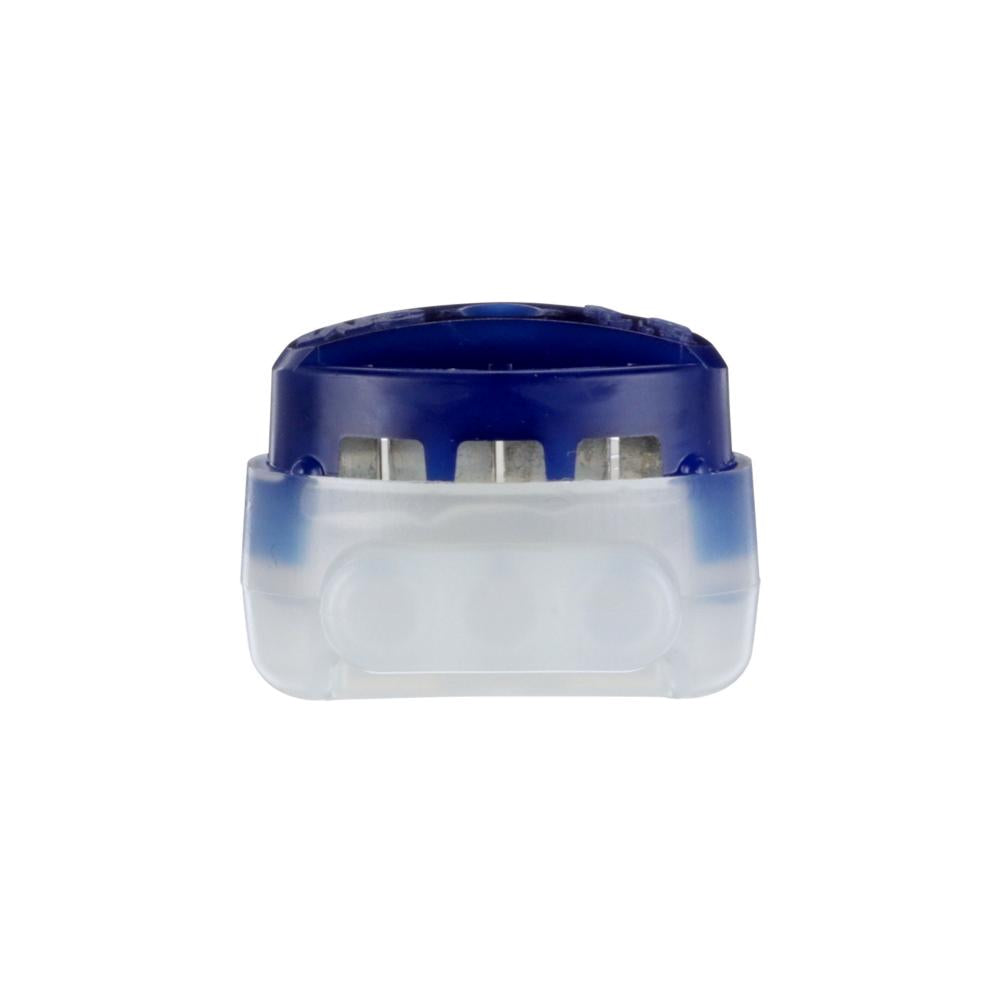

3M™ Scotchlok™ Insulation Displacement Connector 314 provides a dual element connection and moisture resistant seal with a mineral oil based grease. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping, flame retardant, and moisture resistant.

Specifications

Specifications

Tap Maximum Insulation Outer Diameter (Metric)
3.9 mm
Connection Type
Pigtail
Wire Connector Type
IDC Connectors
Minimum Wire Gauge
22 AWG
Water-resistant
Yes
Flame Retardant
Yes
Connector Style
Insulation Displacement
Insulation Outer Diameter (Metric)
3.8 mm
Recommended Crimping Tool
E-9BM and/or Mechanics (slip joint) Pliers
Maximum Wire Gauge
14 AWG
Tap Maximum Insulation Outer Diameter (Imperial)
0.155 in
Run Maximum Insulation Outer Diameter (Imperial)
0.155 in
Insulation Color
cap blue, body white
Max. Number of Cores
3
Voltage Application
Low Voltage
Conductor Size
22 - 14 AWG
Manufacturer Catalog Number
7100166936
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Grease Filling Against Corrosion
Yes
Maximum Recommended Voltage Rating
600 V
Insulation Material
Nylon
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Run Maximum Insulation Outer Diameter (Metric)
3.9 mm
Manufacturing Origin
USA
Material
Flame Retardant Nylon
Color Family (incorporate Product Color)
Blue
Interrupt Free Shifting
No
Wire Gauge
IDC Connectors
Insulation Outer Diameter (Imperial)
0.150 Inch

Packaging

Package Length
6.50000 in
Package Height
8.50000 in
Package Weight
0.5200 LBS
