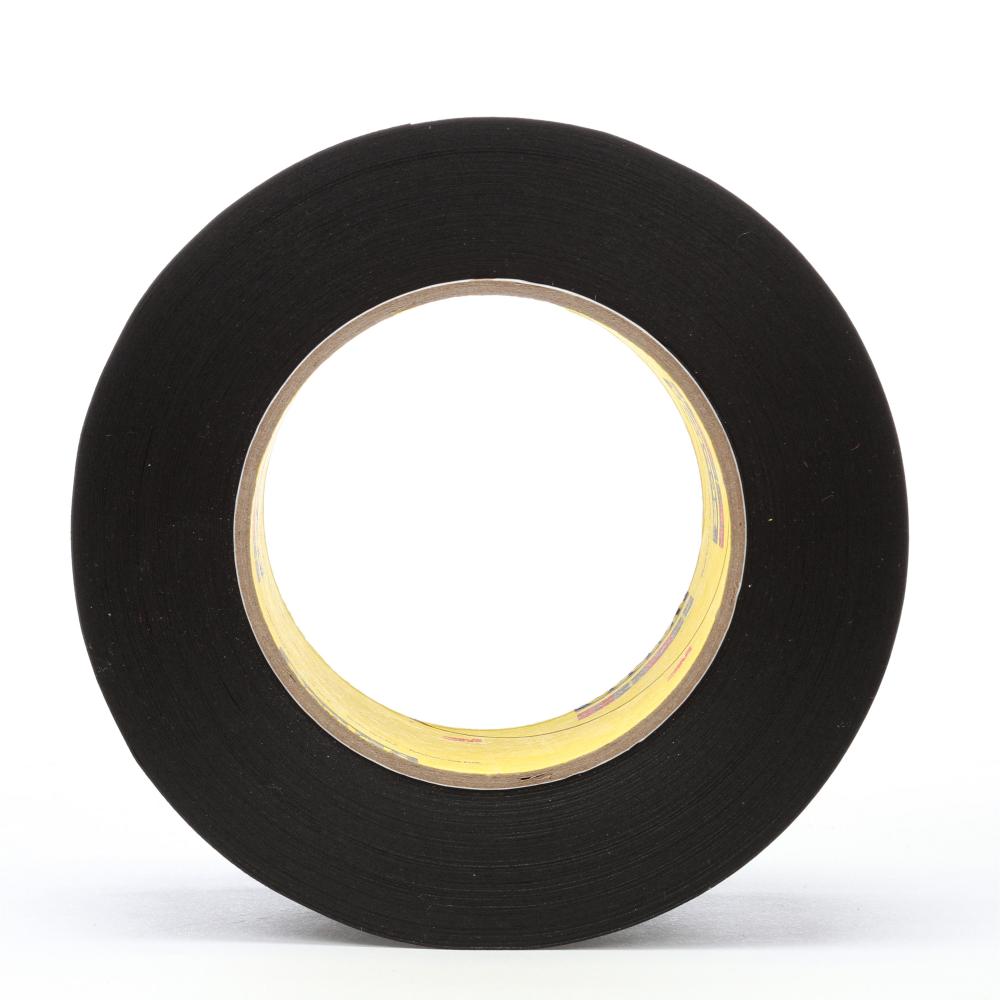

3M™ Vinyl Tape, 472, black, 3.0 in x 36.0 yd x 10.4 mil (7.6 cm x 32.9 m x 0.3 mm)

3M™ Vinyl Tape, 472, black, 3.0 in x 36.0 yd x 10.4 mil (7.6 cm x 32.9 m x 0.3 mm)

Mfr. Model #

10

|

Item #

10988702

|

UNSPSC #

00021200031533

Your price

Regular price

Complete your account to see your prices.
Please fill out the form.

Regular price $0.00 Sale price $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

3M™ Vinyl Tape 472 provides both abrasion resistance and conformability to help solve unique bonding, patching, sealing, and sand blast applications that everyday vinyl tapes just can't handle. Coated with an aggressive rubber adhesive, this black vinyl tape is a heavy duty, abrasion-resistant solution to a variety of difficult, long-term and outdoor applications.3M Vinyl Tape 472 has a thick backing that combines high abrasion resistance with the inherent conformability of a vinyl. Designed with unique stretch properties, this tape conforms to irregular, curved, and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive aggressively adheres to a variety of surfaces and maintains its bond for long periods of time, including up to one year in outdoor applications. This combination of the backing and adhesive properties help to keep the tape securely in place, even in rugged and outdoor conditions. Because of the thicker backing, this tape is ideal for protection in areas where heavy abrasion is anticipated, as well as sand blast and bead blast overspray protection. Dispensable and appropriate for outdoor use.

Features

  • RECOMMENDED APPLICATIONS: Heavy duty protection and abrasion resistance, slicing and patching, outdoor sealing, protecting and marking. Dissimilar metal separation, sealing barrier films and containers, and sand blast and bead blast overspray protection
  • OUTDOOR USE: Can be used in outdoor applications with clean removal from many surfaces up to 6 months. Stays on outdoors for up to a year.
  • CONFORMABLE BACKING: Designed with unique stretch properties, this heavy-duty tape conforms to irregular, curved and convex surfaces will remaining stretched and without lifting after application
  • HEAVY DUTY PROTECTION AND INCREASED ABRASION RESISTANCE: The thick, aggressive backing of the 3M 472 Vinyl Tape bonds to a variety of surfaces for long-term use, even in outdoor applications.
  • For industrial/occupational use only. Not for consumer sale or use.

Specifications

Specifications

Tensile Strength (Metric)
560.0 N/100mm
ETIM Class 8.0
EC000128
Tensile Strength (Imperial)
32.0 lb/in
Shelf Life
547
Shelf Life in Months (From Date of Manufacture)
18.0 Months
Industries
Automotive, General Industrial, MRO, Military and Government, Specialty Vehicle, Transportation
Overall Height (Imperial)
10.4 mil
Adhesion Strength
23.0
Back Side Adhesive Thickness (Imperial)
1.4 mil
Backing Material
Vinyl
Overall Width (Imperial)
3.0 in
Backing Thickness (Imperial)
9.0 mil
Back Side Adhesive Thickness (Metric)
0.04 mm
Country of Origin
United States
Backing (Carrier) Thickness (Imperial)
9.0 mil
Elongation at Break
2.7
Overall Length (Imperial)
36.0 yd
RDS URL (Regulatory Data Sheet)
https://cdmsweb.3m.com/ingredientcommunication/file/Media/t451FwmEsmk=
Backing (Carrier) Material
Vinyl
Total Tape Thickness without Liner (Metric)
0.264 mm
Overall Height (Metric)
0.3 mm
Adhesion Strength (Metric)
25.0 N/100mm
Units per Case
12.0 Roll
Product Color
Black
Maximum Operating Temperature (Fahrenheit)
225.0 Degree
Total Tape Thickness without Liner (Imperial)
10.4 mil
Overall Thickness (Imperial)
10.4 mil
Product Form
Roll
Adhesive Type
Rubber
Overall Length (Metric)
32.9 m
Maximum Operating Temperature (Celsius)
107.0 Degree
Backing Thickness (Metric)
0.23 mm
Backing (Carrier) Thickness (Metric)
0.23 mm
Overall Width (Metric)
7.6 cm
Application
General Use Vinyl
