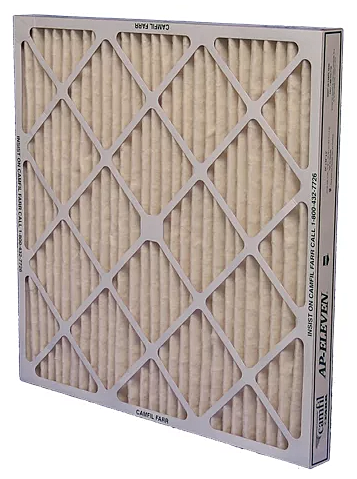

AP-Eleven, High Capacity Pleated Panel Filter, MERV 11, 24" W x 1" D x 24" H

Description:The Camfil AP-Eleven extended surface pleated filter fits units with 1”, 2”, or 4” deep filter tracks.Rated MERV 11 according to ASHRAE Standard 52.2, suitable for various filtration needs.Can reduce HVAC system size, saving mechanical floor space while meeting filtration standards.Functions as a prefilter to remove dust, lint, and staining contaminants, and also filters sub-micron lung-damaging particles.Usable as a standalone filter in special process areas, electrical shops, paint shops, offices, laboratories, electronics shops, drafting areas, conference rooms, and above-average general offices.Designed to provide long service life with low pressure drop and energy consumption.Features:16 pleats per linear foot (in 1” deep model) with radial pleat design for full media usage and longer life.Synthetic fiber blend with unique media loft ensures high efficiency (MERV 11) and high dust-holding capacity.Corrosion-resistant welded wire media grid backing prevents media oscillation and filter failure.High wet-strength beverage board frame provides rigidity and durability; resists bowing or deflection, guaranteed up to 2.0” w.g. pressure drop.Energy Cost Index (ECI) rating of five stars, indicating excellent energy efficiency.Outlasts other MERV 11 pleated panels by 20% or more, resulting in lowest total cost of ownership.Specifications:Filter depths: 1”Efficiency rating: MERV 11 per ASHRAE Standard 52.2.Pleats per linear foot (2” model): 15 pleats.Media type: Synthetic fiber blend with unique loft.Media backing: Corrosion-resistant welded wire grid.Frame material: High wet-strength beverage board.Pressure drop guarantee: Up to 2.0” w.g.Applications: Suitable as prefilter or standalone filter for labs, offices, paint shops, electrical shops, and more.Actual Dimensions: 23.5" x 0.88" x 23.5"Initial Resistance: 0.24"Airflow Capacity (cfm): 1400
