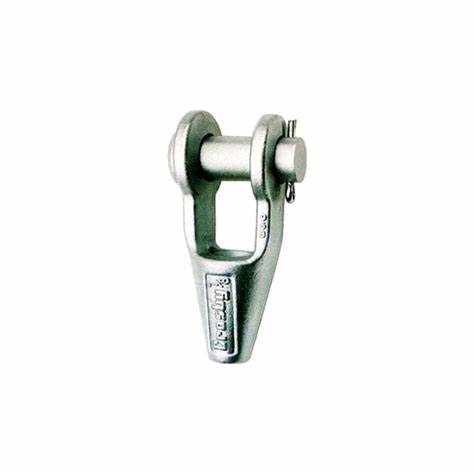

Crosby® G-416 Open Spelter Sockets, Forged Steel, 1-1/4" - 1-3/8" Rope Diameter
Crosby® G-416 Open Spelter Sockets, Forged Steel, 1-1/4" - 1-3/8" Rope Diameter
Mfr. Model #
1039771
|Item #
10030719
Your price
Complete your account to see your prices.
Please fill out the form.
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.
• Forged steel sockets through 1-1/2", cast alloy steel 1-5/8" through 4".
• Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope.
• Ratings are based on recommended use with 6 x 7, 6 x 19 or 6 x 37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope.
• Strand constructed with minimal number of wires (e.g. 1 x 7) requires special consideration that socket basket length be five (5) times the strand diameter or fifty (50) times the wire diameter, whichever is the greater.
• All cast steel sockets 1-5/8" and larger are magnetic particle inspected and ultrasonic inspected. Proof testing available on special order.
• Available with bolt nut and cotter: G-416B.
• Open Grooved Sockets meet the performance requirements of Federal Specification RR-S-550F, Type A, except for those provisions required of the contractor.
• Ultimate Load: 136T
MFR 1039771
