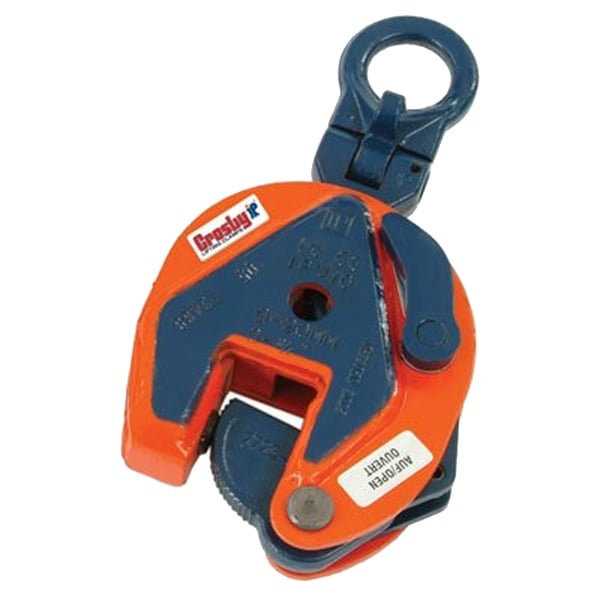

Crosby® IPU10H Vertical Lifting Clamp, 0.5T, 8.50" x 4.53"

• Universal - for lifting in any direction
• Available in capacities of .5 thru 30 metric tons (higher Working Load Limits are
available upon request).
• Wide variety of jaw openings available: 0” to 6.13”.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where
required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• Company name (Crosby IP), logo, Working Load Limit and jaw opening permanently
stamped on body.
• Each product is individually serialized, with the serial number and Proof Load test date
stamped on body. User manual with test certificate is included with each clamp.
• Available in a variety of styles:
• IPU10 - Standard clamp for materials with a surface hardness to 363HV10 (345
HB).
• IPU10J - Larger jaw opening.
• IPU10S - For use with stainless steel material.
• IPU10H - For use with materials with a surface hardness to 472HV10 (450 HB).
• Full 180° turning range for material transfer, turning or moving.
• Lock open, lock closed ability with latch for pretension on material and then release of material.
• For use with materials with a surface hardness to 279HV10. Only 5% minimum WLL is needed.
• Maintenance and repair kits are available.
• Minimum WLL is 5% of maximum WLL for .5t IPU10 only.
• Minimum WLL is 10% of maximum WLL for all other IPU10, IPU10J, IPU10S, IPU10H clamps.

MFR 2702175
