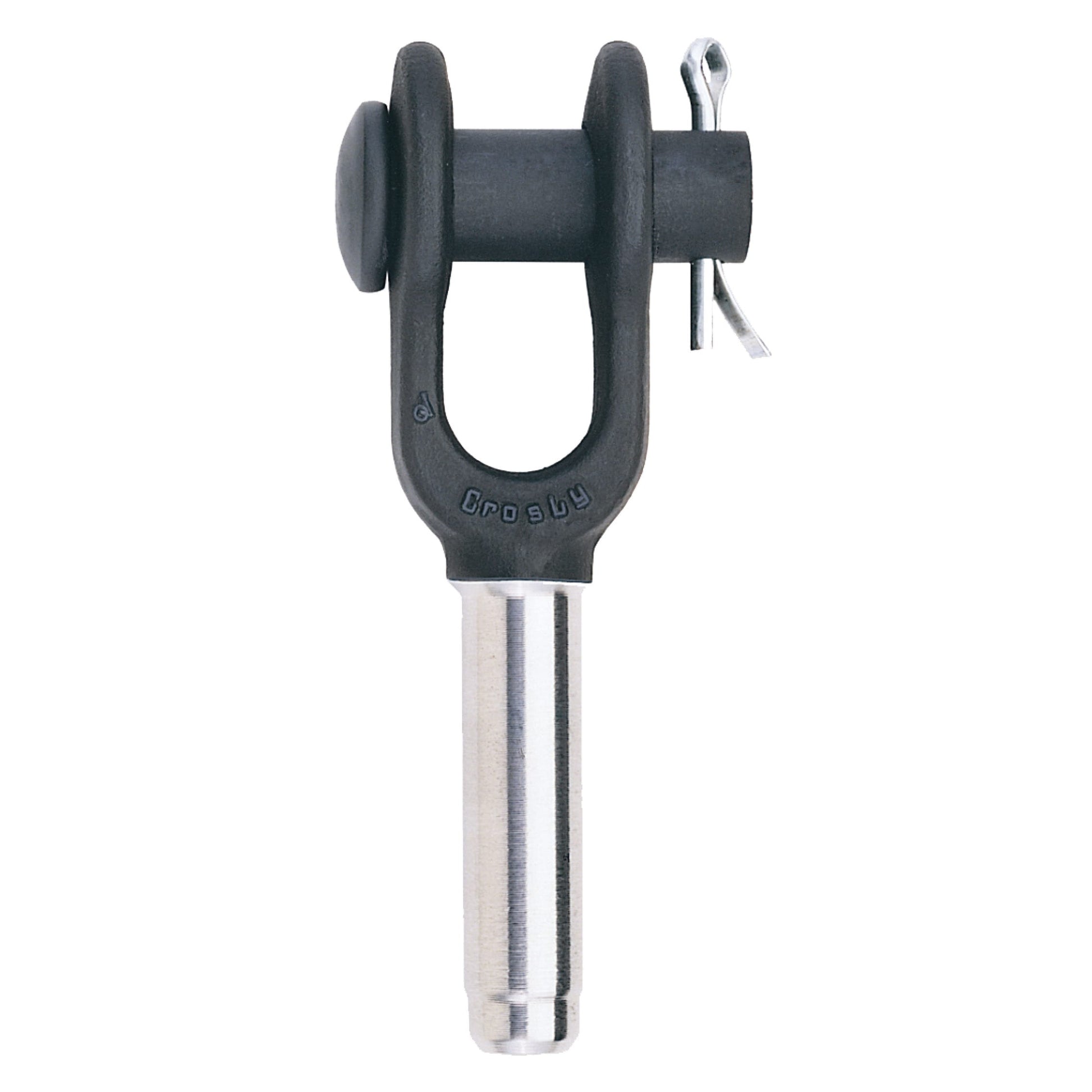

Crosby® S-501 Open Swage Sockets, Forged Carbon Steel, 5/16"

Crosby® S-501 Open Swage Sockets, Forged Carbon Steel, 5/16"

Mfr. Model #

1039049

|

Item #

10656087

Your price

Complete your account to see your prices.
Please fill out the form.

$0.00 $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

• Forged from special bar quality carbon steel, suitable for cold forming.
• Swage socket terminations have an efficiency rating of 100% based on the catalog strength of wire rope.
• Hardness controlled by spheroidize annealing.
• Stamp for identification after swaging without concern for fractures (as per directions in Wire Rope End Terminations User’s Manual).
• Swage sockets incorporate a reduced machined area of the shank which is equivalent to the proper 'after swage' dimension. Before swaging, this provides for an obvious visual difference in the shank diameter. After swaging, a uniform shank diameter is created allowing for a QUIC-CHECK® and permanent visual inspection opportunity.
• S-501 Swage Sockets are recommended for use with 6 x 19 or 6 x 37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope.
• In accordance with ASME B30.9, all slings terminated with swage sockets shall be proof loaded.
• Ultimate Load: 5.4T
