Crosby Canada

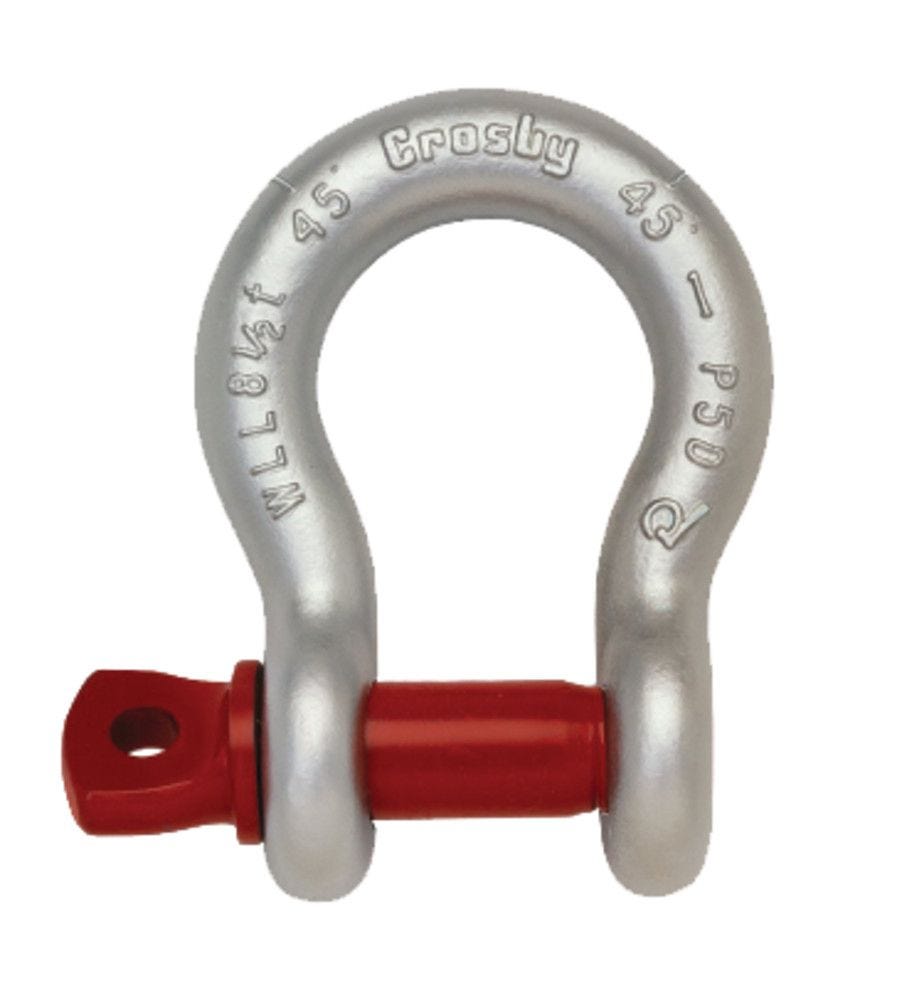

Anchor shackle G209 1-1/2"(17 Ton)
Anchor shackle G209 1-1/2"(17 Ton)
Mfr. Model #
1018614
|Item #
10030243
Your price
Complete your account to see your prices.
Please fill out the form.
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.
Product information
Anchor shackle G209 1-1/2", work load limit 17 tonnes, forged, quenched and tempered, with alloy pin. Hot-dip galvanized. Approved for use at -40°F (-40°C) à 400°F (204°C). Meet or exceed all requirements of ASME B30.31
MFR 1018614
Features
- Made in the U.S.A.
- Meets or exceeds all requirements of ASME B30.26
- Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit
- Closed die forged carbon bow - assures clear "raised" lettering, superior grain flow, and consistent dimensional accuracy, with alloy screw pin
- Hot dip galvanized for corrosion protection and unmatched durability, even in harsh conditions
- Design Factor of 6 to 1
- Quenched and Tempered, resulting in a tough material that reduces the risk of brittle, catastrophic failure, producing a shackle bow that will deform if overloading occurs, giving warning before ultimate failure
- Approved for use at -40° C (-40° F) to 204° C (400° F)
