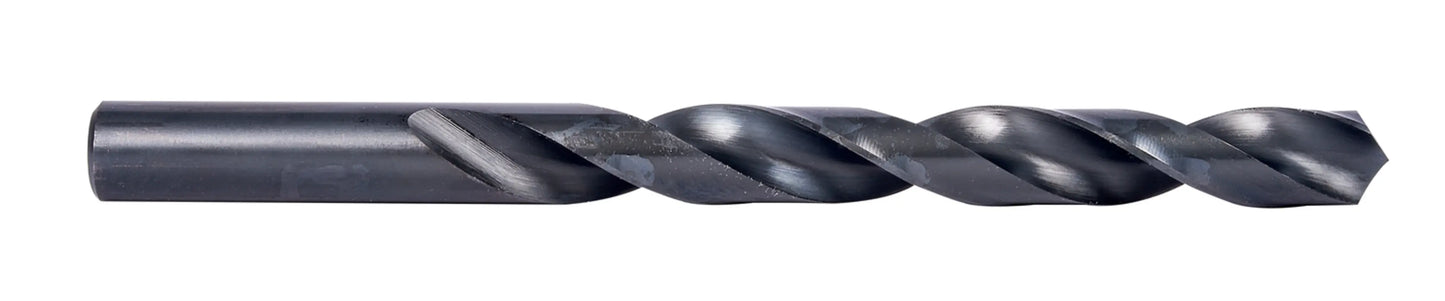

118° Jobber Drill, 15/32", Straight Shank, HSS, Steam Tempered, ANSI
118° Jobber Drill, 15/32", Straight Shank, HSS, Steam Tempered, ANSI
Mfr. Model #
5998690
|Item #
10017878
Your price
Complete your account to see your prices.
Please fill out the form.
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.
Description:Jobber length drill with straight shank, diameter 0.4688" (15/32) with an overall length of 5.3/4" and flute length of 4.5/16" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast ironFeature:Steam Tempered (Steam Oxide) Surface TreatmentHigh Speed Steel Tool MaterialANSI – Tap Standards4×D Usable Tool Depth to Diameter RatioDrill Point 118°Cylindrical Shank / Straight ShankRight Hand Rotation / CuttingSpecifications:Product name: R1015/32Ordering code ANSI: R1015/32EAN number: 086071100306Connection diameter - inch (DCON MS): 0.4688 inchCutting diameter - fractional inch (DC): 15/32Cutting diameter - inch (DC): 0.4688 inchLength chip flute - fractional inch (LCF): 4.5/16Length chip flute - inch (LCF): 4.3125 inchOverall length - fractional inch (OAL): 5.3/4Overall length - inch (OAL): 5.75 inchISO: R1015/32ANSI: R1015/32Brand Name: PrecisionNet weight - grams: 84Gross weight - grams: 84EDP number: 010030
MFR 5998690
