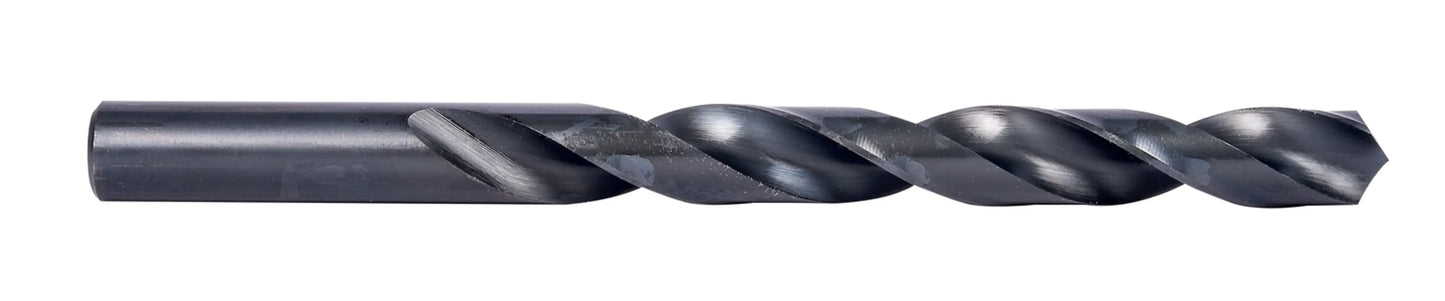

118° Jobber Drill, 17/64", Straight Shank, HSS, Steam Tempered, ANSI
118° Jobber Drill, 17/64", Straight Shank, HSS, Steam Tempered, ANSI
Mfr. Model #
5998699
|Item #
10017882
Your price
Complete your account to see your prices.
Please fill out the form.
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.
Description:Jobber length drill with straight shank, diameter 0.2656" (17/64) with an overall length of 4.1/8" and flute length of 2.7/8" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast ironFeatures:Steam Tempered (Steam Oxide) Surface TreatmentHigh Speed Steel Tool MaterialANSI – Tap Standards4×D Usable Tool Depth to Diameter RatioDrill Point 118°Cylindrical Shank / Straight ShankRight Hand Rotation / CuttingSpecifications:Product name: R1017/64Ordering code ANSI: R1017/64EAN number: 086071100177Connection diameter - inch (DCON MS): 0.2656 inchCutting diameter - fractional inch (DC): 17/64Cutting diameter - inch (DC): 0.2656 inchLength chip flute - fractional inch (LCF): 2.7/8Length chip flute - inch (LCF): 2.875 inchOverall length - fractional inch (OAL): 4.1/8Overall length - inch (OAL): 4.125 inchISO: R1017/64ANSI: R1017/64Brand Name: PrecisionNet weight - grams: 20Gross weight - grams: 21.2EDP number: 010017
MFR 5998699
