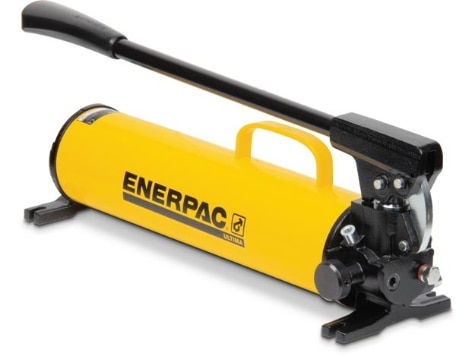

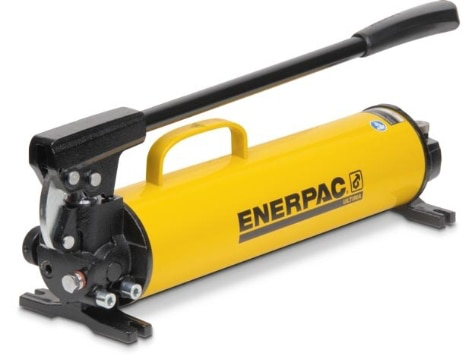

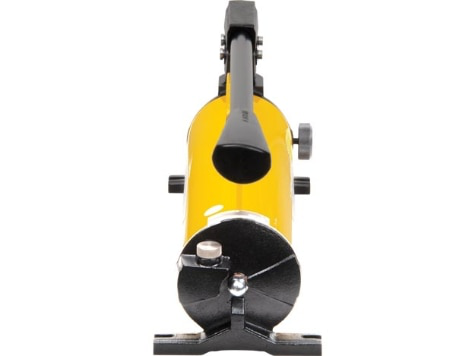

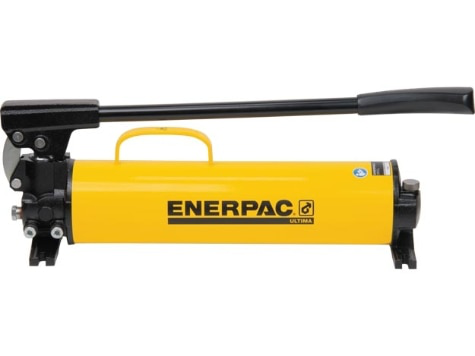

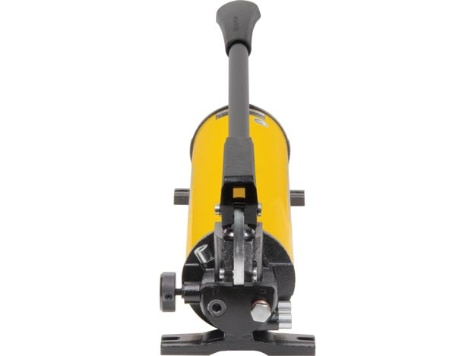

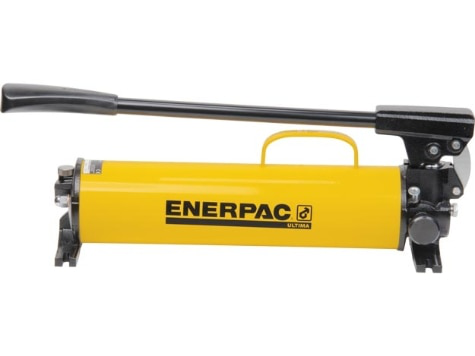

P80, Two Speed, ULTIMA Steel Hydraulic Hand Pump, 134 in³ Usable Oil

Description:Ultima Steel Hand Pumps are durable, portable, and highly efficient. Each model in the series features an all-steel construction, a chrome plated plunger, and a wiper system for long-lasting performance.All except the P39 are 2 stage pumps, which reduces the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal for applications when high flow is needed at the first stage, (such as when advancing a cylinder to the point of load contact). The pump switches automatically to the second stage which is the low flow high-pressure stage.With a choice of oil capacities up to 453 in3 (7423 cm3), you will find Ultima Steel Hand Pumps that can handle multiple cylinder hook-ups, including models to suit either single-acting and double-acting cylinders.Features:Reduced handle effort and ergonomic grip for less operator fatigueVent free reservoir eliminates spillsQuick grip handle allows for easy transportIntegral reservoir over-pressurization protectionSpecifications:Maximum Operating Pressure (psi): 10,000Pressure Rating (psi) 1st Stage: 500Pressure Rating (psi) 2nd Stage: 10,000Cylinder Compatability: Single-actingPump Type: Two SpeedReservoir Capacity (in3): 134Usable Oil Capacity (in3): 134Maximum Flow at Rated Pressure: .15 in3/strokeOil Displacement per Stroke (in3) 1st Stage: 1Oil Displacement per Stroke (in3) 2nd Stage: 0.15Maximum Handle Effort (lbs): 77Piston Stroke (in): 1Valve Operation: ManualPower Source: ManualWeight (lbs): 23.6
