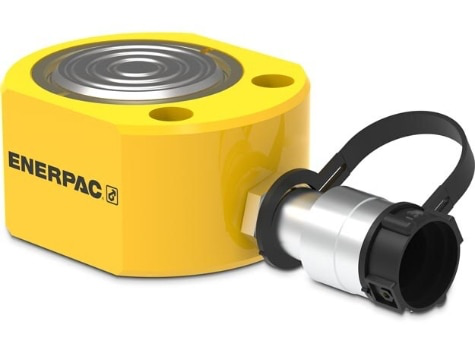

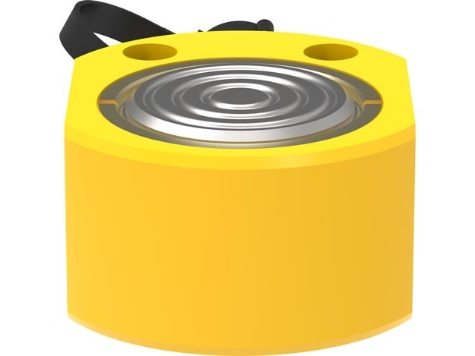

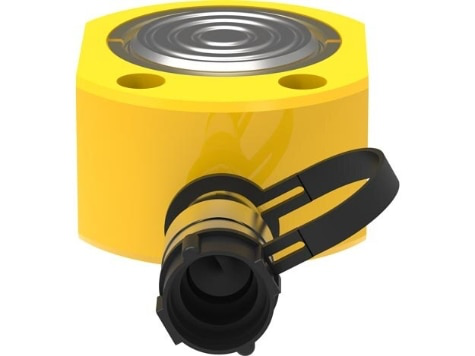

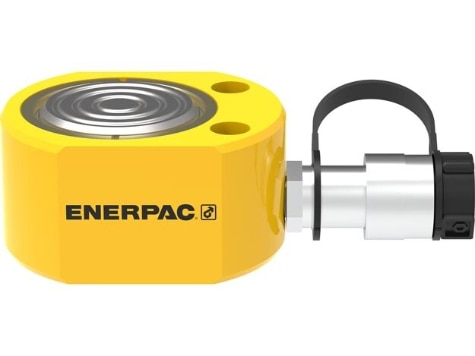

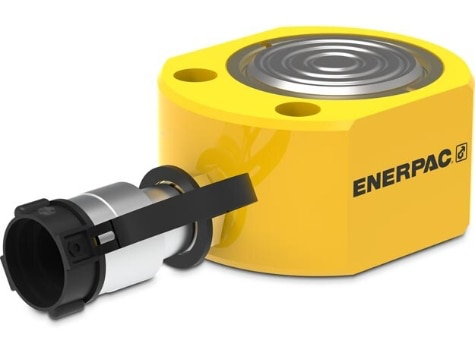

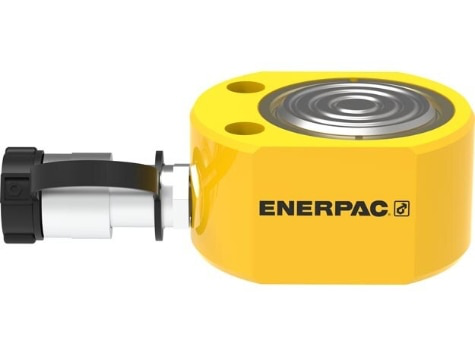

RSM300, 32.4 ton Capacity, .50 in Stroke, Low Height Hydraulic Cylinder

Description:RSM-Series Low Profile Hydraulic Cylinders provide superior durability, safety, and quality in a compact and convenient format. They’re the perfect choice for general lifting and production applications where space is limited. A low collapsed height, short stroke, and flat sides enable safety and stability in both vertical and horizontal orientations. RSM-Series Cylinders are a popular choice. Not only for general lifting, but also for production applications. Two through mounting holes in each cylinder make it easy to clamp onto machinery and other fixtures. Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RSM cylinders are different and include a powerful return spring, which is faster, convenient, and more productive. Features:Compact, flat design for use where other cylinders will not fitHandles for easy carryingMounting holes permit easy fixturingBaked enamel finish for increased corrosion resistanceCR400 coupler and dust cap includedHard chrome plated high-quality steel plungersGrooved plunger ends require no saddleSingle-acting spring returnRSM750, RSM1000 and RSM1500 have handles for easy carryingSpecifications:Maximum Operating Pressure (psi): 10,000Capacity Class (tonnage): 30Maximum Cylinder Capacity Advance (short tons): 32.4Stroke (in): 0.5Collapsed Height A (in): 2.31Extended Height B (in): 2.81Return Type: Single-Acting, Spring ReturnPlunger Type: SolidMaterial: SteelCylinder Effective Area Advance (in2): 6.49Oil Capacity Advance (in3): 3.25Surface Treatment: PaintCoupler: CR400 CouplerWeight (lbs): 10
