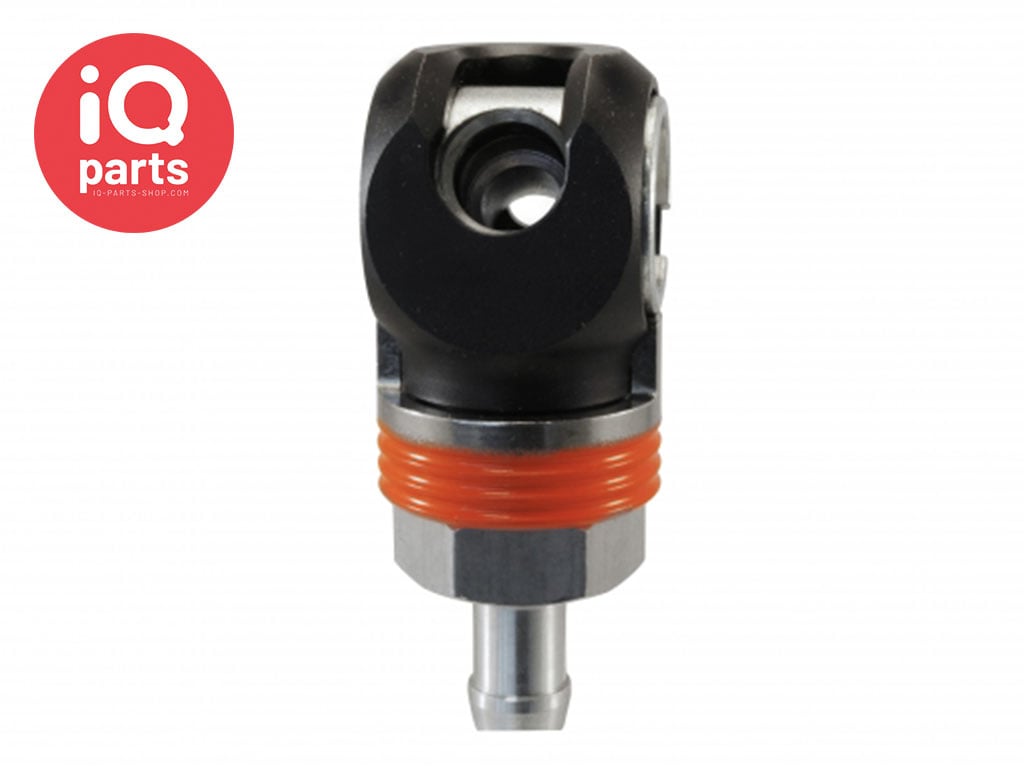

Safety Swing Coupling Hose stem SC Series H, 1/2in

RTC (formerly Oetiker) Safety Swing Couplings Hose stem SC Series H DN11, always connect and disconnect by kinking without danger
With full flow. No force required or loss of pressure in the system. Just a turn and the vent ensures that the hose is ventilated - thus rendering it harmless.
RTC Swing Couplings SC are available in nominal sizes DN6 to DN11 and in different models. They are compatible with most popular plug systems. The many different types and models and a wide choice of seals and lubricants means that RTC Couplings are suitable for numerous applications throughout industry.

Durability, reliability, simple and safe handling are features of all RTC Swing Couplings. RTC Swing Couplings fulfil all the requirements of current quality standards and have also been awarded a type examination certificate from Swiss Accident Insurance Institute SUVA

Features:
Full flow, no restrictions in the compressed air path
Optimum flow rate: More air and power on the tool
Safe disconnection in accordance with EN983 and ARBO
Ergonomic design: Easy to connect under pressure
Plug nipples permanently burr-free due to the use of hardened material
No leakage due to 3-fold sealing
Unwanted disconnection not possible
Economical to purchase and use
Compact dimensions
ISO-6150-B profile DN 11, interchangeable with other brands
Also suitable for liquids, even with a somewhat higher viscosity
Easy to clean due to the free passage

Specifications

DN 11 - ISO B profile
Temperature range: -20 ° to + 100 ° C with NBR seals
With Viton seals up to 200 ° C (option)
Operating pressure: 0-25 bar
Connection and disconnection up to 15 bar
Suitable for vacuum up to 0.1 bar
Coupling housing: Steel, veniferated
Drum: Hardened Steel, nickel plated
Locking ring: Steel, nickel plated, coated.
Threaded connection piece: Steel, nickel-plated
Connection piece hose tail: Aluminum
Weight with 13 mm hose tail:? gram
Plug-in nipples: Hardened steel
Option: Plastic protective cap for scratch-sensitive applications
Option: NPT thread

Applications:

Compressed air
Gasses
Cold water
Liquids
