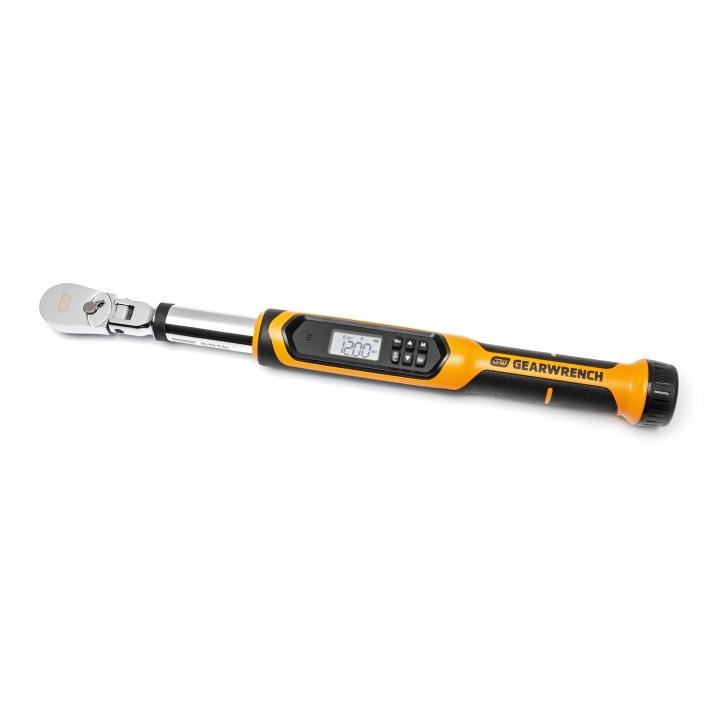

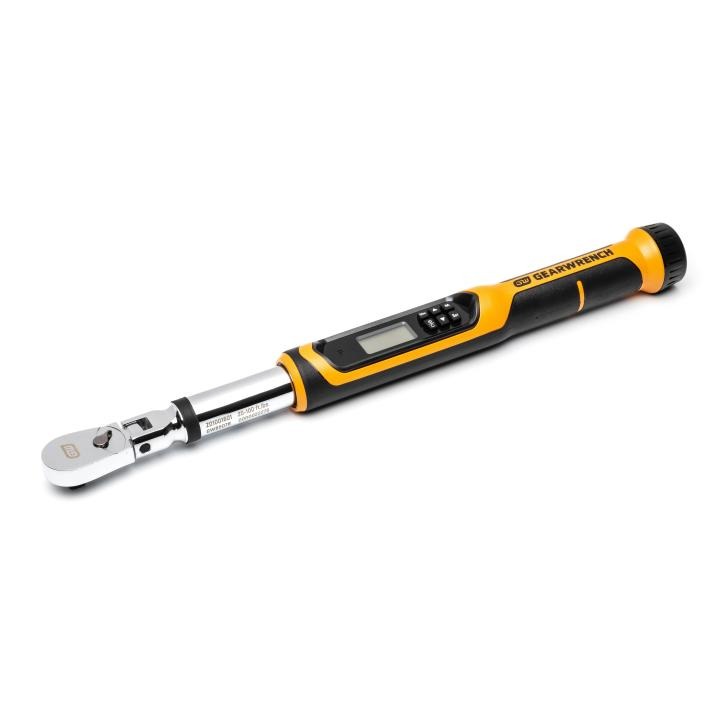

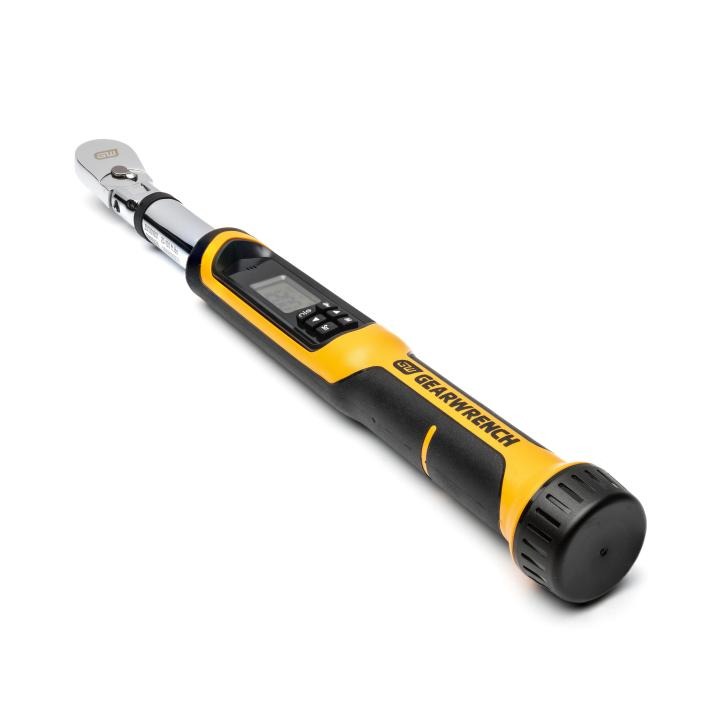

Gearwrench, 3/8" Flex Head Electronic Torque Wrench with Angle 10-100 ft/lb

The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.Features
+/-2% CW and +/-3% CCW Torque Accuracy between 20% and 100% of wrench scale. +/-1% Angle Accuracy

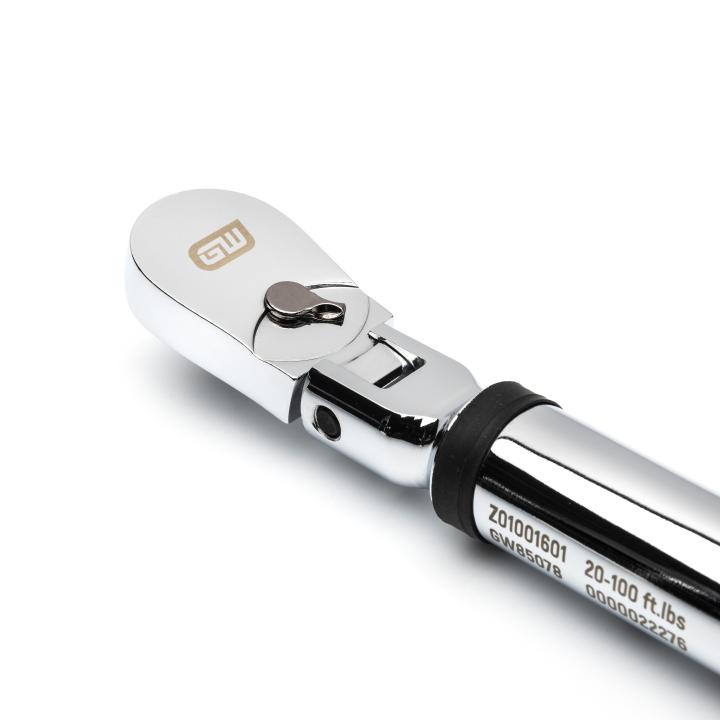

72-tooth thin-head flex ratchet provides 5° swing arc for improved access in tight spaces

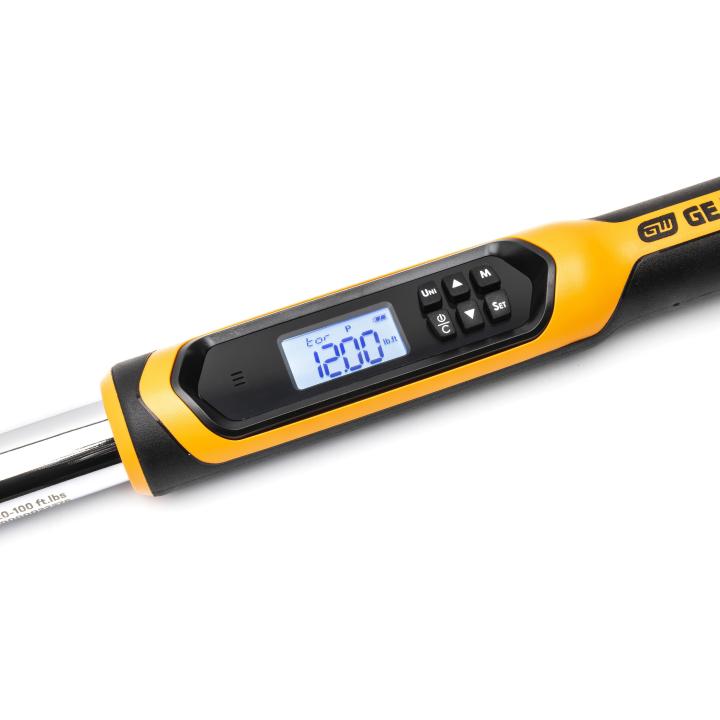

Digitally tracks torque and angle measurements. Handle vibrates, beeps, and LCD screen flashes as target torque is achieved
3 function modes feature peak torque, angle, and peak angle for additional versatility
5 torque measurement units provide a readout in ft-lb, in-lb, Nm, Kg-m, and Kg-cm
10 available preset torque settings allow you to quickly access frequently repeated applications
Dual durometer handle provides secure grip in tough conditions
Requires 2 AA batteries (not included)
Includes a blow molded case
Meets or exceeds ASME B107.28M standards and specifications
1 year limited warranty; calibration accuracy warrantied for 90 days
Read Less
Specifications
Prop 65 :
WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Head Thickness :
1 in
Knurled :
Yes
Flexible :
Yes
Size :
5° - 999° Angle
Packaging :
Boxed
Weight (Catalog) :
2.730 lb
Head Length :
2 in
Finish :
Full Polish Chrome
Overall Height :
1.75 in
UPC :
099575850783
Overall Width :
1.75 in
Batteries Included :
No
ASME Specification :
B107.28MB107.300
Rechargeable :
No
Minimum Torque (Primary Scale) :
10 ft/lb
Tether Ready :
No
Torque Range In. Lbs. :
120 - 1200 in/lb
Maximum Torque (Primary Scale) :
100 ft/lb
Battery Type :
AA
Minimum Torque (Alt Scale) :
13.5 Nm
Maximum Torque (Alt Scale) :
135 Nm
Torque Range cm-kg :
138 - 1380 kg/cm
Torque Accuracy (20-100% of Full Range) :
+/-2% Clockwise
Certified :
No
Head Thickness Less Tang :
0.5 in
Copy Point 11 :
1 year limited warranty; calibration accuracy warrantied for 90 days
Primary Scale Increments :
0.1 ft/lb
Alt Scale Increments :
0.1 Nm
Type :
Electronic
Overall Length :
16.75 in
Head Width :
1.25 in
Warranty :
90 Days Calibration/1 Year on Parts
Drive Tang Size :
3/8 in
Tooth Count :
72
Included Storage :
Blow Mold Case
Material :
Alloy Steel

MFR 85078
