Cle-Line, Plug Chamfer Spiral Point Tap, HSS, 5/16-18NC H3 2FL GP
Cle-Line, Plug Chamfer Spiral Point Tap, HSS, 5/16-18NC H3 2FL GP
Mfr. Model #
C62160
|Item #
10428186
Your price
Complete your account to see your prices.
Please fill out the form.
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.

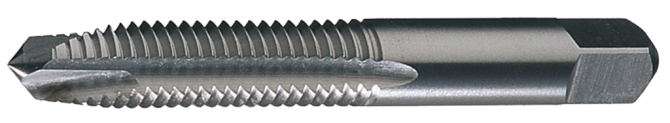

The Cle-Line Plug Chamfer Spiral Point Tap, style #0411, is a high-speed steel (HSS) machine tap designed for threading 5/16"-18 UNC threads. It has an overall length of 2.7188 inches (69.06 mm) and a thread length of 1.1250 inches (28.57 mm). This tap is ideal for threading in cast iron, non-ferrous metals (like aluminum), and steel, making it suitable for various general-purpose applications.
The spiral point design facilitates efficient chip removal, particularly in through-hole applications, while the plug chamfer ensures a smooth cutting process. With a bright surface finish and ground threads, this tap provides high precision and durability. It features two straight flutes, a right-hand cutting direction, and a depth of cut up to 2xD.
The shank is configured as straight with a square end for secure tool holding, measuring 0.3180 inches (8.08 mm) in diameter, with a square width of 0.2380 inches (6.05 mm) and a square length of 0.3750 inches (9.52 mm). This standard construction tap is built for efficiency and reliability in a variety of threading tasks.
MFR C62160
