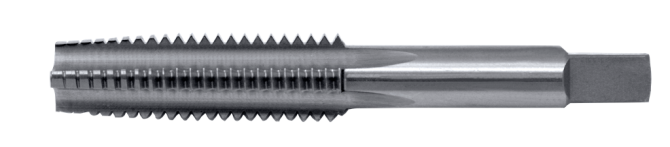

Cle-Line, Taper Chamfer Hand Tap, HSS, #10-24NC H3 4FL GP

The Cle-Line #10-24NC Taper Chamfer Hand Tap (Style #0401, Item #C62017) is precision-engineered from high-speed steel (HSS) to deliver exceptional performance and durability. Designed for thread cutting in materials such as cast iron, non-ferrous metals like aluminum, and steel, this tap ensures reliable operation across a range of applications.

This hand tap features a #10-24 UNC thread size with a pitch of 24, ideal for creating precise internal threads. Its taper chamfer design provides a smooth cutting action, reducing the torque required for operation and ensuring efficient threading. The bright surface finish enhances chip flow and minimizes material buildup during use.

With an overall length of 2.375" (60.32mm) and a thread length of 0.875" (22.22mm), the tap is compact yet versatile, making it suitable for both shallow and moderately deep threads. The straight flute design and 4-flute configuration facilitate optimal chip removal, while the right-hand cut ensures compatibility with standard threading operations.

The straight shank with a square end enhances grip and stability in tap wrenches or other tooling setups, with dimensions tailored for precision: a shank size of 0.194" (4.93mm), a square width of 0.152" (3.86mm), and a square length of 0.250" (6.35mm). This tap is constructed to handle depths of up to 1.5xD, making it a versatile choice for professional threading needs.

MFR C62017
