Cle-Line, Taper, Plug and Bottoming Hand Tap Set, HSS, 0404 10-32UNF HS

Cle-Line, Taper, Plug and Bottoming Hand Tap Set, HSS, 0404 10-32UNF HS

Mfr. Model #

C62024

|

Item #

10428187

Your price

Complete your account to see your prices.
Please fill out the form.

$0.00 $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

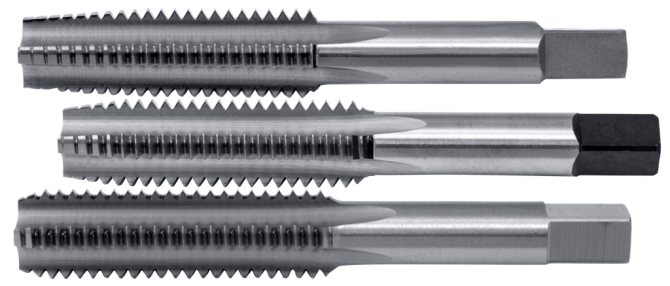

The Cle-Line Taper, Plug, and Bottoming Hand Tap Set, style #0404, offers a versatile solution for threading #10-32 UNF threads. Made from high-speed steel (HSS), this set includes three taps—taper, plug, and bottoming—allowing for precise threading in various materials and scenarios. With a bright surface finish and ground threads, these taps provide exceptional accuracy and durability.

Each tap features a straight flute design, a 0.8750-inch (22.22 mm) thread length, and an overall length of 2.3750 inches (60.32 mm). The set is designed with a right-hand cutting direction, making it suitable for threading applications in steel, cast iron, and non-ferrous metals. The taper, plug, and bottoming chamfers ensure optimal threading performance across different hole types.

The taps are configured with a straight shank and square end for secure handling. The shank measures 0.1940 inches (4.93 mm) in diameter, with a square width of 0.1520 inches (3.86 mm) and a square length of 0.2500 inches (6.35 mm). Packaged in a durable Rose Plastic® UniBox case, this 3-piece set ensures organization and protection during transport and storage, making it an essential addition to any threading toolkit.
