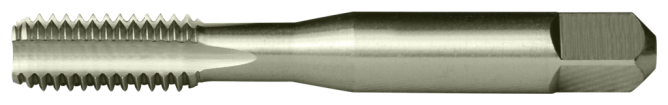

Cleveland, Bottoming Chamfer General Purpose Hand Tap, Bright, HSS, 8-36 NF GH2 4F 1003

The Cleveland Bottoming Chamfer General Purpose Hand Tap, style 1003, is a high-quality tool designed for efficient and precise threading. Made from high-speed steel (HSS), this hand tap offers excellent durability and performance. The bright surface condition ensures a smooth and clean finish, reducing friction and heat buildup during threading.

This hand tap features a thread size of #8-36 UNF with a diameter of 0.1640". The overall length is 2.1300" (54.10mm), and the thread length is 0.7500" (19.05mm). The straight flute type and right-hand cut design provide smooth and accurate threading. The bottoming chamfer ensures clean and precise threads, making it ideal for threading to the bottom of blind holes.

The straight shank configuration with a square end feature allows for secure and stable attachment to the tap handle. The shank size is 0.1680" (4.27mm) with a square width of 0.1310" (3.33mm) and a square length of 0.2500" (6.35mm). This general-purpose hand tap is suitable for a wide range of applications, including cast iron, stainless steel, non-ferrous materials (such as aluminum), and steel. Whether you are working on metal, wood, or plastic, the Cleveland Bottoming Chamfer General Purpose Hand Tap is a reliable choice for all your threading needs.
