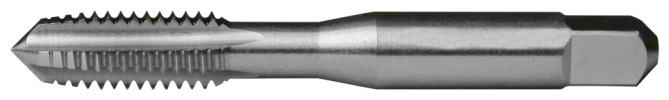

Cleveland, Plug Chamfer General Purpose Hand Tap, HSS, 1/2-13 NC GH3 4F PLG 1002/902
Cleveland, Plug Chamfer General Purpose Hand Tap, HSS, 1/2-13 NC GH3 4F PLG 1002/902
Mfr. Model #
C54727
|Item #
10005873
Your price
Complete your account to see your prices.
Please fill out the form.
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.
• Brand Name: Cleveland
• Style #: 1002
• Item #: C54727
• Set: No
• Tool Size: 1/2"-13 UNC
• Diameter: 0.5000"
• Overall Length: 3.3800"
• Overall Length (Metric): 85.85mm
Thread:
• Tap Limit: H3
• Thread Tolerance: 2B
• Thread Form: UNC
• Thread Pitch: 13
• Thread Size: 1/2"
• Thread Creation: Thread Cutting
• Tap Interrupted Thread: No
• Thread Length (Metric): 42.16mm
• Thread Length: 1.6600"
Specifications:
• Surface Condition: Bright
• Measurement System: Imperial
• Material: HSS
• Tap Type: Hand Tap
• Tap Style: Straight Flute Hand Tap
• Tap Construction: Standard
• Tap Spiral Point: No
• Tap Blank Construction: USCTI Table 302
• Tap Ground Threads: Yes
• Tap Chamfer: Plug
• Tap Truncated Threads: No
• Flute Type: Straight
• Number of Flutes: 4
• Hand of Cut: Right
Shank:
• Shank Configuration: Straight w/ Square
• Shank End Feature: Square
• Shank Size: 0.3670"
• Shank Size (Metric): 9.32mm
• Shank Square Width: 0.2750"
• Shank Square Width (Metric): 6.99mm
• Shank Square Length: 0.4375"
• Shank Square Length (Metric): 11.11mm
MFR C54727
