Cleveland, Taper, Plug and Bottoming Hand Tap Set, Bright, HSS, 5/16 24 H3 1004/900
Cleveland, Taper, Plug and Bottoming Hand Tap Set, Bright, HSS, 5/16 24 H3 1004/900
Mfr. Model #
C54523
|Item #
10876908
Your price
Complete your account to see your prices.
Please fill out the form.
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.

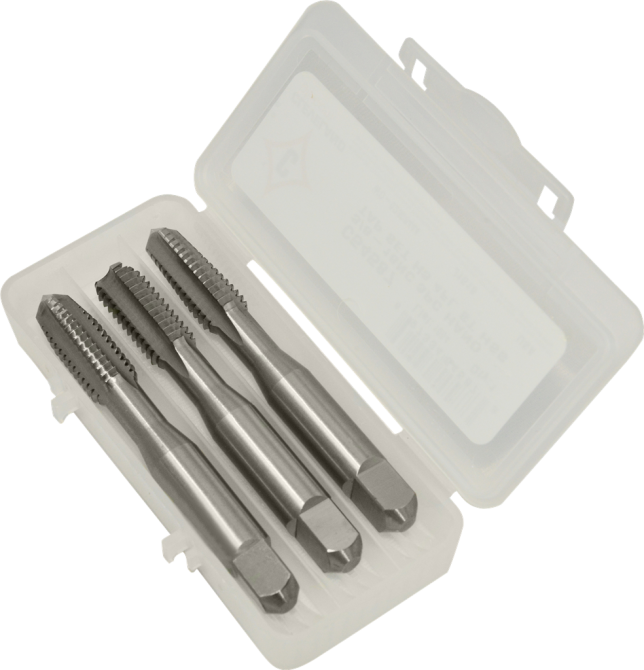

The Cleveland Taper, Plug, and Bottoming Hand Tap Set, model 1004/900, is designed for use with a 5/16"-24 UNF (Unified National Fine) thread size. This set includes three taps, each made from high-speed steel (HSS), offering excellent durability and performance. The taps are bright-finished to reduce friction and increase efficiency during threading.
The taps in this set feature a Taper, Plug, and Bottoming chamfer style, allowing for the threading of different depths and ease in completing threads at the bottom of a hole. They are straight flute taps with four flutes, which helps with chip removal and ensures smooth cutting. These taps are right-hand cutting and are ideal for general-purpose threading operations.
The thread pitch is 24 threads per inch, and the thread length is 1.1300" (28.70mm). Each tap has an overall length of 2.7200" (69.09mm), with a shank size of 0.3180" (8.08mm) and square end feature. The set comes in a Rose Plastic® UniBox case, which provides safe and organized storage for all pieces.
