• 1/4" FIP Kitz Ball Valve with Lever 600WOG 58
1 1

The color, size, or style shown in some images may differ from the description. Please carefully check the product description before placing your order.

M.A. Stewart & Sons

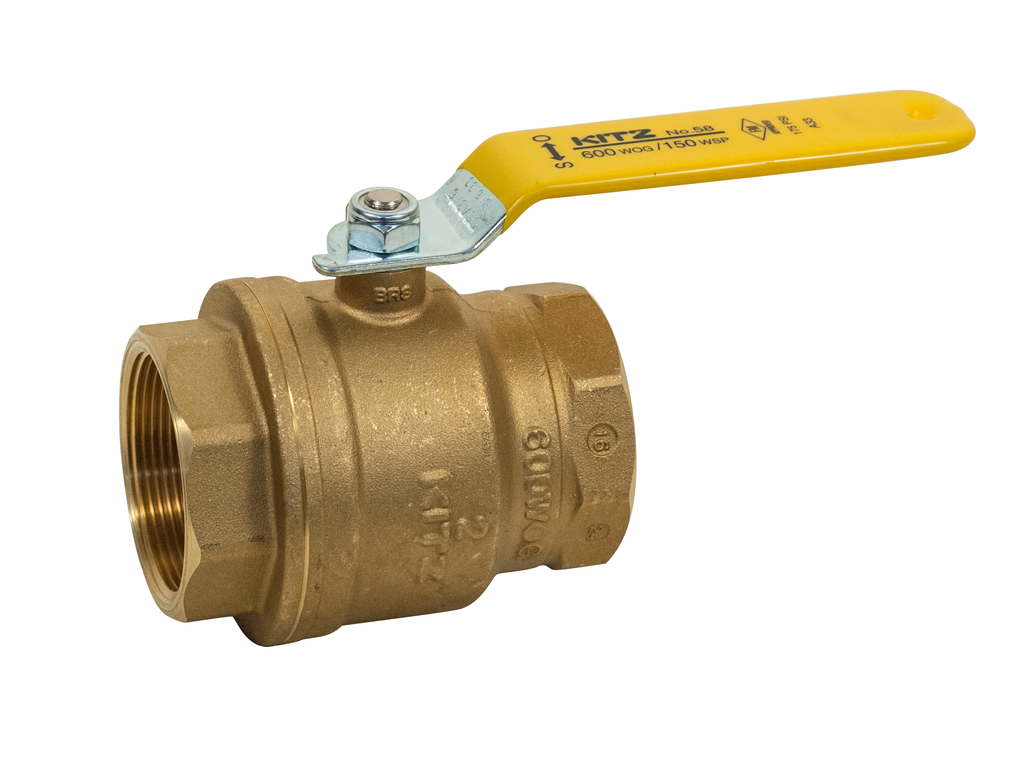

1/4" FIP Kitz Ball Valve with Lever 600WOG 58

1/4" FIP Kitz Ball Valve with Lever 600WOG 58

Mfr. Model #

05400-205

|

Item #

11334480

Your price

Complete your account to see your prices.
Please fill out the form.

$0.00 $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

Description:Kitz Forged Brass Ball Valve Maintenance Free Double O-Ring Stem SealsFeatures:CSA (US/C)Full PortPTFE SeatsChrome Plated / Vented BallBlowout Proof Stem (Ni Plated)Two Piece BodyStandardsEnd to end kitzThreaded ends ANSI B1.20.1Wall Thickness KitzConforms top MSS-SP 110 - REPLACES US. FED.SPEC. WWW-V-35B, TYPE II, CLASS A, STYLE 3Pressure/Temperature 1/4”-2”150 PSI saturated steam to 366ºF600 PSI - non-shock cold water, oil or gasPressure/Temperature 2 1/2” - 4”150 PSI saturated steam to 366ºF400 PSI - non-shock cold water, oil or gasSpecificationApproved valve shall have two piece forged brassbody, blowout proof stem (Ni Plated), PTFE seats,maintenance free double o-ring stem seals, chromeplated ball and full port design. 1/4”- 2” Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certifi ed to CSA, UL & FM.2 1/2”- 4” Valves shall be pressure rated to 150 WSP/400 WOG and conform to MSS-SP 110.Certifications:CSA (US/C) -40ºC~65ºC (-40ºF~149ºF)CGA 9.1b-2001/ANSI 21.15b-2006 - .5 PSICGA CR 91-002 - 2 PSIASME B16.44 - 5 PSICAN/CGA 3.16-M88 - 125 PSIASME B16.33-2002 - 125 PSIUL-258 - 175 WWP (Fire Trim Protection Valves)

View full details
