• Gate valve 206A 1 IP R+W
1 1

The color, size, or style shown in some images may differ from the description. Please carefully check the product description before placing your order.

M.A. Stewart & Sons

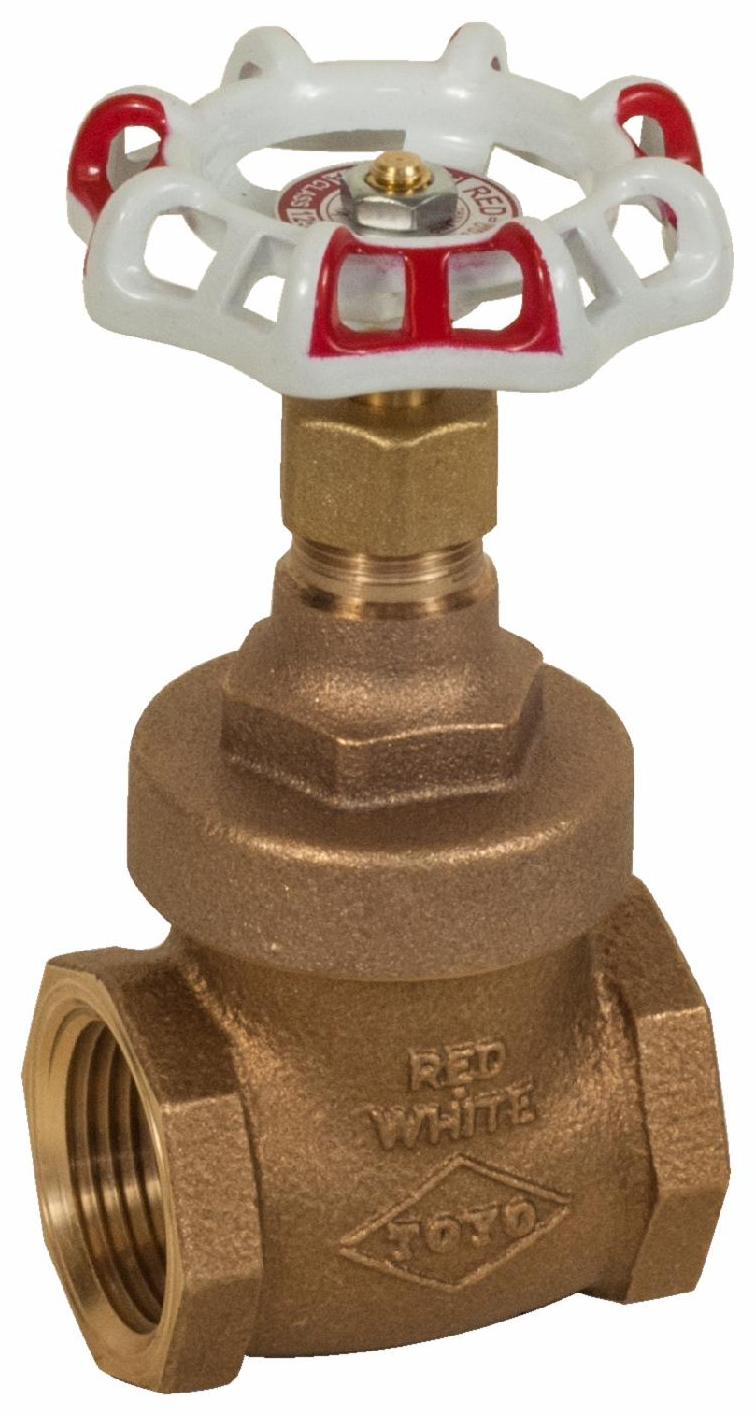

Gate valve 206A 1 IP R+W

Gate valve 206A 1 IP R+W

Mfr. Model #

0160200

|

Item #

10014822

Your price

Complete your account to see your prices.
Please fill out the form.

$0.00 $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

Gate valve 206A 1 IP, RED-WHITE TOYO Gate Valve, Model: 206A, 1 in Nominal, Connection Type: FNPT, 200 psi, Pressure Class: 125, Gas, Oil, Steam, Water Media, 57 mm Inlet to Outlet Length, 106 mm Top to Inlet Center, Bronze Body, Bronze Seat, Brass Stem, Brass Disc, Bronze Trim, Graphite Packing, Aluminum Handle, Hand Wheel Operator, Flow Coefficient (Cv): 29 Cv

Features

  • Screwed Bonnet (Size 4)
  • DESIGN TOYO
  • WALL THICKNESS TOYO STANDARD
  • END CONNECTION NPT
  • Non Rising Stem
  • Inside Screw
  • PRESSURE/TEMPERATURE 125 PSI - SATURATED STEAM TO 353ºF, FLUID TO 406ºF
  • END TO END TOYO STANDARD
  • Screwed Ends

Specifications

Specifications

Weight
1.300000000000 Lbs
Wog
200
Size inch
1
Brand Name
RED-WHITE
Style
GATE
Body Material
BRZ
End Connection
NPT
View full details
