• Gate valve 206A 1-1/2 IP R+W
1 1

The color, size, or style shown in some images may differ from the description. Please carefully check the product description before placing your order.

M.A. Stewart & Sons

Gate valve 206A 1-1/2 IP R+W

Gate valve 206A 1-1/2 IP R+W

Mfr. Model #

0160408

|

Item #

10014825

Your price

Complete your account to see your prices.
Please fill out the form.

$0.00 $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

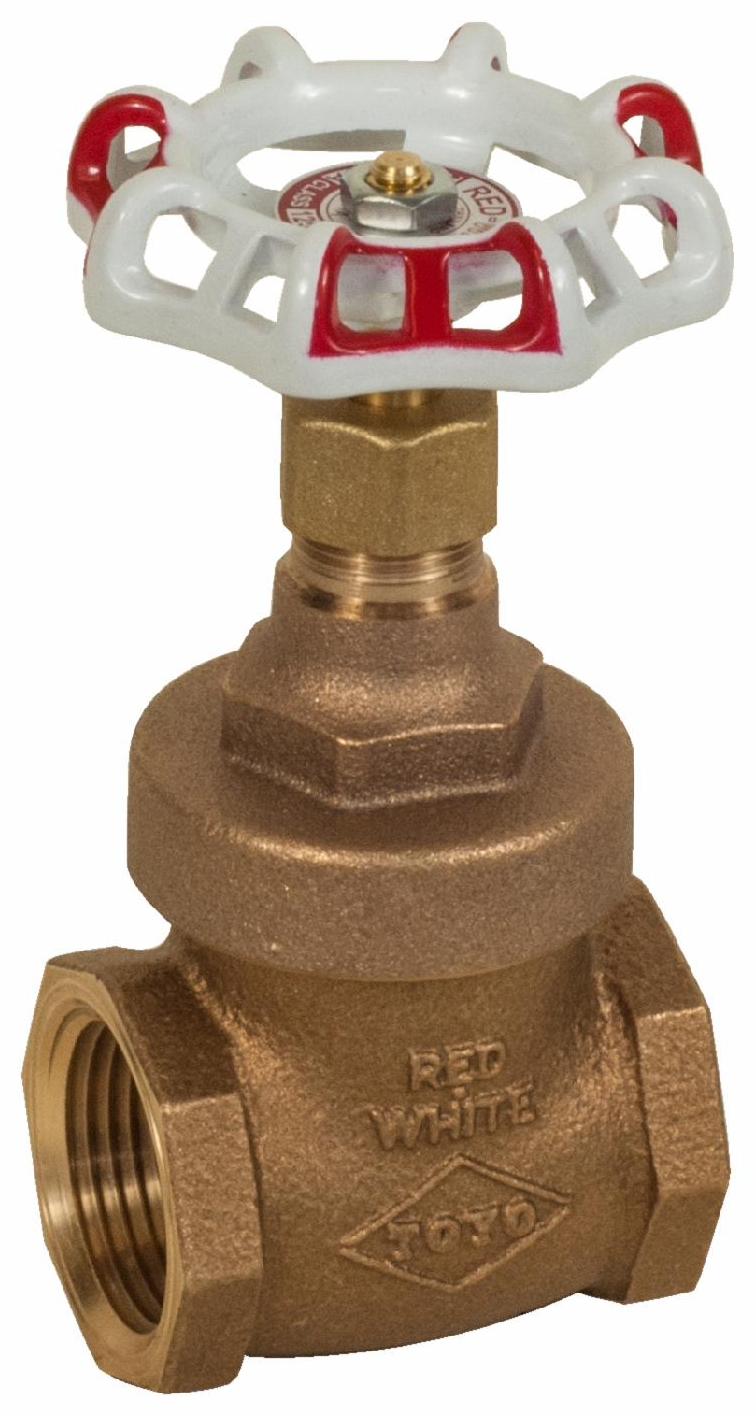

Gate valve 206A 1-1/2 IP, RED-WHITE TOYO Gate Valve, Model: 206A, 1-1/2 in Nominal, Connection Type: FNPT, 200 psi, Pressure Class: 125, Gas, Oil, Steam, Water Media, 67 mm Inlet to Outlet Length, 135 mm Top to Inlet Center, Bronze Body, Bronze Seat, Brass Stem, Brass Disc, Bronze Trim, Graphite Packing, Aluminum Handle, Hand Wheel Operator, Flow Coefficient (Cv): 120 Cv

Features

  • END CONNECTION NPT
  • WALL THICKNESS TOYO STANDARD
  • PRESSURE/TEMPERATURE 125 PSI - SATURATED STEAM TO 353ºF, FLUID TO 406ºF
  • DESIGN TOYO
  • Screwed Ends
  • Inside Screw
  • END TO END TOYO STANDARD
  • Non Rising Stem
  • Screwed Bonnet (Size 4)

Specifications

Specifications

Weight
2.600000000000 Lbs
Size inch
1-1/2
Wog
200
Brand Name
RED-WHITE
End Connection
NPT
Style
GATE
Body Material
BRZ
View full details
