• Gate valve 206A 3/4 IP R+W
1 1

The color, size, or style shown in some images may differ from the description. Please carefully check the product description before placing your order.

M.A. Stewart & Sons

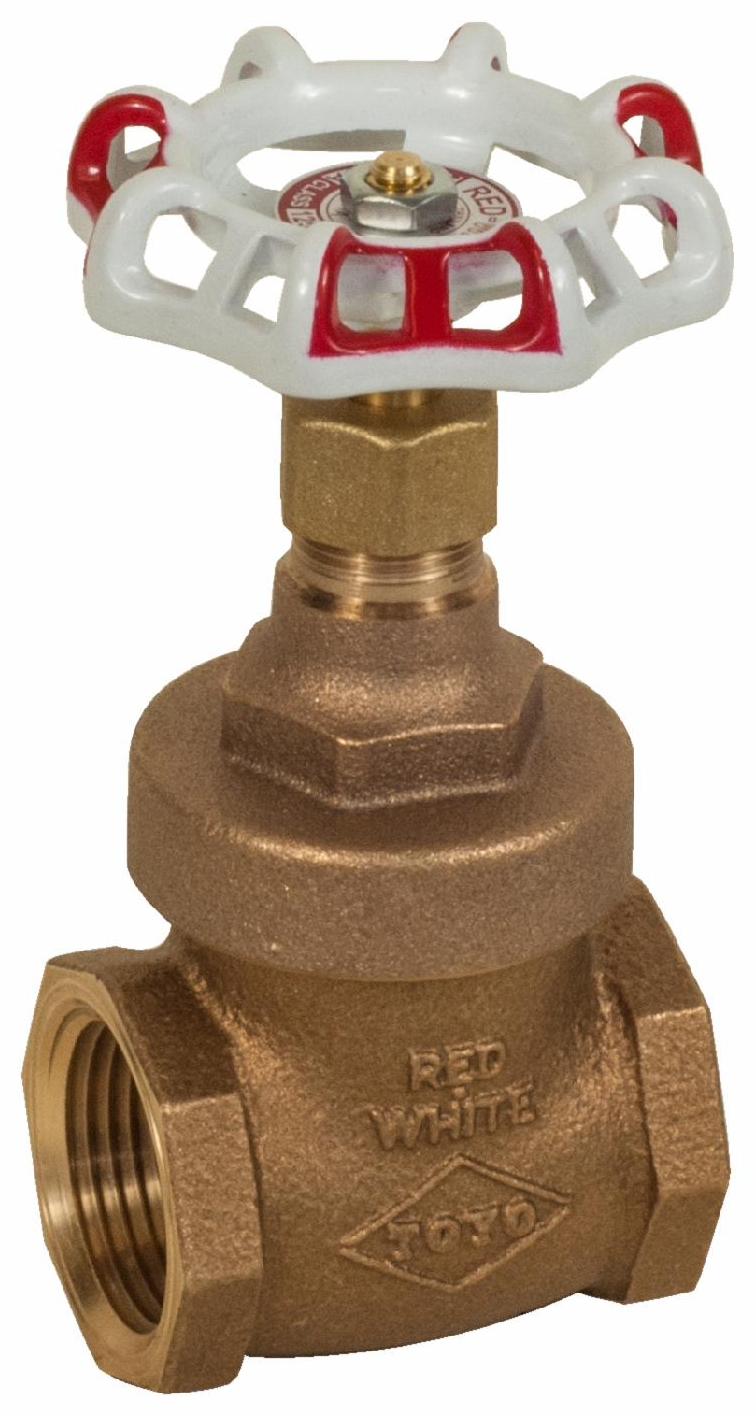

Gate valve 206A 3/4 IP R+W

Gate valve 206A 3/4 IP R+W

Mfr. Model #

0160101

|

Item #

10014823

Your price

Complete your account to see your prices.
Please fill out the form.

$0.00 $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

Gate valve 206A 3/4 IP, RED-WHITE TOYO Gate Valve, Model: 206A, 3/4 in Nominal, Connection Type: FNPT, 200 psi, Pressure Class: 125, Gas, Oil, Steam, Water Media, 50 mm Inlet to Outlet Length, 90 mm Top to Inlet Center, Bronze Body, Bronze Seat, Brass Stem, Brass Disc, Bronze Trim, Graphite Packing, Aluminum Handle, Hand Wheel Operator, Flow Coefficient (Cv): 18 Cv

Features

  • WALL THICKNESS TOYO STANDARD
  • END TO END TOYO STANDARD
  • END CONNECTION NPT
  • Screwed Bonnet (Size 4)
  • Screwed Ends
  • Non Rising Stem
  • Inside Screw
  • PRESSURE/TEMPERATURE 125 PSI - SATURATED STEAM TO 353ºF, FLUID TO 406ºF
  • DESIGN TOYO

Specifications

Specifications

End Connection
NPT
Body Material
BRZ
Style
GATE
Size inch
3/4
Weight
0.900000000000 Lbs
Wog
200
Brand Name
RED-WHITE
View full details
