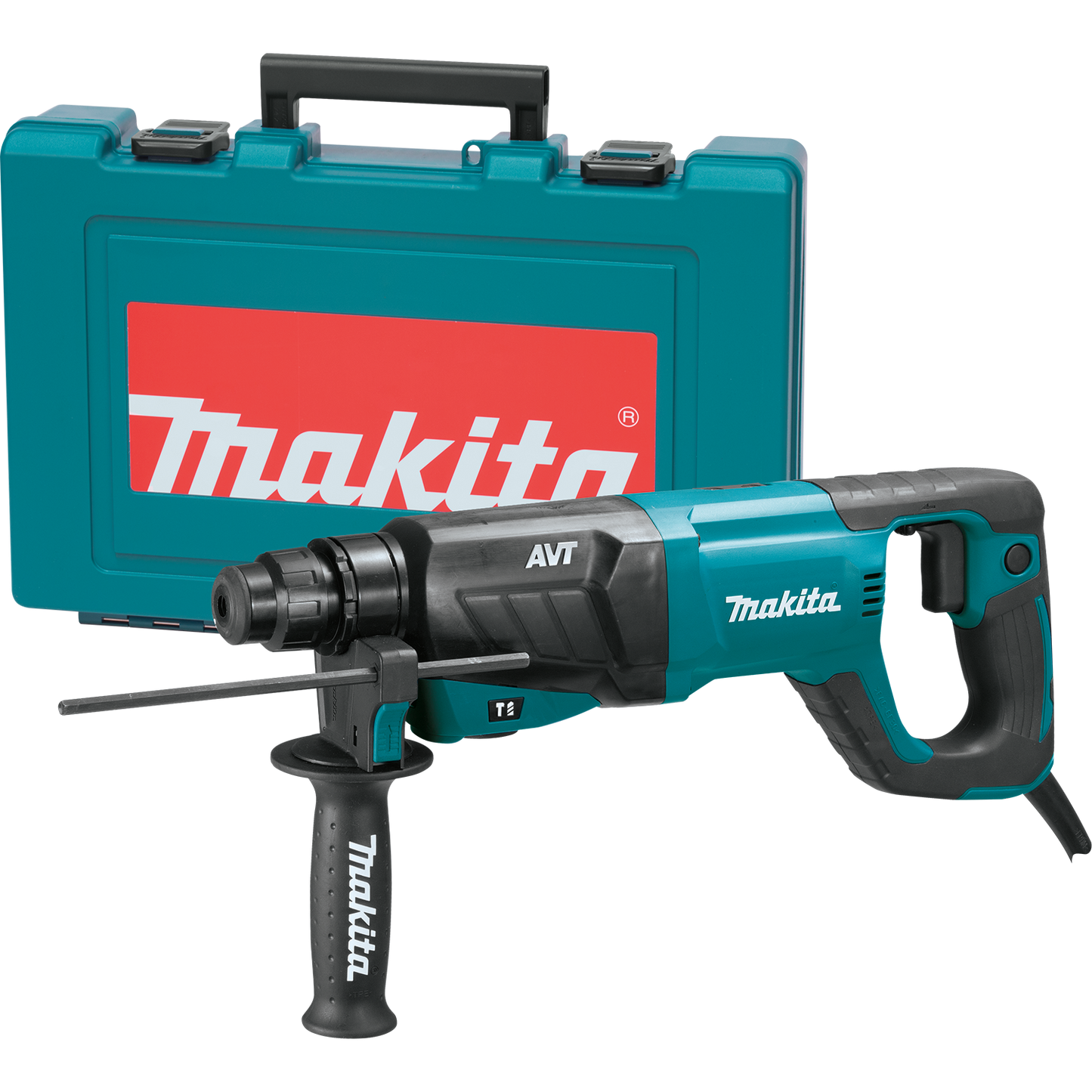

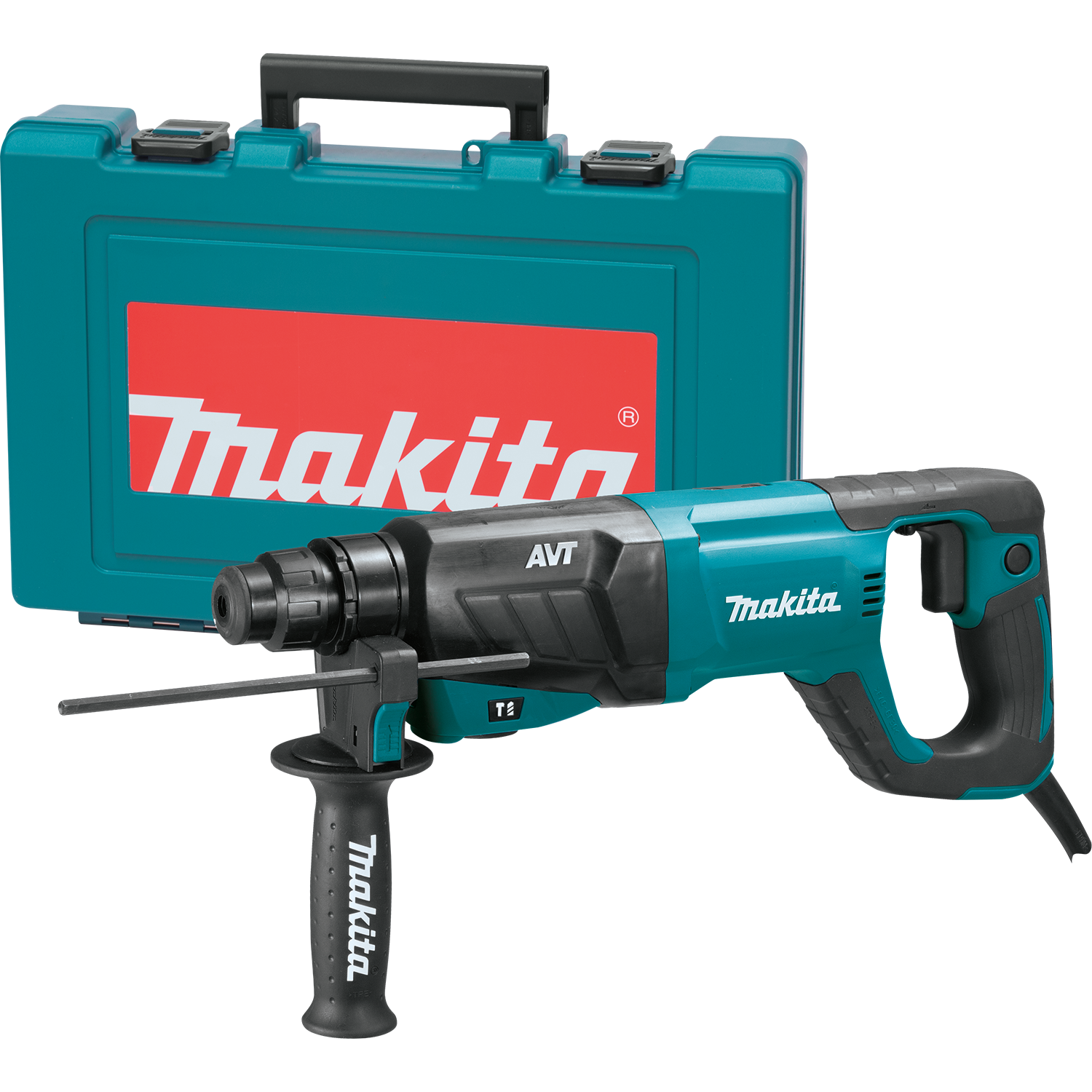

1" Rotary Hammer Sds Plus W/sky Hook For Precision Stock Removal

1" Rotary Hammer Sds Plus W/sky Hook For Precision Stock Removal

Mfr. Model #

HR2641

|

Item #

10975528

|

UNSPSC #

88381687485

Your price

Regular price

Complete your account to see your prices.
Please fill out the form.

Regular price $0.00 Sale price $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

Sds-plus ShankKey Features:• Anti-vibration Technologytm (avttm) Actively Counteracts Vibration Of Tool For Greatly Reduced Transmission To Operator• Torque Limiter Stops Bit Rotation If Bit Jams For Increased Operator Safety And Enhanced Tool Protection• High Durability Design With Zig-zag Armature Varnish, Enhanced Sealing, Improved Impact Bolt And Impact Reducing Cushion Ring• Retractable Sky Hook Allows Tool To Be Hung On Rafters, Pipes Or Scaffolding• Improved Bit Guide For Increased Bit Stability During Drilling Applications• Re-located Operating Mode Lever For Increased Protection And Durability• Variable Speed Trigger Allows Operator To Adjust Speed Based On Materials Or Application• 40 Angle Bit Positions Enable Chisels To Be Positioned At Optimum Angle Of Operation• One-touch Sliding Chuck For Easy Bit Installation And Removal• Ergonomic Soft Rubber D-handle For Vibration Absorption And Comfortable OperationMaximum Capacities:• Bit Type: Sds-plus• Maximum Capacities:• Concrete: 1" (26 Mm)• Steel: 1/2" (13 Mm)• Wood: 1-1/4" (32 Mm)• No Load Speed: 0 - 1,100 Rpm• Blows Per Minute: 0 - 4,500 Bpm• Impact Energy: 2.4 J (1.8 Ft. Lbs)• Amps (120v): 8.0 A• Vibration Level: 11.5 M/s2• Noise Level: 90 Db(a)• Overall Length: 16-5/8" (422 Mm)• Net Weight: 6.8 Lbs (3.1 Kg)Included Accessories:• Side Handle (122878-2)• Depth Gauge (331886-4)• Plastic Carrying Case (824695-3)

Features

  • Variable speed trigger enables user to match the speed to the application for greater versatility
  • Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
  • Recessed hammer function selector provides 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Chipping" for multiple applications
  • Anti-Vibration Technology (AVT®) is an internal counterbalance system that greatly reduces vibration by moving a counterweight in the opposite direction of the drive piston
  • Retractable hook allows tool to remain close by but never in the way
  • DURABILITY - Torque limiting clutch engineered to prevent gear damage by disengaging gears if the bit binds
  • 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Chipping" for multiple applications
  • POWER - 8 AMP motor delivers 2.1 ft.lbs. of impact energy
  • INCLUDES - Side handle, depth gauge and tool case
  • Anti-Vibration Technology (AVT®) is an internal counterbalance system that greatly reduces vibration
  • Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations from the drill bit
  • 40 bit angle settings allow the bit to be set at different positions for operating convenience
  • COMFORT - Anti-Vibration Technology is an internal counterbalance system that greatly reduces vibration
  • Powerful 8 AMP motor delivers 2.1 ft.lbs./2.9 J. of impact energy to handle the most demanding applications
  • Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
  • Ergonomic "D-shaped" handle with rubberized soft grip for increased comfort
  • Recessed hammer function selector located below gear housing for improved durability
  • VERSATILITY - 3-mode operation; "Rotation Only", "Hammering with Rotation" or "Chipping" for multiple applications
  • Powerful 8 AMP motor delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications

Includes

  • Depth Gauge (331886-4)
  • Side Handle (451749-9)
  • Tool Case (824695-3)

Prop 65

  • WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, • crystalline silica from bricks and cement and other masonry products, and • arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.

Specifications

Specifications

Overall Length
16-5/8"
Max. Capacity (concrete drilling w/ core bit)
3-1/8"
Bit Type
Accepts SDS-PLUS
Vibration Control
Yes
AMPS
8
Impact Energy (ft.lbs.)
2.1
UPC Code
088381-687485
Power Type
Corded
Blows Per Minute (variable speed)
0 - 4,500 BPM
Net Weight
7.1 lbs.
No Load Speed (variable speed)
0 - 1,100 RPM
Country of Origin
China
Vibration (m/s²)
11.5
Shipping Weight
12.13 lbs.
Bind-Up Control
No
Optimum Range (concrete drilling)
1/4" - 5/8"
Cord Length (ft)
13.1'
Max. Capacity (concrete drilling)
1"
Impact Energy (Joules)
2.9 J
