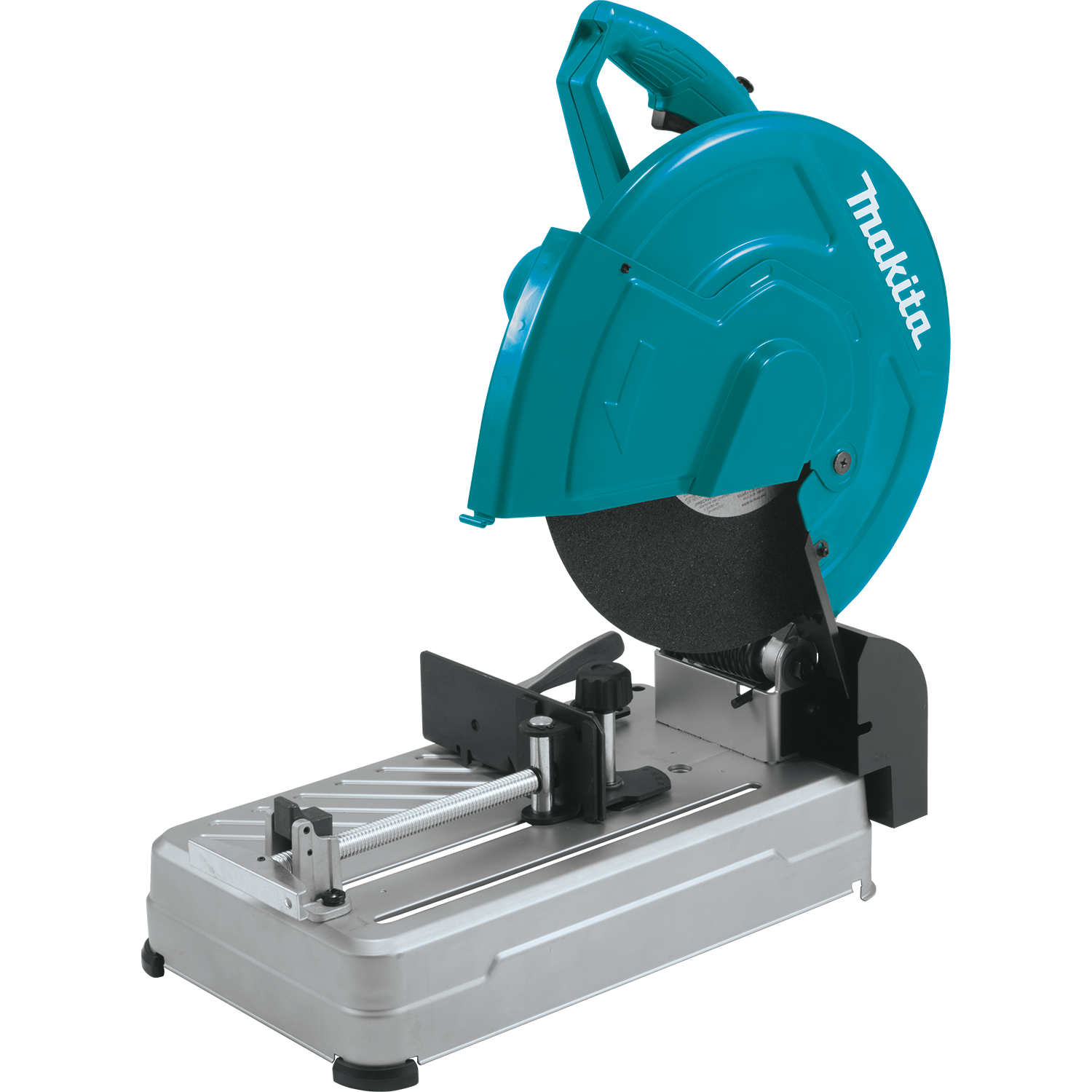

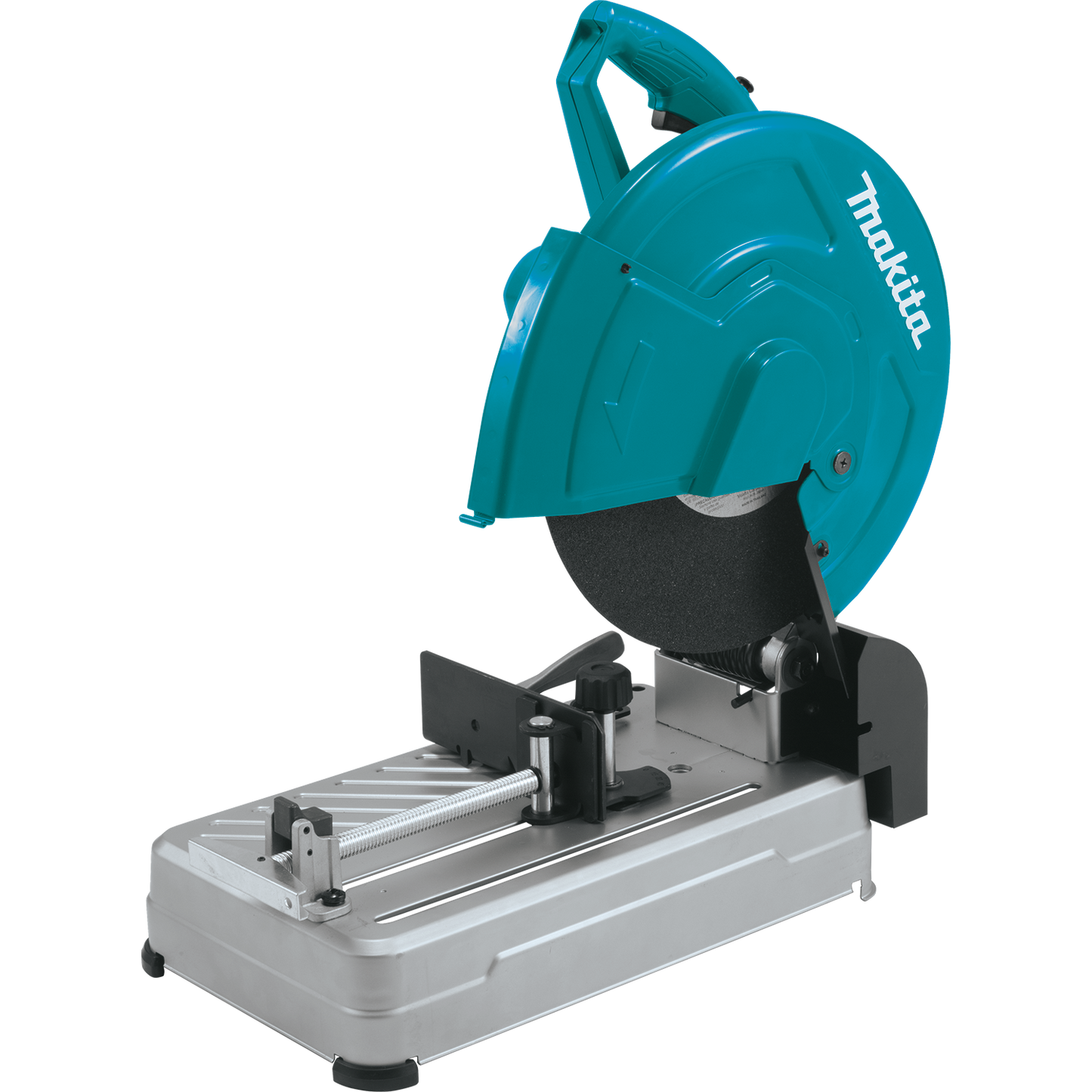

14" Tool-less Portable Cut-off Saw For Precision Stock Removal

Toolless Wheel Change And 3 Position Guide Plate Adjustment

Key Features:

• Toolless Wheel Change Feature Enables Fast And Easy Blade Changes Without The Need For Additional Tools

• Toolless 3 Position Guide Plate Adjustment For Fast And Accurate Angle Setting

• Quick Release Vise Enables Fast Clamping Of Materials

• Pin Lock Secures Saw Head In downward Position For Safe Transportation and Storage

• Lock Off Button Prevents Accidental Start Up

• Enlarged Spark Guard And Holder For Increased spark Collection

• Large Top Carrying Handle For Easy Transportation

Maximum Capacities:

• Blade Diameter: 14" (355 Mm)

• Arbor: 1" (25.4 Mm)

• No Load Speed: 3,800 Rpm

• Cutting Capacity:

• 45 Degrees: 5" (127 Mm)

• 90 Degrees: 5" (127 Mm)

• Amps (120v): 15.0 A

• Overall Length: 20-7/8" (530 Mm)

• Net Weight: 37.9 Lbs (17.2 Kg)

Included Accessories:

• 14" Abrasive Wheel (1 Ea. B-23204-5)

• Vise (135708-8)

MFR LW1400

Features

• Two-stage lock-off power button for operator convenience
• "Tool-less" vice adjustment for quick and easy clamping of material
• "Tool-less" flange removal for quick and easy blade and wheel changes
• Large ergonomic handle for operator comfort when performing various cutting applications
• Spindle lock for easy accessory changes
• Stamped steel base provides added rigidity for increased durability
• PRODUCTIVITY - "Tool-less" flange removal for quick and easy blade and wheel changes
• Carrying handle is ergonomically positioned to provide a balanced weight distribution for increased comfort while transporting the saw
• "Tool-less" fence & vice adjustment for quick and easy operation
• POWER - Powerful 15 AMP motor delivers 3,800 RPM for superior performance
• "Tool-less" fence adjustment up to 45º for faster and more accurate angle cuts; adjusts to 3 locations for various material sizes
• Powerful 15 AMP motor delivers 3,800 RPM for superior performance and durability
• Large cutting capacity; cuts up to 5" round and 4" x 7-5/8" rectangular
• CAPACITY - Large cutting capacity; cuts up to 5" round and 4" x 7-5/8" rectangular
• INCLUDES - Abrasive Wheel
• Locking pin secures cutting head in down position for easy transport and storage
• Extra-large spark guard captures and deflects debris away from the surrounding area
• CONVENIENCE - Extra-large spark guard captures and deflects debris away from the operator
• Weights only 37.9 lbs. for increased job site portability

Includes

• 14" x 1" x 7/64" Abrasive Cut-Off Wheel (A-93859-1)
