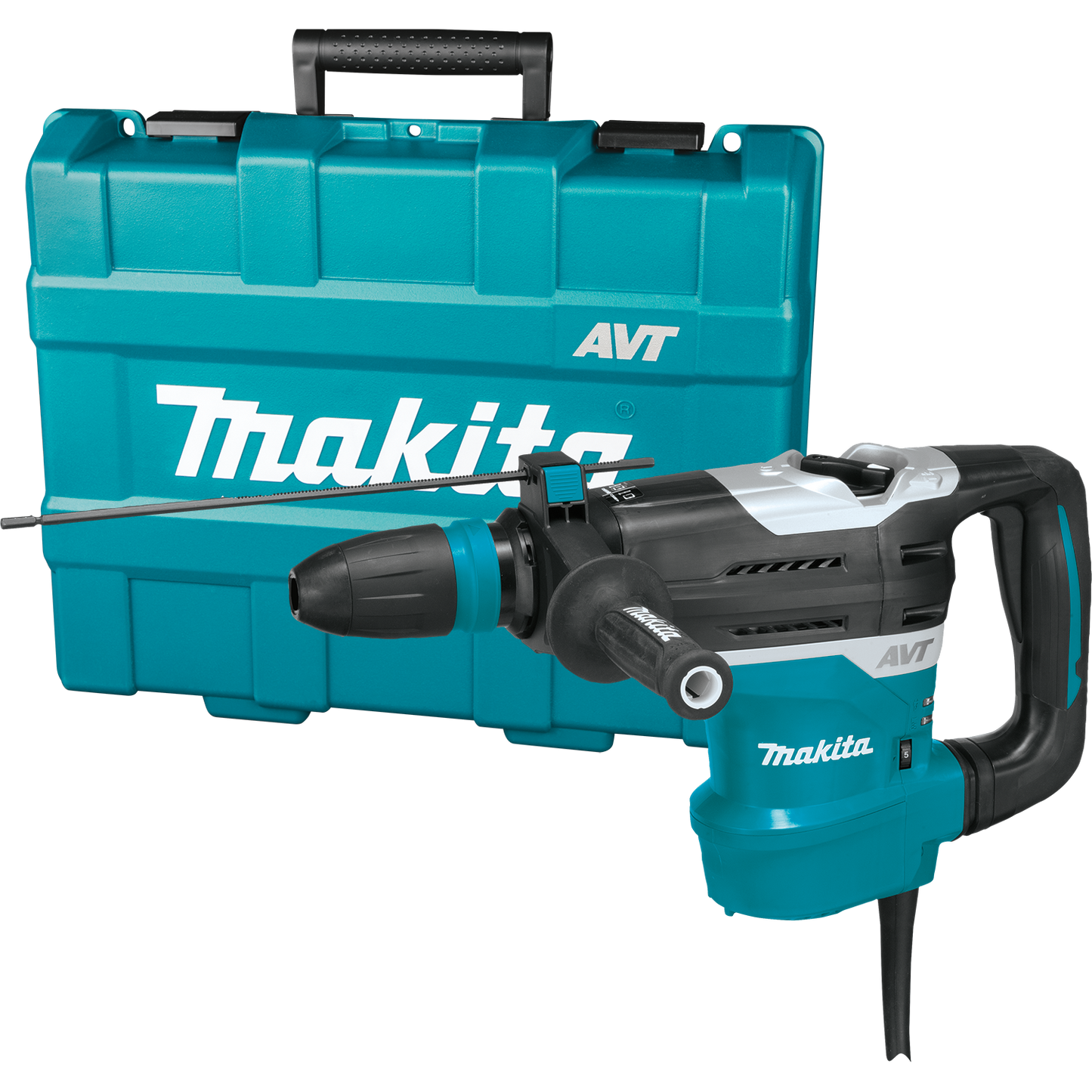

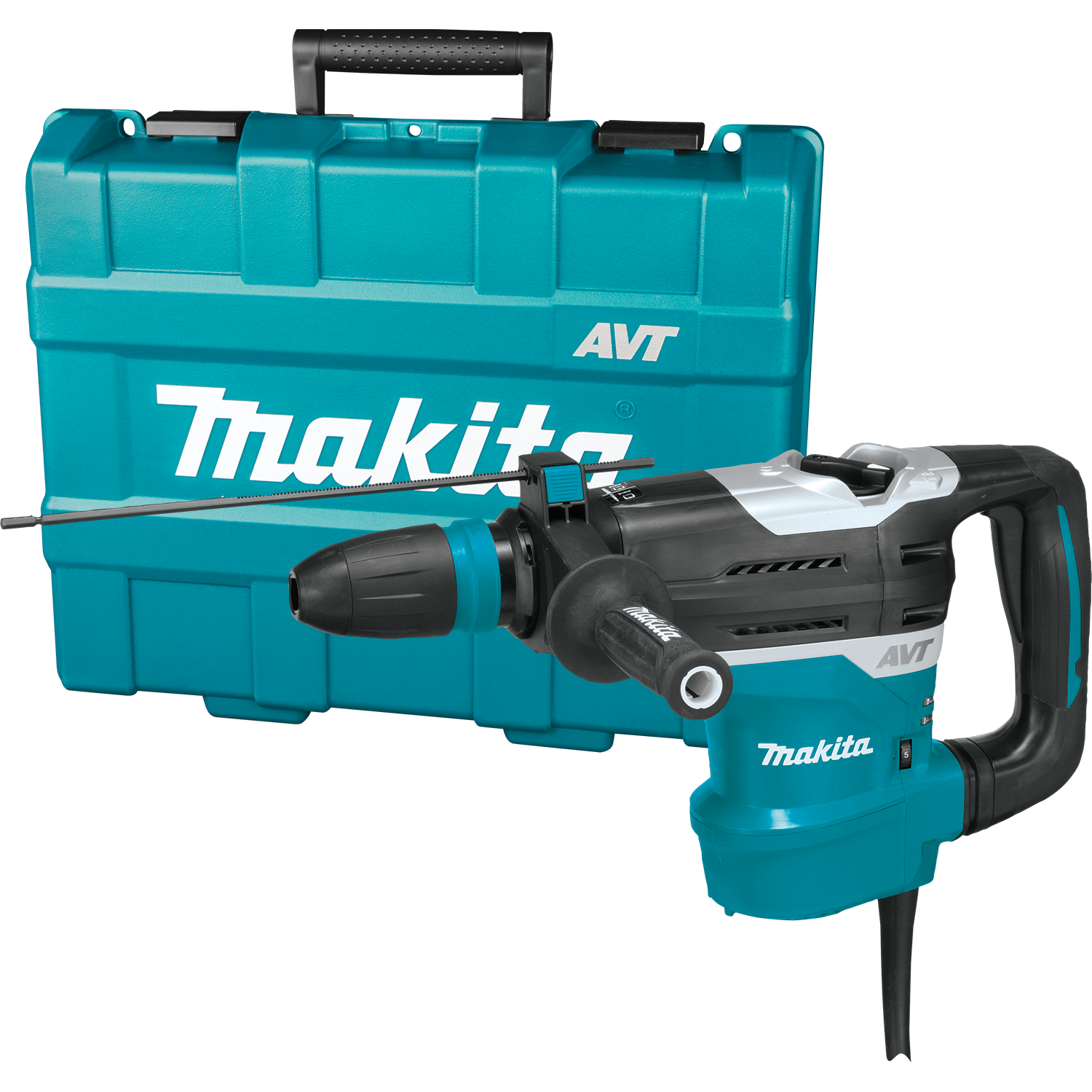

1-9/16" Rotary Hammer Sds-max For Precision Stock Removal

SDS-Max Rotary Hammer - Ultra-low Vibration at Just 5.0 M/s for Maximum Operator Comfort and Safety
This SDS-Max rotary hammer features advanced Anti-Vibration Technology (AVT™), incorporating a vibration-absorbing housing, active dynamic vibration absorber, and damper spring to actively counteract vibrations. This greatly reduces vibration transmission to the operator, ensuring maximum comfort and safety. The hammer includes both trigger and locking switches for ease of operation in intermittent drilling and prolonged demolition applications. The torque limiter stops bit rotation if the bit jams, offering increased operator safety and tool protection. The soft start feature gradually increases speed to eliminate startup shock. The variable speed dial allows the operator to adjust speed based on materials or application. With 24 angle bit positions, chisels can be positioned at the optimum angle for operation. The one-touch sliding chuck allows for easy bit installation and removal. LED service lights indicate when it’s time to change carbon brushes, and the LED power light shows the active power supply. The ergonomic soft rubber grip design ensures vibration absorption and comfortable operation.

Key Features:

• Advanced Anti-Vibration Technology (AVT™) system reduces vibration transmission to the operator
• Trigger and locking switches for ease of operation in intermittent drilling and prolonged demolition
• Torque limiter stops bit rotation if bit jams, increasing safety and tool protection
• Soft start feature gradually increases speed to eliminate startup shock
• No-load motor suppression limits vibration and bit deflection during idling
• Variable speed dial allows adjustment of speed based on materials or application
• 24 angle bit positions enable chisels to be positioned at optimum angle for operation
• One-touch sliding chuck for easy bit installation and removal
• LED service light indicates appropriate time to change carbon brushes
• LED power light indicates active power supply
• Ergonomic soft rubber grip design for vibration absorption and comfortable operation
• Includes straight (drilling) and D-style (demolition) handles

Maximum Capacities:

• Bit type: SDS-Max
• Concrete (TCT): 1-9/16" (40mm)
• Concrete (core bit): 4-1/8" (105mm)
• No-load speed: 250 - 500 RPM
• Blows per minute: 1,450 - 2,900 BPM
• Impact energy: 11.4 J (8.4 ft-lbs)
• Amps (120V): 11.0A
• Vibration level: 5.0 m/s²
• Noise level: 92 dB(A)
• Overall length: 18-11/16" (479mm)
• Net weight: 15.1 lbs (6.8kg)

Included Accessories:

• Straight side handle (123138-5)
• D-style side handle (196792-8)
• Cleaning cloth (443122-7)
• Depth gauge (331955-1)
• Plastic carrying case (141977-1)

MFR HR4013C

Features

• Advanced AVT® includes an integrated damper spring at the base of the impact bolt engineered to absorb impact vibrations from the drill bit
• Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
• 24 bit angle settings allow the bit to be set at different positions for operating convenience
• Advanced Anti-Vibration Technology (AVT®) is a synchronized, three-component system that more effectively reduces vibration resulting in a low 5m/s2
• Electronic Controller is a feature package that provides constant speed control, soft start, soft no-load and variable speed
• COMFORT - Air actuated counterbalance actively reduces vibration
• Lock-on or trigger activation in "Chipping Only" mode with a push button start/stop control for more convenient operation
• Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
• PERFORMANCE - Vibration absorbing housing moves independently of the motor and drive mechanism
• Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
• Advanced AVT® is an air actuated counterbalance, vibration absorving housing and impact bolt damper spring that more effectively reduces vibration
• Advanced AVT® includes a vibration absorbing housing with a spring loaded back handle and housing which moves independently of the motor and hammer mechanism effectively isolating more vibration away from the user
• Automatic brush cut-off protects commutator from damage for longer tool life
• "Soft no-load" function automatically reduces the speed of the motor when idling to help increase tool life and performance
• ERGONOMICS - Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations
• Variable speed control dial enables user to match the speed to the application for greater versatility
• L.E.D. power light indicates switch failure or cord damage
• Soft start suppresses start-up reaction for more precision and better accuracy
• CONVENIENCE - Lock-on or trigger activation in "Chipping Only" mode with a push button start/stop control
• Advanced AVT® includes an air actuated counterbalance that directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the hammer mechanism to effectively reduce vibration
• 2-mode operation for "Chipping Only" or "Hammering with Rotation"
• Includes a 16.4 ft. power cord for user convenience
• One-touch sliding chuck for quick bit changes
• INCLUDES - Side handle, D-handle, depth rod, grease and case
• Powerful 11 AMP motor delivers 8.4 ft.lbs. / 11.4 J. of impact energy to handle the most demanding applications
• L.E.D. service light notifies the user approximately 8 hours before the brushes need to be replaced
• L.E.D. light indicates electrical failure or notifies the user approximately 8 hours before brushes need to be replaced

Includes

• Side Handle Assembly (123138-5)
• Hammer Bit Grease (194683-7)
• Tool Case (141977-1)
• Depth Gauge (331955-1)
• D-Handle Assembly, HR4013C (196792-8)

Prop 65

• WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, • crystalline silica from bricks and cement and other masonry products, and • arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
