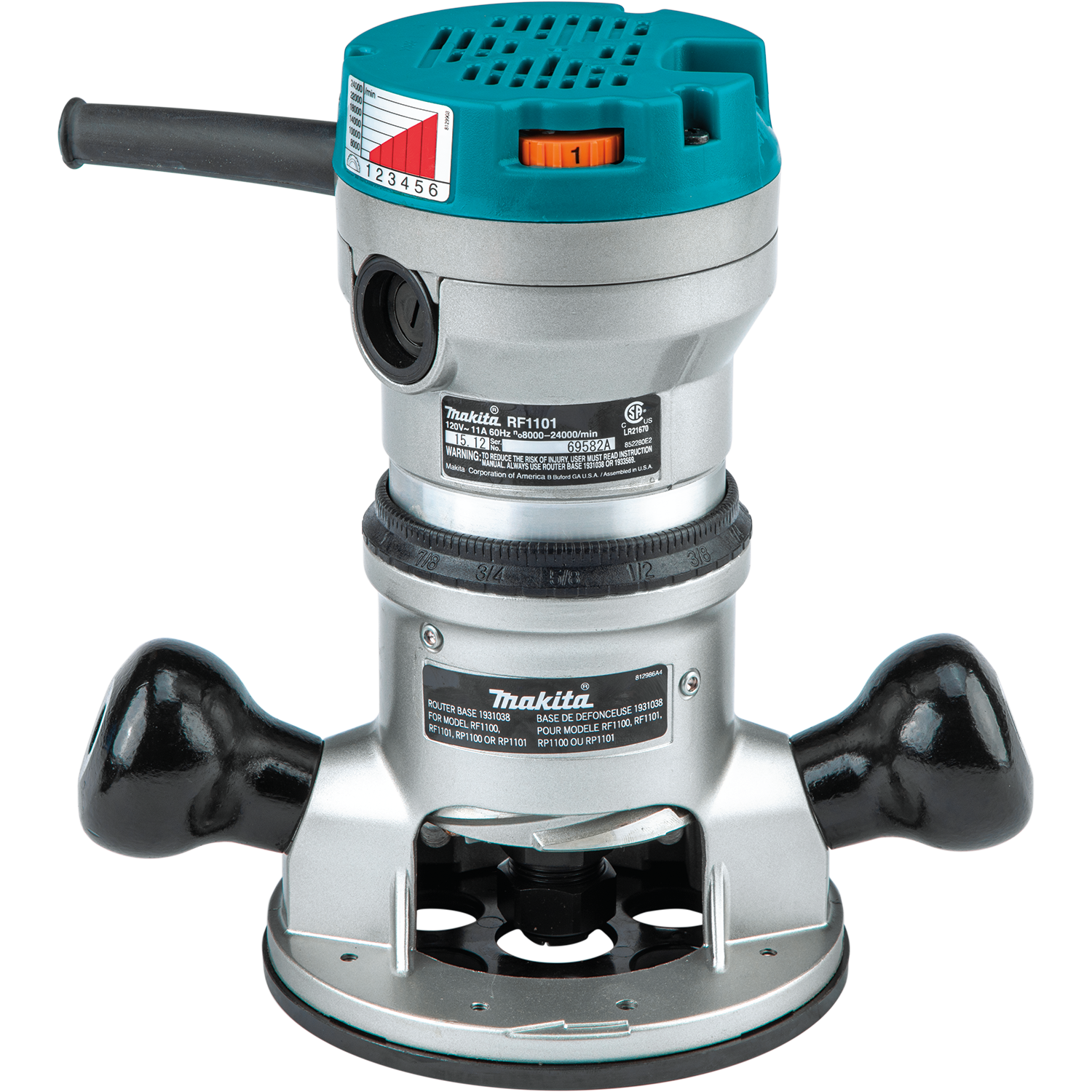

2-1/4 Hp Router For Precision Stock Removal

Key Features:

• Electronic Speed Control Maintains Constant Speed Under Heavy Load

• Variable Speed Dial Adjusts Motor Speed Based On Materials Or Application

• Soft Start Feature Gradually Increases Speed To Eliminate Start Up Shock

• Flat Top Design For Increased Stability When Changing Bits

• Industrial Cam-lock Enables Fast And Easy Depth Adjustment And Removal Of Motor

• Sub-base Accepts Industry Standard Template Guides

Maximum Capacities:

• Collet Capacities: 1/4" & 1/2" (6.35 Mm & 12.7 Mm)

• No Load Speed: 8,000 - 24,000 Rpm

• Amp (120v): 11.0 A

• Vibration Level: (unavailable)

• Noise Level: (unavailable)

• Base Diameter: 5-3/4" (146 Mm)

• Overall Height: 8-3/4" (223 Mm)

• Net Weight: 7.3 Lbs (3.3 Kg)

Included Accessories:

• 1/4” Collet Cone (193214-9)

• 1/2” Collet Cone (193215-7)

• Two Wrenches 27 (781031-5)

MFR RF1101

Features

• Sub base accepts industry standard template guides for convenience
• Sub-base accepts industry standard template guides
• Rugged aluminum motor housing with small 3-1/4" diameter for easy handling
• Accepts 1/2" and 1/4" shank bits
• Low noise (81dB) and low vibration for operator comfort
• ACCURACY - Variable speed dial matches the speed to the application; 8,000 - 24,000 RPM
• Variable speed control dial enables user to match the speed to the application
• Electronic speed control maintains constant speed under load
• Bits are installed/removed with two identical size wrenches
• Soft start feature for smooth start-ups
• *Maximum horsepower
• Variable speed control dial to match the speed to the application
• Durable flat top design for stability when changing bits
• EFFICIENCY - Industrial cam-lock lever for fast, easy depth adjustment and removal of motor
• Durable flat top for stability when changing bits
• Large calibrated depth control ring for easy depth adjustment
• INCLUDES - 1/4" collet, 1/2" collet, wrenches; RF1101KIT2 - Includes plunge base
• Externally accessible brushes for greater serviceability
• Industrial cam-lock for fast and easy depth adjustment and removal of motor
• Powerful 11 AMP motor delivers 8,000-24,000 RPM for the most demanding applications
• CONTROL - Electronic speed control maintains constant speed under load; 11 AMP 2-1/4* HP motor (*maximum)
• All-ball bearing construction for longer tool life
• Rugged aluminum motor housing with small 3-1/4" diameter
• VERSATILITY - Sub-base accepts industry standard template guides

Includes

• Wrench 27 (193234-3)
• 1/4" Collet with Nut (193214-9)
• 1/2" Collet (763643-6)

Prop 65

• WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, • crystalline silica from bricks and cement and other masonry products, and • arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
