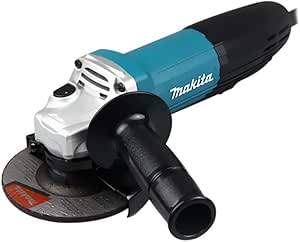

4-1/2" Angle Grinder W/paddle Switch Ac/dc For Precision Stock Removal

4-1/2" Angle Grinder W/paddle Switch Ac/dc For Precision Stock Removal

Mfr. Model #

GA4534

|

Item #

10083416

Your price

Regular price

Complete your account to see your prices.
Please fill out the form.

Regular price $0.00 Sale price $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

Angle Grinder - Two-Stage Safety Paddle Switch (AC/DC)
This angle grinder is designed with a re-engineered gear housing for enhanced shaft lock durability and a labyrinth construction that uses a complex series of channels to prevent the penetration of dust and debris into the field and armature, ensuring maximum operational life. The motor winding protection features "zig-zag" varnish on the armature and hardened powder on the field coils, acting as an impenetrable barrier against dust and debris. The rotatable gear housing can be positioned every 90° for optimal positioning. The removable side handle can be mounted on either side of the tool, and the slim housing design ensures easy handling and maneuverability.

Key Features:

  • Re-designed gear housing for enhanced shaft lock durability
  • Labyrinth construction prevents penetration of dust and debris into the field and armature for maximum operational life
  • Motor winding protection with "zig-zag" varnish on the armature and hardened powder on the field coils
  • Rotatable gear housing can be positioned every 90° for optimal positioning
  • Removable side handle can be mounted on the left or right side of the tool
  • Slim housing design for easy handling and maneuverability

Maximum Capacities:

  • Grinding wheel: 4-1/2" (115mm)
  • Sanding disc: 4-1/2" (115mm)
  • Wire cup brush: 3-1/2" (90mm)
  • Spindle thread: 5/8" - 11 UNC
  • No-load speed: 11,000 RPM
  • Amps (120V): 6.0A
  • Vibration level: 8.0 m/s²
  • Noise level: 86 dB(A)
  • Overall length: 10-3/8" (265mm)
  • Net weight: 4.2 lbs (1.9kg)

Included Accessories:

  • 4-1/2” depressed center wheel (1 ea. A-95956-25)
  • Lock nut wrench 28 (782424-9)
  • Wheel cover (123098-1)
  • Inner flange (224399-1)
  • Lock nut 5/8"-45 (224568-4)
  • Side handle (153504-2)
