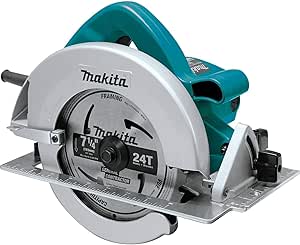

7-1/4" Circular Saw W/electric Brake For Precision Stock Removal

High Power To Weight Ratio

Key Features:
• Electric brake for increased operator safety
• Heavy-duty aluminum base plate for jobsite durability
• LED job light
• Flat motor housing provides stability during blade changes
• Bevel capacity of 45°

Maximum Capacities:
• Blade diameter: 7-1/4" (185 mm)
• Arbor: 5/8" (15.88 mm)
• Maximum cutting capacities:

• 0°: 2-3/8" (60 mm)
• 45°: 1-3/4" (46 mm)
  • No load speed: 5,800 RPM
  • Amps (120V): 15.0 A
  • Vibration level: (unavailable)
  • Noise level: (unavailable)
  • Overall length: 12" (305 mm)
  • Net weight: 11.1 lbs (5.0 kg)

Included Accessories:
• 7-1/4" C.T. blade 24T (1 ea. A-94530-10)
• Offset wrench 13 (782016-4)

MFR 5007FA

Features

• Powerful 15 AMP motor delivers 5,800 RPM for proven performance and job site durability
• Large and easy-to-read markings on depth and bevel scales
• Conveniently located shaft lock for easy blade replacement
• Technologically-advanced centrifugal fan and baffle system for efficient cooling of the motor
• Ideal for framers, builders, masons and siding contractors
• All ball bearing construction engineered for longer tool life
• Two built-in L.E.D. lights illuminate the line of cut for increased accuracy
• Lower guard design improves performance when making bevel and narrow cuts
• INCLUDES - Saw blade and blade wrench
• Well balanced design for superior handling and performance
• DURABILITY - Two built-in L.E.D. lights illuminate the line of cut for increased accuracy
• AC/DC switch allows for use with alternative power sources
• Bevel cuts 0°- 45° for the most common angles
• Large cutting capacity (2-3/8" at 90°, 1-3/4" at 45°)
• CONTROL - Heavy gauge aluminum wraparound base engineered for improved
• ACCURACY - Electric brake for maximum productivity
• POWER - Powerful 15 AMP motor delivers 5,800 RPM for proven performance and job site durability
• Built-in dust blower clears the line of cut for greater accuracy
• Flat motor housing design increases stability when changing blades
• Double insulated
• Electric brake for maximum productivity
• Heavy gauge aluminum wraparound base engineered for improved durability and straighter cuts

Prop 65

• WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, • crystalline silica from bricks and cement and other masonry products, and • arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.

Includes

• Offset Wrench (782016-4)
• 7-1/4" 24T Framing Blade, General Contractor (D-45989-1)
