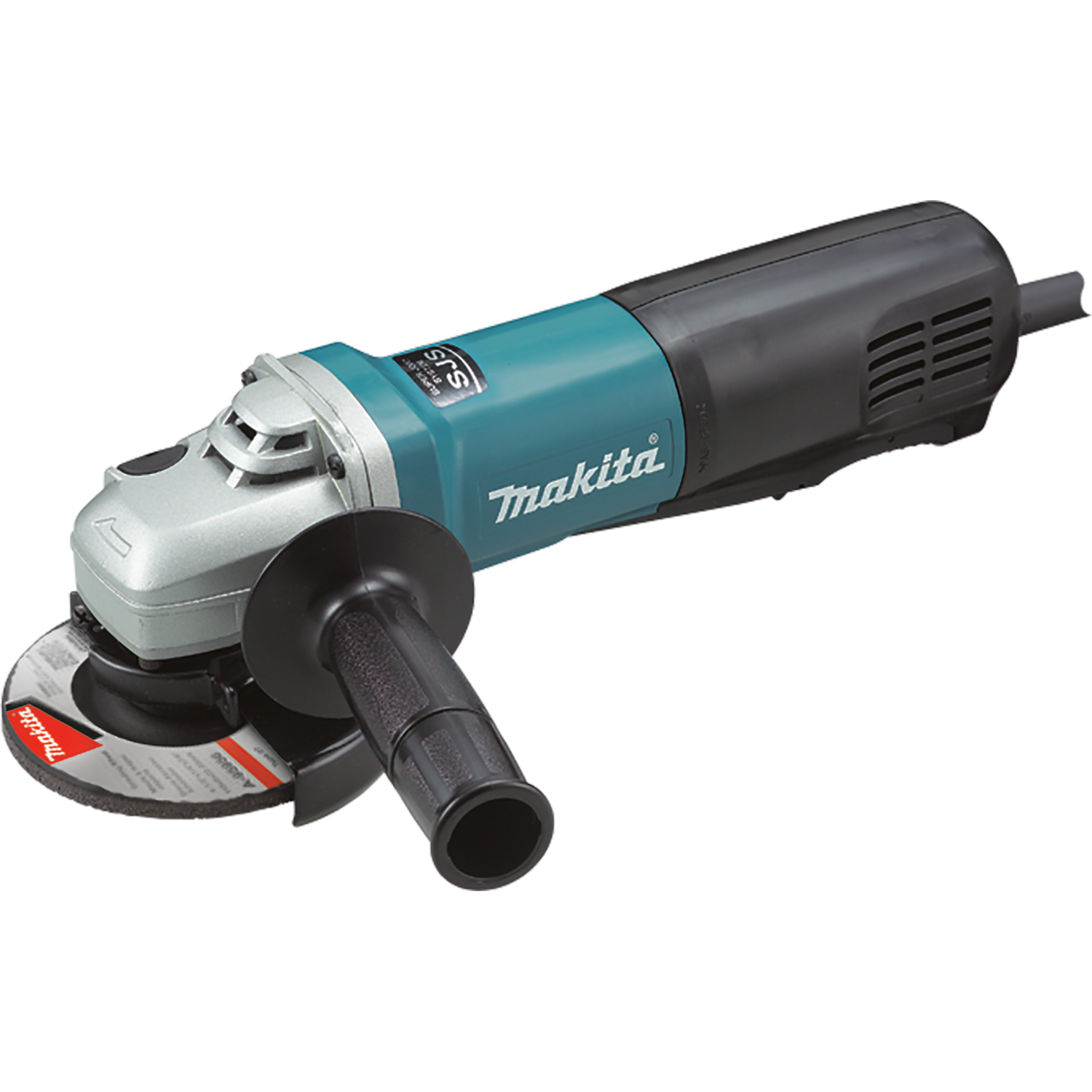

Makita 9564PC 4-1/2" SJS™ High-Power Paddle Switch Angle Grinder - 13 AMP

Makita 9564PC 4-1/2" SJS™ High-Power Paddle Switch Angle Grinder - 13 AMP

Mfr. Model #

9564PC

|

Item #

11320016

|

UNSPSC #

88381085144

Your price

Regular price

Complete your account to see your prices.
Please fill out the form.

Regular price $0.00 Sale price $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

The Makita 9564PC 4-1/2" SJS™ Angle Grinder delivers 13 AMP power and 10,500 RPM, making it ideal for demanding industrial applications such as cutting, grinding, and metal polishing. Engineered with Makita’s SJS™ (Super Joint System) mechanical clutch, it prevents motor and gear damage by disengaging the motor if the grinding wheel catches or binds. Additional features include labyrinth construction, zig-zag varnish, and thicker coil wires for extended tool life. Weighing only 5.3 lbs., this grinder is designed for comfort, with a large paddle switch for easy operation. Includes a grinding wheel, wheel guard, side handle, inner flange, lock nut, and wrench.

Includes

  • Inner Flange (224399-1)
  • 4-1/2" Grinding Wheel (A-95956)
  • Lock Nut (193465-4)
  • Side Handle (153489-2)
  • 4-1/2" Tool-less Wheel Guard (135107-4)
  • Lock Nut Wrench (782424-9)

Features

  • Constant speed control automatically applies additional power to the motor to maintain speed under load
  • Soft start suppresses start-up reaction for smooth start-ups and longer gear life
  • SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
  • Electronic current limiter helps protect the motor from overload
  • Alternate model 9565PC features a 5" guard
  • INCLUDES - Grinding wheel, wheel guard, side handle, inner flange, lock-nut, and wrench
  • Compact design at only 12-1/8" long and weighs only 5.3 lbs.
  • Powerful 13.0 AMP motor delivers more output and 10,500 RPM for the most demanding applications
  • PERFORMANCE - SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage
  • Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
  • "Tool-less" wheel guard adjustment for easy adjustment
  • COMFORT - Large paddle switch for easy operation; (only 5.3 lbs.)
  • DURABILITY - Labyrinth construction, zig-zag varnish and thicker coil wires for longer tool life
  • POWER - 13 AMP motor delivers 10,500 RPM
  • Large paddle switch with lock-off for comfortable operation
  • Two position adjustable side handle for operator covenience
  • Powerful 13.0 AMP motor delivers more output and 10,500 RPM

Prop 65

  • WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, • crystalline silica from bricks and cement and other masonry products, and • arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.

Specifications

Specifications

Variable speed dial
No
Switch Type
Body grip/paddle
Spindle Type
5/8" - 11 UNC
Overall Length
12-1/8"
Net Weight
5.3 lbs.
Bind-Up Control
Yes
Lock-Off Switch
Yes
Country of Origin
Japan
Shipping Weight
7.2 lbs.
UPC Code
088381-085144
AMPS
13
No Load Speed
10,500 RPM
Wheel Diameter
4-1/2"
Lock-On Switch
No
Power Type
Corded
