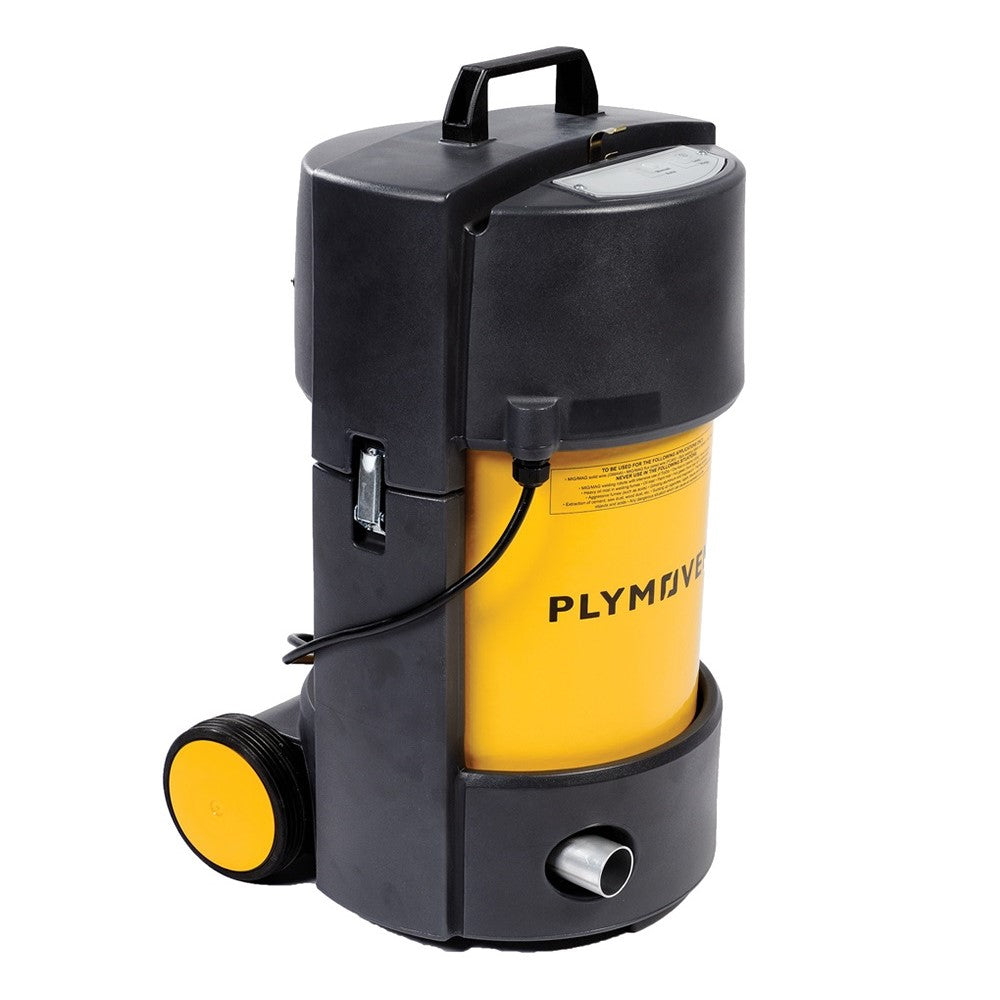

Description:The PHV unit extracts welding fumes at the source, close to the welding process. Separation and filtration occur in five stages and ensure a filtration efficiency of nearly 100%*.The tangential inlet begins with the cyclonic separation of larger particles.Two spark arrestors prevent sparks from reaching the filter cartridge. A removable/washable aluminum pre-filter captures larger particles, while the integrated spark arrestor captures finer particles.The main Dura-H filter cartridge has a surface area of 12 m², ensuring a long filter life and high, consistent filtration thanks to the alternately sealed channel technology.The optional activated carbon filter (FAC-HV) neutralizes unpleasant odors.The final HEPA* filter ensures high filtration efficiency. The HEPA filter makes the PHV suitable for stainless steel welding fume applications and is included as standard.Technical Details:Outdoor use: NoMain filter efficiency class: H10 according to DIN EN 1822Pre-filter classification: G2 according to DIN EN 779Color: YellowInput frequency (Hz): 60 HzMaximum relative humidity: 80%Main filter material: Cellulose fibers / Cardboard / AluminumPre-filter material: Aluminum, NeopreneModel name: PHVPhases: 1-PhaseTemperature range (°C): 5°C to 45°CTemperature range (°F): 41°F to 113°FQuantity: 1 PcMain filter surface area (ft²/m²): 129.2 ft² (12 m²)Pre-filter surface area (ft²/m²): 0.4 ft² (0.037 m²)Product type: Mobile welding fume extractorInput voltage: 115V
