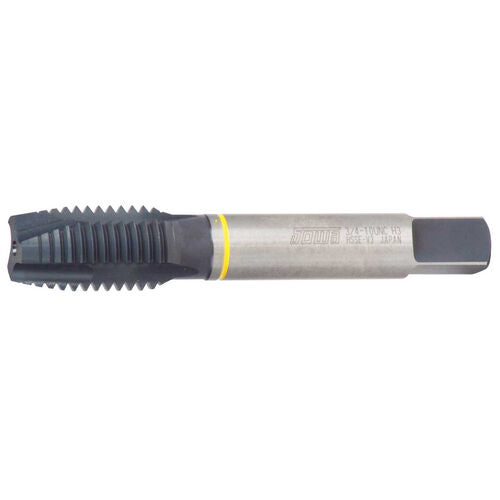

10-32 UNF Yellow Ring HSSE-V3 Spiral Point Tap
10-32 UNF Yellow Ring HSSE-V3 Spiral Point Tap
Mfr. Model #
123338
|Item #
10006579
Your price
Complete your account to see your prices.
Please fill out the form.
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.
Brand: Sowa Taps
Thread Standard : UNF
Overall Length (Inch) : 2-3/8"
Thread Length (Decimal Inch) : 0.512
Thread Size (Inch): #10-32
Chamfer: 4.5P
Finish/Coating: Black Oxide
Material: HSSE-V3
Through Coolant: No
Thread Direction: Right Hand
Thread Limit: H3
Number of Flutes: 3
HSSE-V3% Vanadium • Superior performance in hardened tool steels such as 4140, 4340, H13, D2. • Up to 35 HRC Designed for high-speed tapping applications. Developed to withstand the high stress and high heat associated with high-speed CNC production tapping. Features a unique free-cutting design with a special tempering and geometry which contributes to extra tool life.
