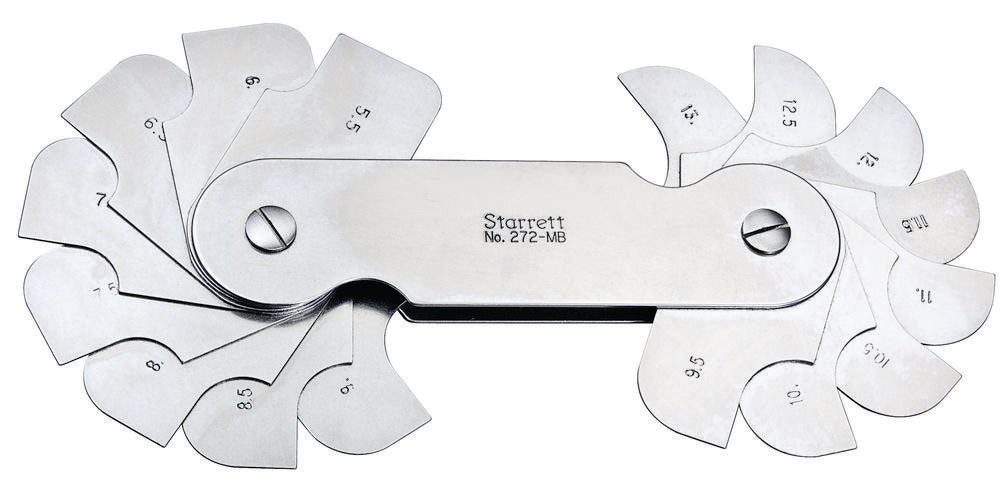

Fillet or Radius Gage 16 Leaves 5.5-13mm Range

Fillet or Radius Gage 16 Leaves 5.5-13mm Range

Mfr. Model #

272MB

|

Item #

10535506

|

UNSPSC #

49659512991

Your price

Regular price

Complete your account to see your prices.
Please fill out the form.

Regular price $0.00 Sale price $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

The Fillet Or Radius Gage Set Includes 16 Leaves, Offering A 5.5-13mm Range In 0.5mm Increments For Accurate Millimeter Readings Of Concave And Convex Curves.

Features

  • Leaves are specially shaped for use in any position at any angle to measure fillets and radii in corners or against shoulders
  • Leaf has eccentric mounting for clearance between leaf and case when gage is opened
  • Includes 16 leaves
  • External and internal radius on each leaf permits both concave and convex surfaces to be measured
  • 5.5-13mm concave and convex millimeter reading

Specifications

Specifications

Depth
. .
Country of Origin
United States
Range (mm)
5.5-13mm
Number of Leaves
16
Height
in
Weight
lbs
Product Type
Multi-Leaf Gages
Number of Gages
16
Width
in
Radius Range (mm)
5.5-13mm
Length
in
