• 1/4 Aro 210 Steel Quick Coupler With 1/4 Hose Barb, Maxquik Model
1 1

The color, size, or style shown in some images may differ from the description. Please carefully check the product description before placing your order.

Topring

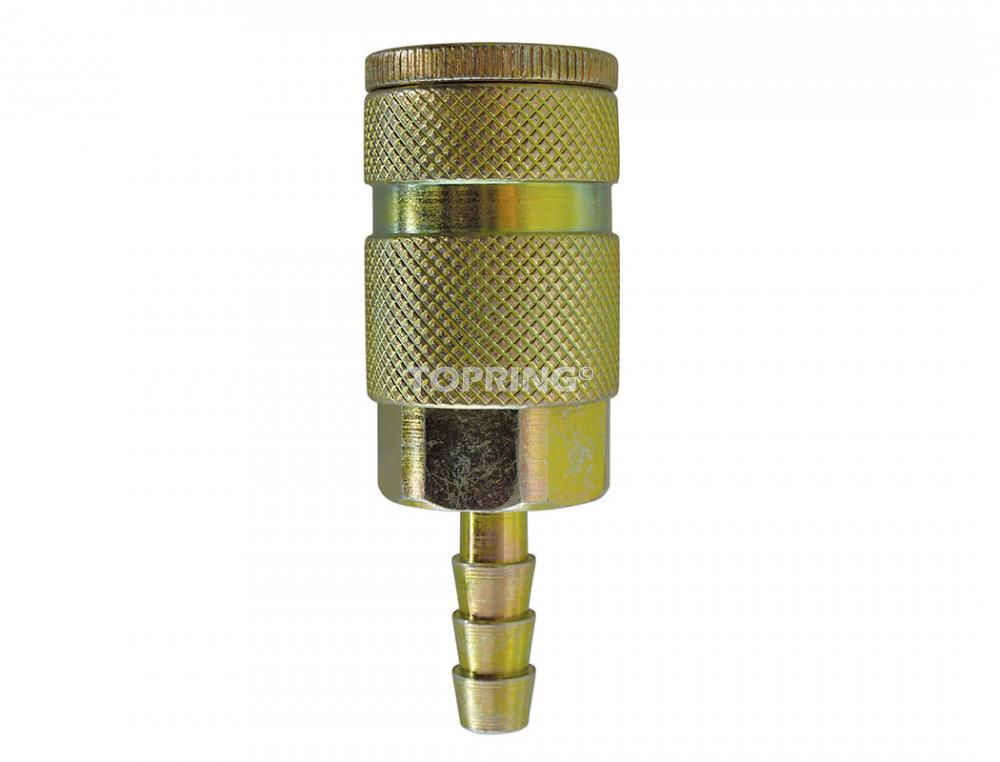

1/4 Aro 210 Steel Quick Coupler With 1/4 Hose Barb, Maxquik Model

1/4 Aro 210 Steel Quick Coupler With 1/4 Hose Barb, Maxquik Model

Mfr. Model #

23.742

|

Item #

10563616

|

UNSPSC #

774679237424

Your price

Complete your account to see your prices.
Please fill out the form.

$0.00 $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

• MAXQUIK model
• Pressurized disconnection
• Rated airflow at 100 PSIG: 28 SCFM
• Maximum inlet pressure: 250 PSI
• Operating temperature: -40 to 107°C
• Zinc-plated steel quick coupler

Features

  • Zinc-plated steel quick coupler
  • Pressurized disconnection
  • MAXQUIK model

Specifications

Specifications

Body, Housing or Frame Finish
Zinc Plated
Disconnect Mode
Pressurized
Rated airflow at 100 PSIG
28 SCFM
Maximum inlet pressure
250 PSI
Maximum Airflow
28 SCFM
Mechanism or Internal Moving Parts Material
Nickel Plated Steel; Zinc Plated Steel
Inlet Connection Subtype
Imperial Regular Barb
Inlet Nominal Size (Imperial)
1/4 in
Color
Gold
Outlet Nominal Size (Imperial)
1/4 in
Compatible Fluids
Air
Outlet Connection Type
Manual
Outlet Connection Subtype
Aro 210 Profile
Maximum Ambient Operating Temperature
107 °C
Maximum Fluid Temperature
107 °C
Maximum Inlet Pressure
250 PSI
Operating temperature
-40 to 107°C
Inlet Connection Type
Barbed
Body, Housing or Frame Material
Steel
Nominal Airflow Rate
28 SCFM
