• 2 1/2 In. Stainless Steel Liquid Filled Pressure Gauge With Glycerin 0 to 2000 PSI, 1/4 (M) NPT, LM
1 1

The color, size, or style shown in some images may differ from the description. Please carefully check the product description before placing your order.

Topring

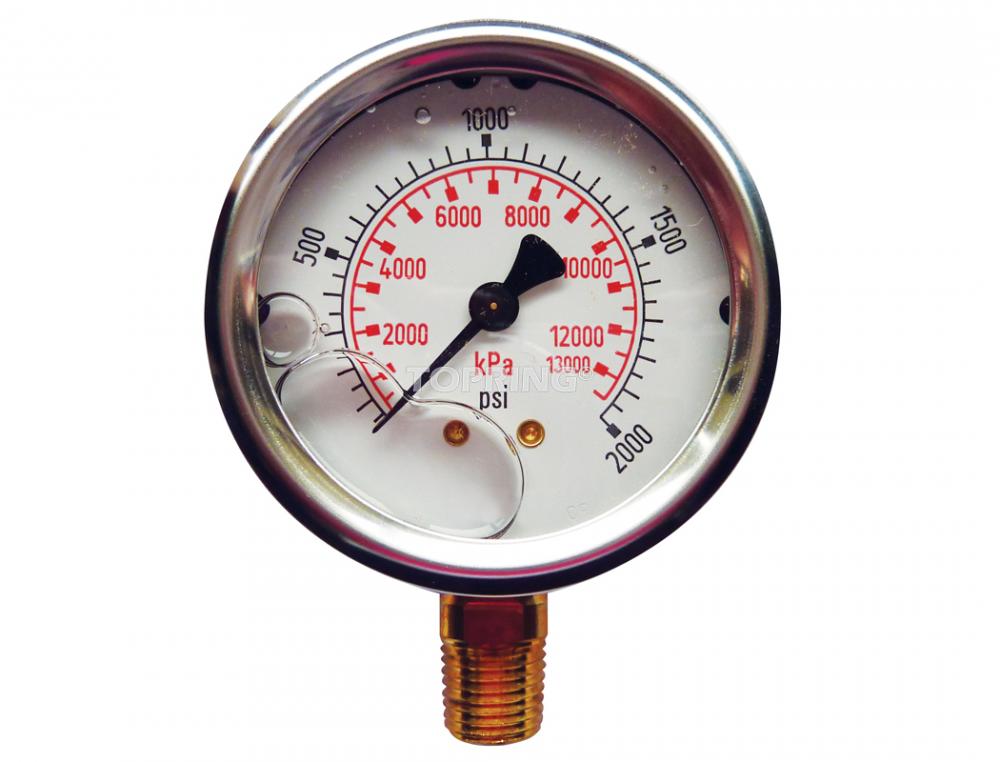

2 1/2 In. Stainless Steel Liquid Filled Pressure Gauge With Glycerin 0 to 2000 PSI, 1/4 (M) NPT, LM

2 1/2 In. Stainless Steel Liquid Filled Pressure Gauge With Glycerin 0 to 2000 PSI, 1/4 (M) NPT, LM

Mfr. Model #

55.658

|

Item #

10098134

|

UNSPSC #

774679556587

Your price

Complete your account to see your prices.
Please fill out the form.

$0.00 $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

• Base Mount (LM)
• Inlet connection: 1/4 (M) NPT
• Operating temperature: -18 to 60°C
• 304 stainless steel housing
• Acrylic lens
• Phosphor bronze drone tube
• Movement: Polished brass surface
• Brass fitting
• Reading accuracy: ±1.6% full scale
• Graduation: PSI in black and kPa in red

Features

  • Acrylic lens
  • Brass fitting
  • Phosphor bronze drone tube
  • 304 stainless steel housing
  • Base Mount (LM)

Specifications

Specifications

Compatible Fluids
Air
Inlet Connection Type
Threaded
Color
Silver
Inlet connection
1/4 (M) NPT
Operating temperature
-18 to 60°C
Mechanism or Internal Moving Parts Material
Phosphor Bronze; Brass
Installation Type
Lower Mount (LM)
Maximum Fluid Temperature
60 °C
Movement
Polished brass surface
Maximum Display Pressure
2000 PSI
Maximum Ambient Operating Temperature
60 °C
Graduation
PSI in black and kPa in red
Inlet Connection Gender
Male
Display Type
Analog
Nominal Diameter
2-1/2 in
With CRN
No
Reading accuracy
±1.6% full scale
Reading Accuracy
+-1.6 % Of Full Scale
Inlet Nominal Size (Imperial)
1/4 in
Body, Housing or Frame Material
Stainless Steel 304
