• 2 1/2 In. Steel Dry Vacuum Gauge 0 to 60 PSI, 1/4 (M) NPT, LM
1 1

The color, size, or style shown in some images may differ from the description. Please carefully check the product description before placing your order.

Topring

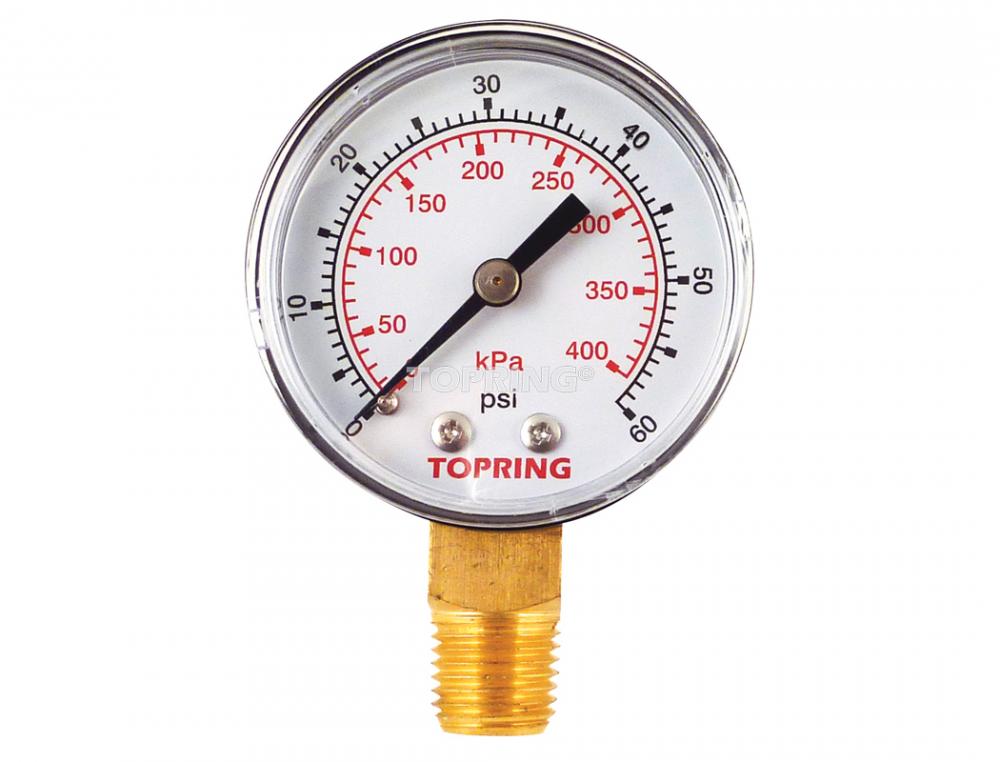

2 1/2 In. Steel Dry Vacuum Gauge 0 to 60 PSI, 1/4 (M) NPT, LM

2 1/2 In. Steel Dry Vacuum Gauge 0 to 60 PSI, 1/4 (M) NPT, LM

Mfr. Model #

55.305

|

Item #

10098124

|

UNSPSC #

774679553050

Your price

Complete your account to see your prices.
Please fill out the form.

$0.00 $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

• Base Mount (LM)
• Inlet connection: 1/4 (M) NPT
• Operating temperature: -18 to 60°C
• Painted steel housing (black)
• Acrylic lens
• Phosphor bronze drone tube
• Movement: Polished brass and nylon surface
• Brass fitting
• Reading accuracy: ±1.6% full scale
• Graduation: PSI in black and kPa in red

Features

  • Base Mount (LM)
  • Painted steel housing (black)
  • Acrylic lens
  • Brass fitting
  • Phosphor bronze drone tube

Specifications

Specifications

Reading Accuracy
+-1.6 % Of Full Scale
Reading accuracy
±1.6% full scale
Inlet connection
1/4 (M) NPT
Color
Silver
Body, Housing or Frame Material
Steel
Installation Type
Lower Mount (LM)
Mechanism or Internal Moving Parts Material
Phosphor Bronze; Brass
Maximum Fluid Temperature
60 °C
Display Type
Analog
Operating temperature
-18 to 60°C
Compatible Fluids
Air
Inlet Nominal Size (Imperial)
1/4 in
Nominal Diameter
2-1/2 in
Maximum Display Pressure
60 PSI
Inlet Connection Type
Threaded
Inlet Connection Gender
Male
Movement
Polished brass and nylon surface
Graduation
PSI in black and kPa in red
With CRN
No
Maximum Ambient Operating Temperature
60 °C
