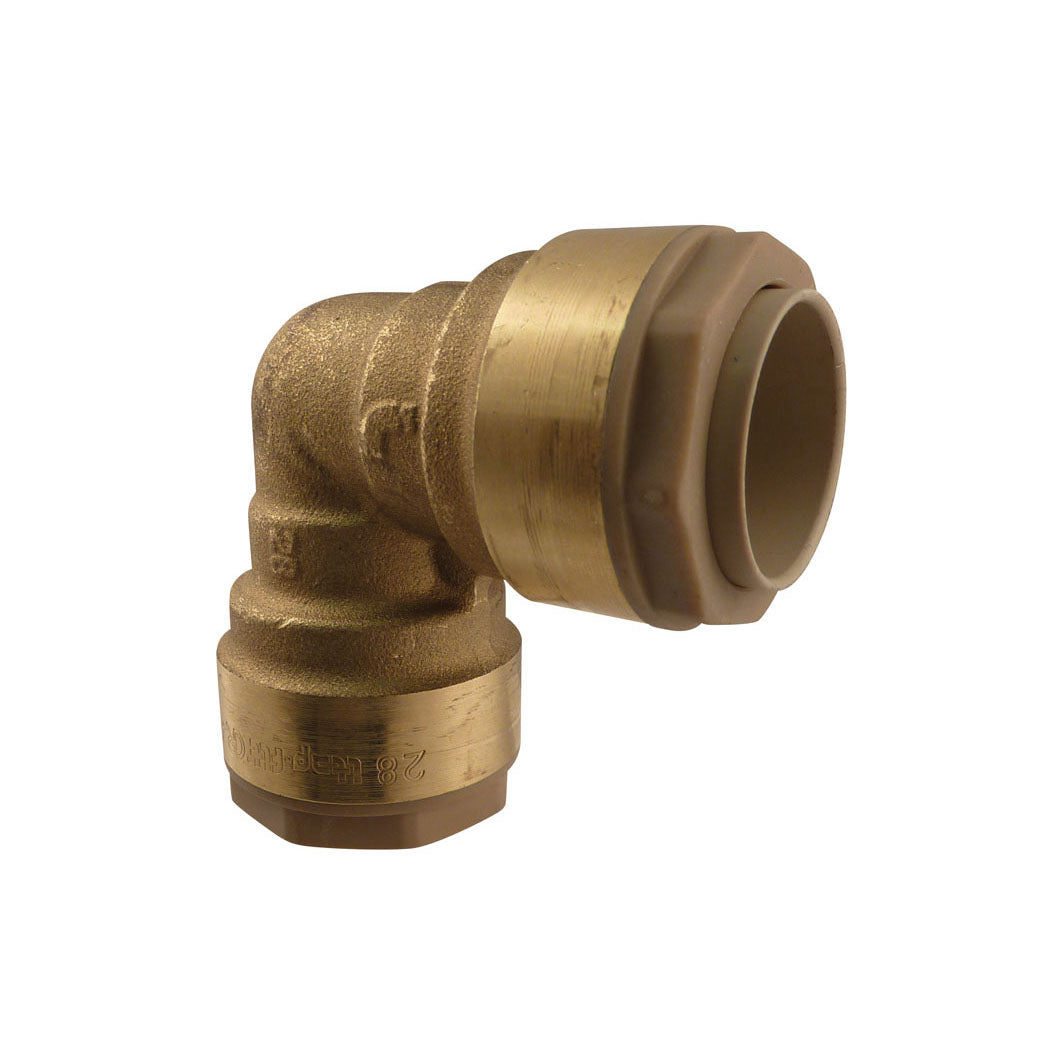

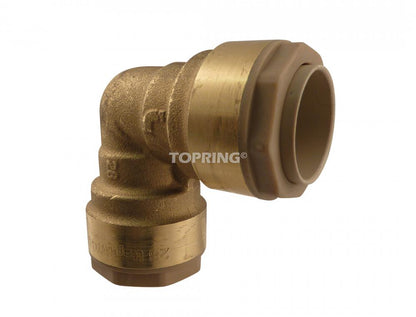

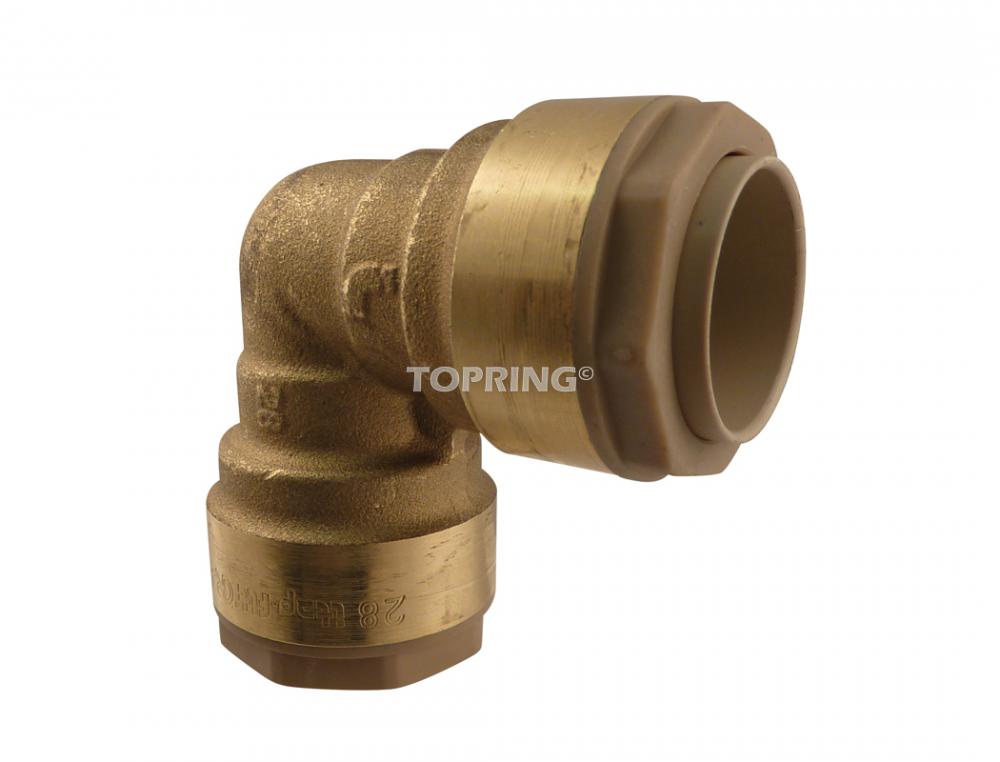

22 mm Brass 90° Elbow Union S07, Quikline Model

22 mm Brass 90° Elbow Union S07, Quikline Model

Mfr. Model #

07.265

|

Item #

10097928

|

UNSPSC #

774679072650

Your price

Complete your account to see your prices.
Please fill out the form.

$0.00 $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

• QUICKLINE model
• S07 Compatible Pipe O.D.: 22 mm
• Push-to-connect fitting
• Release Sleeve: Fibreglass reinforced polyamide composite
• Release Collar: Polyamide
• Gripping Teeth: Stainless steel
• Spacer: Acetal resin
• Seal: Nitrile rubber

Features

  • Push-to-connect fitting
  • QUICKLINE model
  • Release Sleeve: Fibreglass reinforced polyamide composite

Specifications

Specifications

Compatible Fluids
Air; Neutral and Inert Gases
Inlet Nominal Size (Imperial)
3/4 in
S07 Compatible Pipe O.D.
22 mm
Mechanism or Internal Moving Parts Material
Polymer; Stainless Steel; Acetal; Rubber
Color
Gold
With CRN
Yes
Seal
Nitrile rubber
Shape
90° Elbow
Inlet Connection Type
Push-to-Connect Fitting
Body, Housing or Frame Material
Brass
Spacer
Acetal resin
Gripping Teeth
Stainless steel
Release Collar
Polyamide
Compatible With Pipe External Diameters
22 mm
Inlet Quantity
2
Inlet Connection Subtype
Series 07 Fitting
