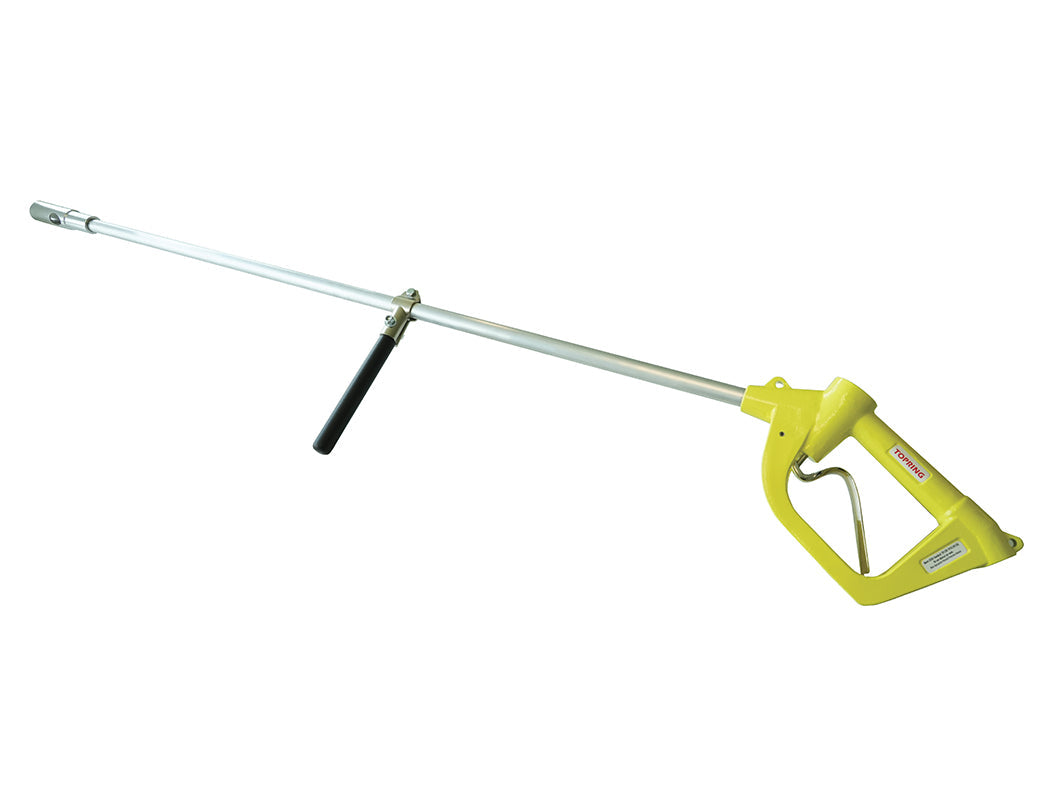

Typhoon air gun extreme performance - 120 cm tube

Technical specifications and certifications
• With 120 cm (48") tube
• Maximum Output Thrust: 13.5 lbf
• Noise Level: 121 dB
• Air Consumption: 185 SCFM
• Maximum Working Pressure: 120 PSI
• Working Temperature: -40 to 65 °C
• Connection: 3/4 (F) NPT

Material(s):
• Body: Aluminum

Features and benefits
• Extremely powerful
• Designed specifically for heavy-duty industrial and construction applications
• Quickly move large volumes of debris by delivering 100 % of the power provided by the air compressor
• Rugged all metal construction
• Adjustable auxiliary handle for two-handed operation
• Ergonomic handle also protects trigger from wear and abuse
• Extended trigger allows full hand operations
• If tip is blocked, static pressure will remain at less than 30 PSI to meet OSHA and other Health and Safety Agencies' standards
Operation and installation
HOW IT WORKS: VENTURI NOZZLE
Airflow speeds up as it passes through the nozzle, drawing in ambient air through two side ports. Increased velocity and volume of air exiting the nozzle boosts available air thrust
Should the tip of the nozzle be blocked, the entire airflow will be diverted through the side openings so the static pressure remains under 30 PSI (meets OSHA standards)

Caution
• It is recommended to use a safety coupler to prevent accidental disconnections

• SAFETY COUPLER
No 22.498: 3/4 INDUSTRIAL • 3/4 (F) NPT

• COMPATIBLE PLUG
No 22.298: 3/4 INDUSTRIAL • 3/4 (M) NPT

Applications
• Paper, textile and steel mills, construction sites, all applications where maximum thrust is required

MFR 60.700

Features

• Spray gun body in aluminum
• TYPHOON model
• Safety spray gun with 120 cm (48 in) nozzle and amplified air jet (Venturi)
