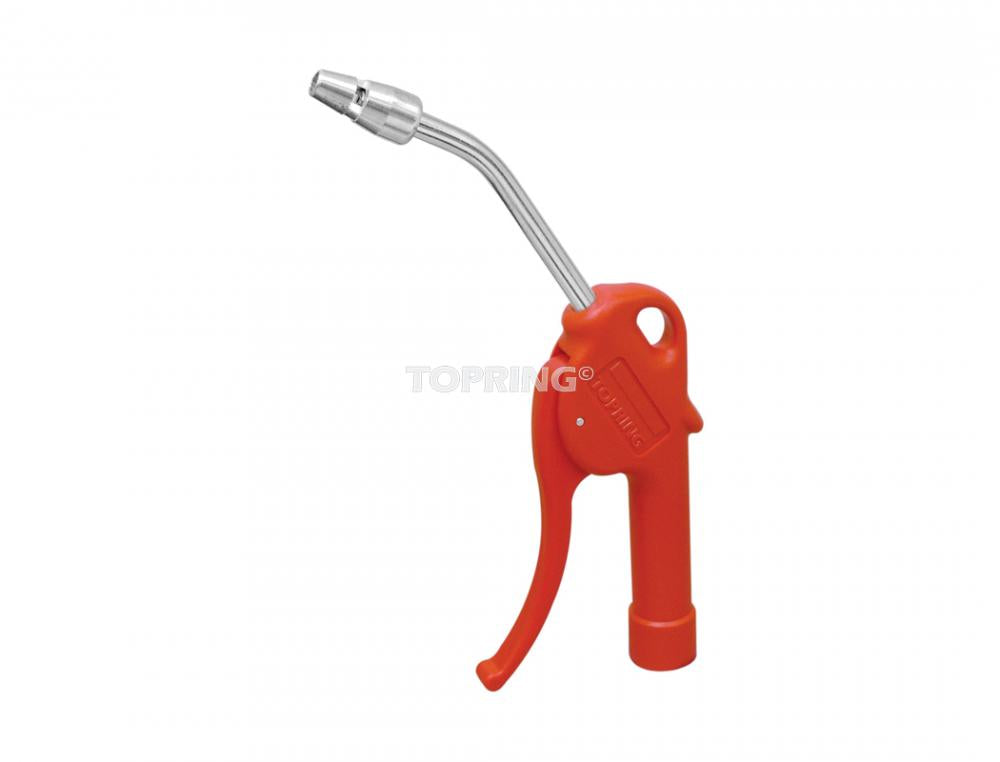

Safety Amplified Air Jet Blow Gun 1/4 NPT With 8 mm x 10 cm Nozzle, Airpro Model (60.386)

Safety Amplified Air Jet Blow Gun 1/4 NPT With 8 mm x 10 cm Nozzle, Airpro Model (60.386)

Mfr. Model #

60.386

|

Item #

10098167

|

UNSPSC #

774679603861

Your price

Regular price

Complete your account to see your prices.
Please fill out the form.

Regular price $0.00 Sale price $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

• AIRPRO model
• Safety blow gun with 8 mm x 10 cm (4 in) nozzle and amplified air jet (Venturi) nozzle tip
• Air Consumption at 87 PSI in SCFM: 8.3 SCFM
• Thrust Force at 116 PSI: 0.72 lbf
• Noise Level at 87 PSI: 83.7 dB
• Maximum Working Pressure: 232 PSI
• Connection: 1/4 (F) NPT
• Maximum Operating Temperature: 80°C
• Blow gun body in Acetal copolymer (POM)

Features

  • Blow gun body in Acetal copolymer (POM)
  • AIRPRO model
  • Safety blow gun with 8 mm x 10 cm (4 in) nozzle and amplified air jet (Venturi) nozzle tip

Specifications

Specifications

Body, Housing or Frame Material
Acetal Copolymer
Connection
1/4 (F) NPT
Maximum Operating Temperature
80°C
Air Consumption at 87 PSI in SCFM
8.3 SCFM
Hose Included
No
Nozzle Type
Amplified air jet
Maximum Fluid Temperature
80 °C
Air Consumption
8.3 SCFM
Inlet Nominal Size (Imperial)
1/4 in
Noise Level
83.7 dB
Inlet Connection Type
Threaded
Thrust Force
0.72 lbf
Color
Red
Maximum Working Pressure
232 PSI
Maximum Inlet Pressure
232 PSI
Maximum Ambient Operating Temperature
80 °C
Nominal Airflow Rate
8.3 SCFM
Nominal Diameter
8 mm
Mechanism or Internal Moving Parts Material
Stainless Steel; Rubber
Inlet Connection Gender
Female
Noise Level at 87 PSI
83.7 dB
Compatible Fluids
Air
Thrust Force at 116 PSI
0.72 lbf
