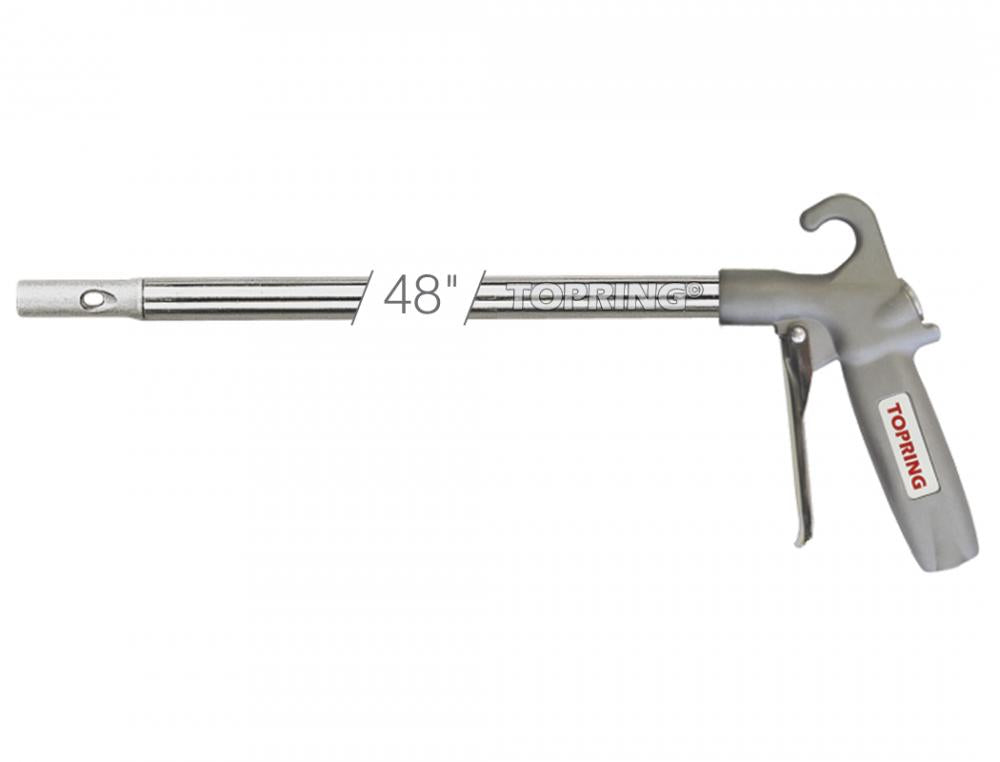

Safety Blow Gun With Amplified Air Jet 1/4 NPT and 120 cm Nozzle with 54 SCFM Air Consumption , Topgun Model

Safety Blow Gun With Amplified Air Jet 1/4 NPT and 120 cm Nozzle with 54 SCFM Air Consumption , Topgun Model

Mfr. Model #

60.472

|

Item #

10566402

|

UNSPSC #

774679604721

Your price

Regular price

Complete your account to see your prices.
Please fill out the form.

Regular price $0.00 Sale price $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

• TOPGUN model
• Safety blow gun with 120 cm (48 in) nozzle amplified air jet (Venturi) tip
• SCFM Air Consumption: 54 SCFM
• Thrust Force: 2.8 lbf
• Noise Level : 108 dB
• Maximum Working Pressure: 120 PSI
• Connection: 1/4 (F) NPT
• Maximum Operating Temperature: 65°C
• Blow gun body and nozzle in aluminum

Features

  • Safety blow gun with 120 cm (48 in) nozzle amplified air jet (Venturi) tip
  • Blow gun body and nozzle in aluminum
  • TOPGUN model

Specifications

Specifications

Compatible Fluids
Air
Inlet Nominal Size (Imperial)
1/4 in
Maximum Operating Temperature
65°C
Maximum Ambient Operating Temperature
65 °C
Body, Housing or Frame Material
Die Cast Aluminum
Mechanism or Internal Moving Parts Material
Stainless Steel; Rubber; Brass
SCFM Air Consumption
54 SCFM
Maximum Working Pressure
120 PSI
Connection
1/4 (F) NPT
Maximum Fluid Temperature
65 °C
Thrust Force
2.8 lbf
Inlet Connection Type
Threaded
Air Consumption
54 SCFM
Maximum Inlet Pressure
120 PSI
Noise Level
108 dB
Inlet Connection Gender
Female
Nozzle Type
Amplified air jet
Hose Included
No
Nominal Airflow Rate
29 SCFM
Color
Silver
