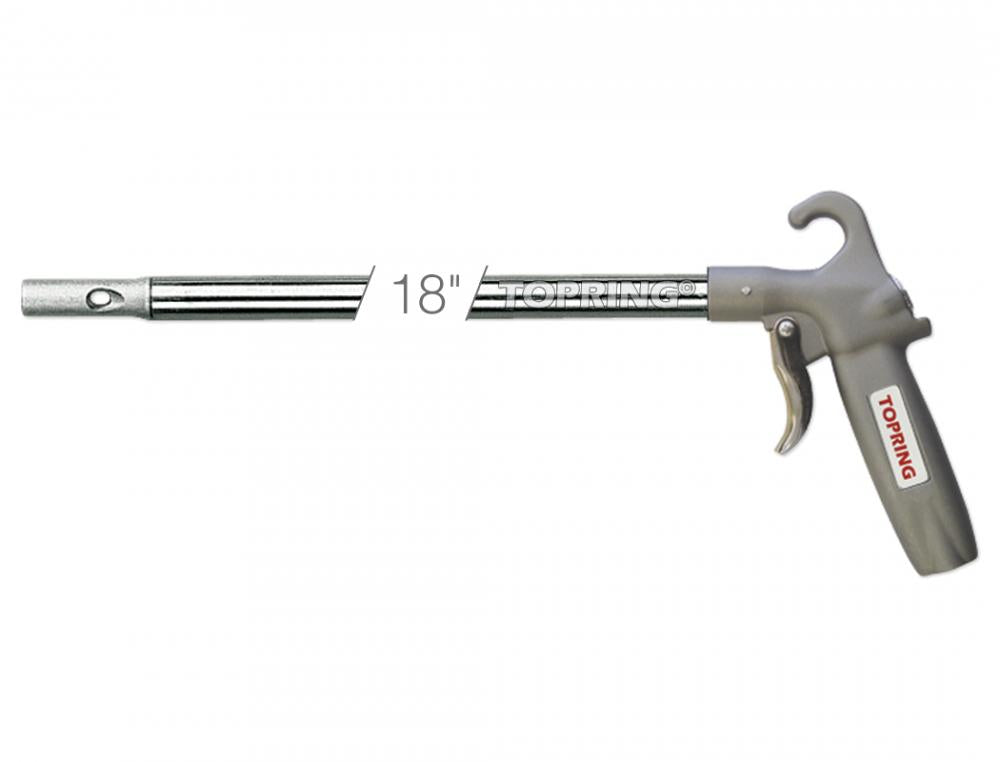

Safety Blow Gun With Amplified Air Jet 1/4 NPT and 45 cm Nozzle, Topgun Model

Safety Blow Gun With Amplified Air Jet 1/4 NPT and 45 cm Nozzle, Topgun Model

Mfr. Model #

60.422

|

Item #

10566380

|

UNSPSC #

774679604226

Your price

Regular price

Complete your account to see your prices.
Please fill out the form.

Regular price $0.00 Sale price $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

• TOPGUN model
• Safety blow gun with 45 cm (18 in) nozzle and amplified air jet (Venturi) nozzle tip
• SCFM Air Consumption: 34 SCFM
• Thrust Force: 2 lbf
• Noise Level : 107 dB
• Maximum Working Pressure: 120 PSI
• Connection: 1/4 (F) NPT
• Maximum Operating Temperature: 65°C
• Blow gun body and nozzle in aluminum

Features

  • TOPGUN model
  • Blow gun body and nozzle in aluminum
  • Safety blow gun with 45 cm (18 in) nozzle and amplified air jet (Venturi) nozzle tip

Specifications

Specifications

Inlet Nominal Size (Imperial)
1/4 in
Nominal Airflow Rate
29 SCFM
Maximum Ambient Operating Temperature
65 °C
Connection
1/4 (F) NPT
Hose Included
No
Maximum Inlet Pressure
120 PSI
Inlet Connection Type
Threaded
Noise Level
107 dB
SCFM Air Consumption
34 SCFM
Body, Housing or Frame Material
Die Cast Aluminum
Mechanism or Internal Moving Parts Material
Stainless Steel; Rubber; Brass
Color
Silver
Compatible Fluids
Air
Air Consumption
34 SCFM
Maximum Fluid Temperature
65 °C
Nozzle Type
Amplified air jet
Thrust Force
2 lbf
Maximum Working Pressure
120 PSI
Inlet Connection Gender
Female
Maximum Operating Temperature
65°C
