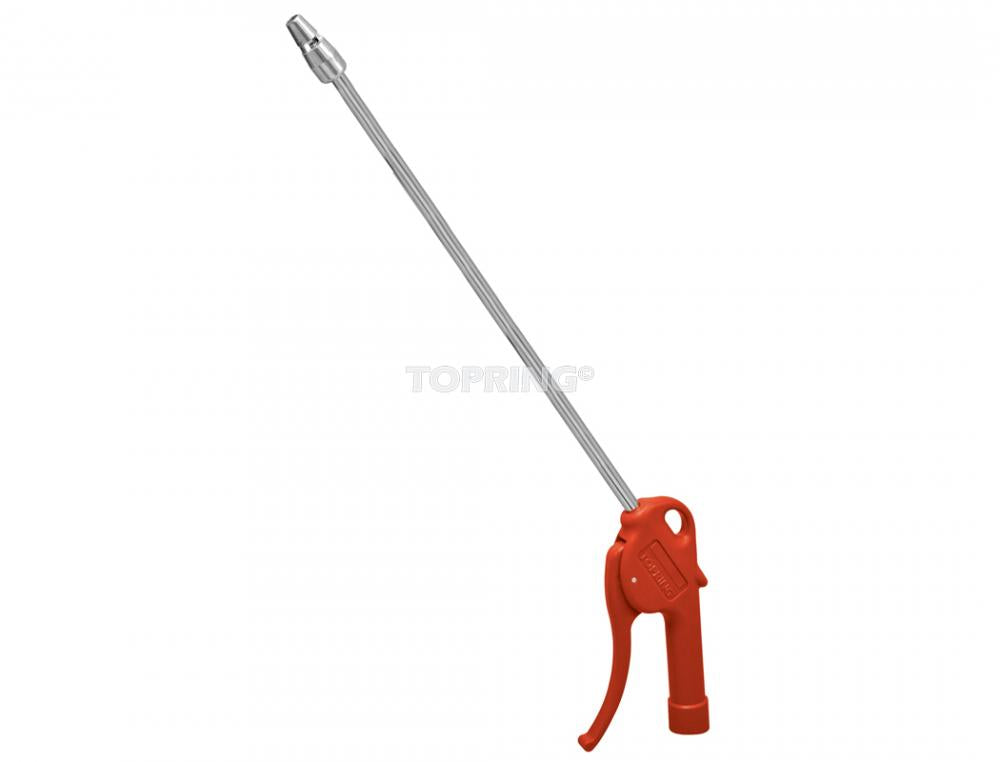

Safety Blow Gun With Amplified Air Jet and 8 mm x 100 cm Nozzle, Airpro Model

Safety Blow Gun With Amplified Air Jet and 8 mm x 100 cm Nozzle, Airpro Model

Mfr. Model #

60.384

|

Item #

10566349

|

UNSPSC #

774679603847

Your price

Regular price

Complete your account to see your prices.
Please fill out the form.

Regular price $0.00 Sale price $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

• AIRPRO model
• Safety blow gun with 8 mm x 100 cm (40 in) nozzle and amplified air jet (Venturi) nozzle tip
• Air Consumption at 87 PSI in SCFM: 8.3 SCFM
• Thrust Force at 116 PSI: 0.72 lbf
• Noise Level at 87 PSI: 83.7 dB
• Maximum Working Pressure: 232 PSI
• Connection: 1/4 (F) NPT
• Maximum Operating Temperature: 80°C
• Blow gun body in Acetal copolymer (POM)

Features

  • Safety blow gun with 8 mm x 100 cm (40 in) nozzle and amplified air jet (Venturi) nozzle tip
  • AIRPRO model
  • Blow gun body in Acetal copolymer (POM)

Specifications

Specifications

Thrust Force
0.72 lbf
Inlet Nominal Size (Imperial)
1/4 in
Air Consumption
8.3 SCFM
Noise Level
83.7 dB
Thrust Force at 116 PSI
0.72 lbf
Nozzle Type
Amplified air jet
Compatible Fluids
Air
Mechanism or Internal Moving Parts Material
Stainless Steel; Rubber
Maximum Ambient Operating Temperature
80 °C
Body, Housing or Frame Material
Acetal Copolymer
Color
Red
Inlet Connection Type
Threaded
Air Consumption at 87 PSI in SCFM
8.3 SCFM
Maximum Working Pressure
232 PSI
Noise Level at 87 PSI
83.7 dB
Maximum Inlet Pressure
232 PSI
Maximum Operating Temperature
80°C
Connection
1/4 (F) NPT
Nominal Airflow Rate
8.3 SCFM
Inlet Connection Gender
Female
Hose Included
No
Nominal Diameter
8 mm
Maximum Fluid Temperature
80 °C
