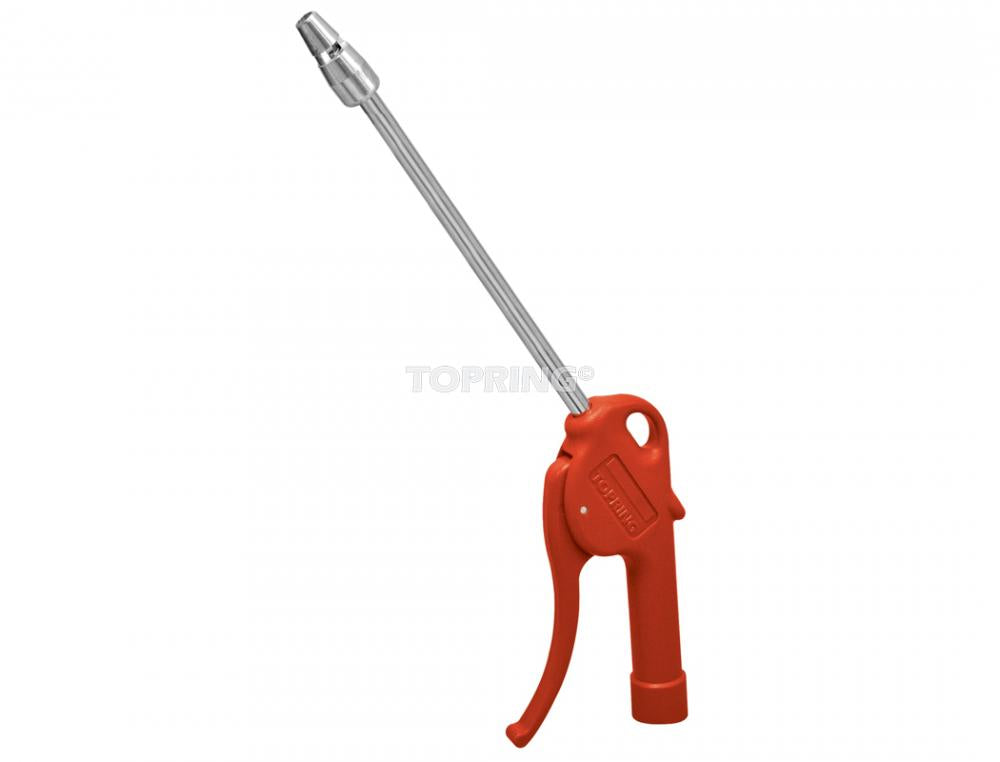

Safety Blow Gun With Amplified Air Jet and 8 mm x 50 cm Nozzle, Airpro Model

Safety Blow Gun With Amplified Air Jet and 8 mm x 50 cm Nozzle, Airpro Model

Mfr. Model #

60.383

|

Item #

10566348

|

UNSPSC #

774679603830

Your price

Regular price

Complete your account to see your prices.
Please fill out the form.

Regular price $0.00 Sale price $0.00
Sale Sold out

Please contact your JRV advisor for more information

Shipping times are based on information available at the time of ordering and are subject to change.

Product information

• AIRPRO model
• Safety blow gun with 8 mm x 50 cm (12 in) nozzle and amplified air jet (Venturi) nozzle tip
• Air Consumption at 87 PSI in SCFM: 8.3 SCFM
• Thrust Force at 116 PSI: 0.72 lbf
• Noise Level at 87 PSI: 83.7 dB
• Maximum Working Pressure: 232 PSI
• Connection: 1/4 (F) NPT
• Maximum Operating Temperature: 80°C
• Blow gun body in Acetal copolymer (POM)

Features

  • AIRPRO model
  • Safety blow gun with 8 mm x 50 cm (12 in) nozzle and amplified air jet (Venturi) nozzle tip
  • Blow gun body in Acetal copolymer (POM)

Specifications

Specifications

Noise Level at 87 PSI
83.7 dB
Maximum Ambient Operating Temperature
80 °C
Nozzle Type
Amplified air jet
Air Consumption at 87 PSI in SCFM
8.3 SCFM
Nominal Airflow Rate
8.3 SCFM
Noise Level
83.7 dB
Maximum Inlet Pressure
232 PSI
Inlet Connection Gender
Female
Hose Included
No
Connection
1/4 (F) NPT
Compatible Fluids
Air
Thrust Force at 116 PSI
0.72 lbf
Color
Red
Maximum Working Pressure
232 PSI
Maximum Operating Temperature
80°C
Air Consumption
8.3 SCFM
Maximum Fluid Temperature
80 °C
Inlet Connection Type
Threaded
Inlet Nominal Size (Imperial)
1/4 in
Body, Housing or Frame Material
Acetal Copolymer
Thrust Force
0.72 lbf
Mechanism or Internal Moving Parts Material
Stainless Steel; Rubber
Nominal Diameter
8 mm
