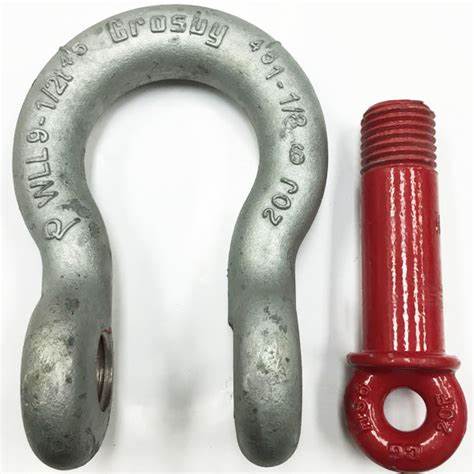

Crosby G-209 1-1/8" Screw Pin Anchor Shackle – 9.5 Ton
Crosby G-209 1-1/8" Screw Pin Anchor Shackle – 9.5 Ton
Mfr. Model #
29020108
|Item #
10024873
Your price
Complete your account to see your prices.
Please fill out the form.
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.
The Crosby G-209 1-1/8" screw pin anchor shackle is built for heavy-duty lifting and rigging tasks. It is made from forged, quenched, and tempered carbon steel and finished with hot-dip galvanizing for superior corrosion resistance. The alloy steel screw pin is painted red for quick visual identification. This shackle complies with ASME B30.26 and Federal Specification RR-C-271 for reliable performance in industrial and construction settings.
Key Features:
Size: 1-1/8 inch
Working Load Limit (WLL): 9.5 tons (19,000 lbs)
Material: Forged carbon steel, quenched and tempered
Finish: Hot-dip galvanized
Pin: Red-painted screw pin, alloy steel
Safety Factor: 6:1
Standards: ASME B30.26, RR-C-271 compliant
Use: Ideal for lifting, rigging, marine, and heavy-load applications.
