Dormer Pramet

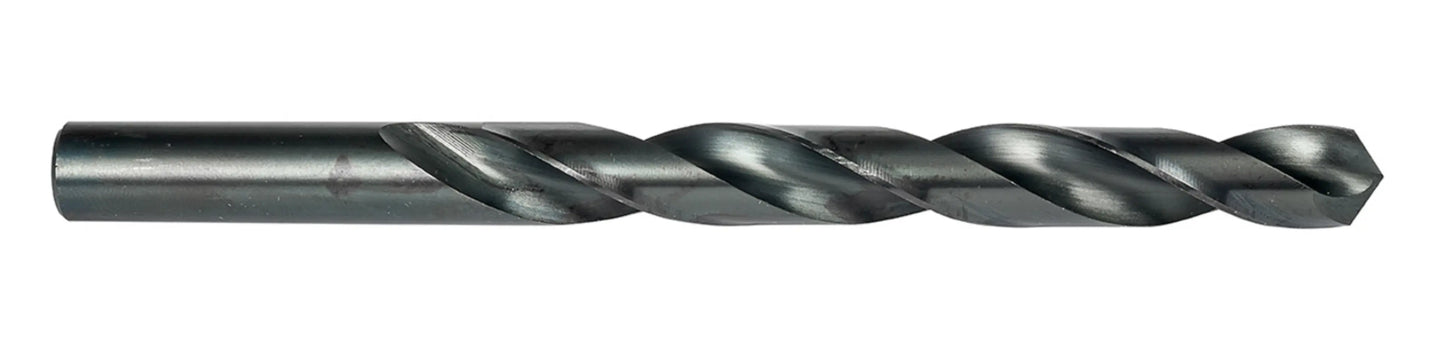

Drill Bit, Jobber, Hss, 118°, 3/8 In, Nas907 Type A, Steam Tempered
Drill Bit, Jobber, Hss, 118°, 3/8 In, Nas907 Type A, Steam Tempered
Mfr. Model #
5997568
|Item #
10018307
Your price
Complete your account to see your prices.
Please fill out the form.
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.
Product information
Drescription:Jobber length drill with straight shank, diameter 0.3750" (3/8) with an overall length of 5" and flute length of 3.5/8" according to NAS907 Type A standard with 118° general purpose split point, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast ironFeatures:Steam Tempered (Steam Oxide) Surface TreatmentHigh Speed Steel Tool MaterialNAS907 – Aerospace Drill Standards4×D Usable Tool Depth to Diameter RatioDrill Point 118°Cylindrical Shank / Straight ShankRight Hand Rotation / CuttingSpecifications:Connection diameter - inch (DCON MS): 0.375 inchCutting diameter - fractional inch (DC): 3/8Cutting diameter - inch (DC): 0.375 inchLength chip flute - fractional inch (LCF): 3.5/8Length chip flute - inch (LCF): 3.625 inchOverall length - fractional inch (OAL): 5"Overall length - inch (OAL): 5 inchNet weight - grams: 48Gross weight - grams: 48
MFR 5997568
