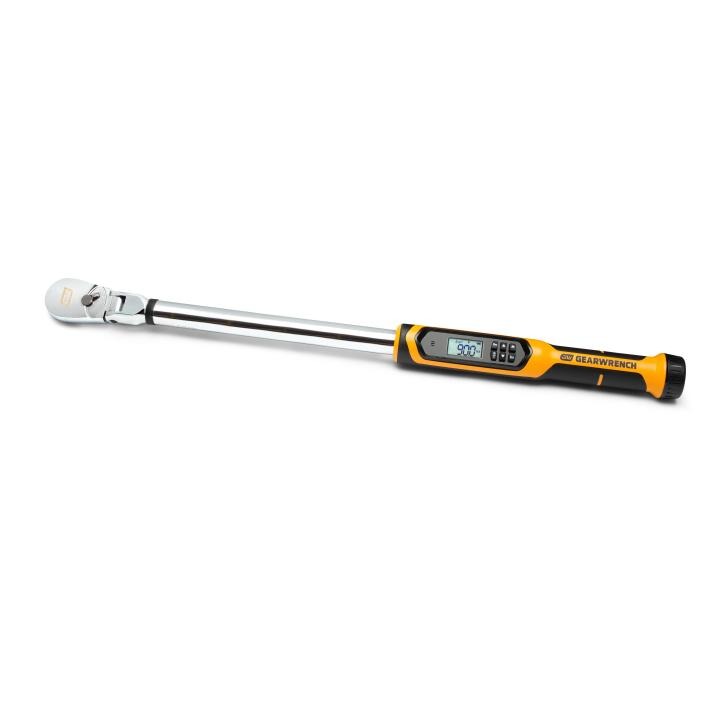

Gearwrench, 1/2" Flex Head Electronic Torque Wrench with Angle 25-250 ft/lb

The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.Features

+/-2% CW and +/-3% CCW Torque Accuracy between 20% and 100% of wrench scale. +/-1% Angle Accuracy

72-tooth thin-head flex ratchet provides 5° swing arc for improved access in tight spaces

Digitally tracks torque and angle measurements. Handle vibrates, beeps, and LCD screen flashes as target torque is achieved

3 function modes feature peak torque, angle, and peak angle for additional versatility

5 torque measurement units provide a readout in ft-lb, in-lb, Nm, Kg-m, and Kg-cm

10 available preset torque settings allow you to quickly access frequently repeated applications

Dual durometer handle provides secure grip in tough conditions

Requires 2 AA batteries (not included)

Includes a blow molded case

Meets or exceeds ASME B107.28M standards and specifications

1 year limited warranty; calibration accuracy warrantied for 90 days

Specifications

ASME Specification: B107.28M, B107.300

Type: Electronic

Size: 5° - 999° Angle

Drive Tang Size: 1/2 in

Tooth Count: 72

Flexible: Yes

Knurled: Yes

Finish: Full Polish Chrome

Material: Alloy Steel

Overall Length: 25.0 in

Head Thickness: 0.84 in

Head Thickness Less Tang: 0.74 in

Head Length: 2.65 in

Head Width: 1.58 in

Overall Height: 1.75 in

Overall Width: 1.75 in

Torque Range In. Lbs.: 301 - 3010 in/lb

Torque Range cm-kg: 350 - 3500 kg/cm

Minimum Torque (Primary Scale): 25 ft/lb

Maximum Torque (Primary Scale): 250 ft/lb

Primary Scale Increments: 0.1 ft/lb

Minimum Torque (Alt Scale): 34 Nm

Maximum Torque (Alt Scale): 340 Nm

Alt Scale Increments: 0.1 Nm

Torque Accuracy (20-100% of Full Range): +/-2% Clockwise

Rechargeable: No

Battery Type: AA

Batteries Included: No

Certified: No

Tether Ready: No

Included Storage: Blow Mold Case

Warranty: 90 Days Calibration / 1 Year on Parts

Weight (Catalog): 3.008 lb

UPC: 099575850790

MFR 85079
