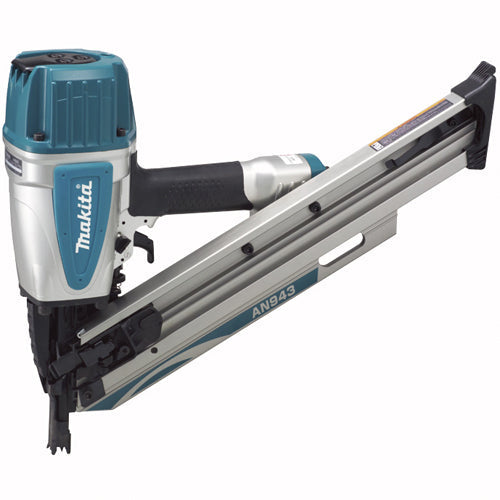

34° Clipped Head Framing Strip Nailer
34° Clipped Head Framing Strip Nailer
Mfr. Model #
AN943
|Item #
10414683
Your price
Complete your account to see your prices.
Please fill out the form.
Couldn't load pickup availability
Please contact your JRV advisor for more information
Shipping times are based on information available at the time of ordering and are subject to change.
34° Clipped Head Framing Strip Nailer
This 34° clipped head framing strip nailer is designed for enhanced power and efficiency with a large capacity air chamber. It features a 3-mode operation (sequential, bump, and lock-off) for versatility. The nailer provides 9 depth nailing settings in 1/16" increments with an adjustment knob for precision. A convenient collapsible rafter hook allows for easy storage, and the nose piece with sure-grip spikes prevents slipping during use. The dry fire prevention system prolongs the life of the tool, and the silent sheet reduces noise when disconnecting the coupler.
Key Features:
- Large capacity air chamber for increased power
- 3-mode operation: sequential, bump, lock-off
- 9 depth nailing settings in 1/16" increments with adjustment knob
- Convenient collapsible rafter hook
- Nose piece with sure-grip spikes prevents slipping
- Dry fire prevention system prolongs tool life
- Silent sheet reduces noise when disconnecting coupler
Maximum Capacities:
- Nail type: .113" - .131" 34° clipped head
- Nail size: 2" - 3-1/2" 34° clipped head
- Operating air pressure: 65-120 PSIG
- Magazine capacity: 60 - 84 nails
- Vibration level: 3.5 m/s²
- Noise level: 92 dB(A)
- Dimensions (L x W x H): 17-7/8" x 4-1/4" x 14-3/8" (455mm x 109mm x 365mm)
- Net weight: 8.8 lbs (4.0kg)
Included Accessories:
- Hook assembly (122742-7)
- Oil supply (181434-7)
